US11044221B2: Integration Of Devices Through A Social Networking Platform
In plain language
Intelligent Device Collaboration for Social Networking Benefits
Discover the benefits of social networking in revolutionizing device interactions with our inventive system
Drawings
23 sheets as filed; open one to see it at full size. A figure drawn across its sheet is turned to read upright.
What the drawings show
- The features of the disclosed embodiments may become apparent from the following detailed description taken in conjunction with the accompanying drawings showing illustrative embodiments herein, in which:

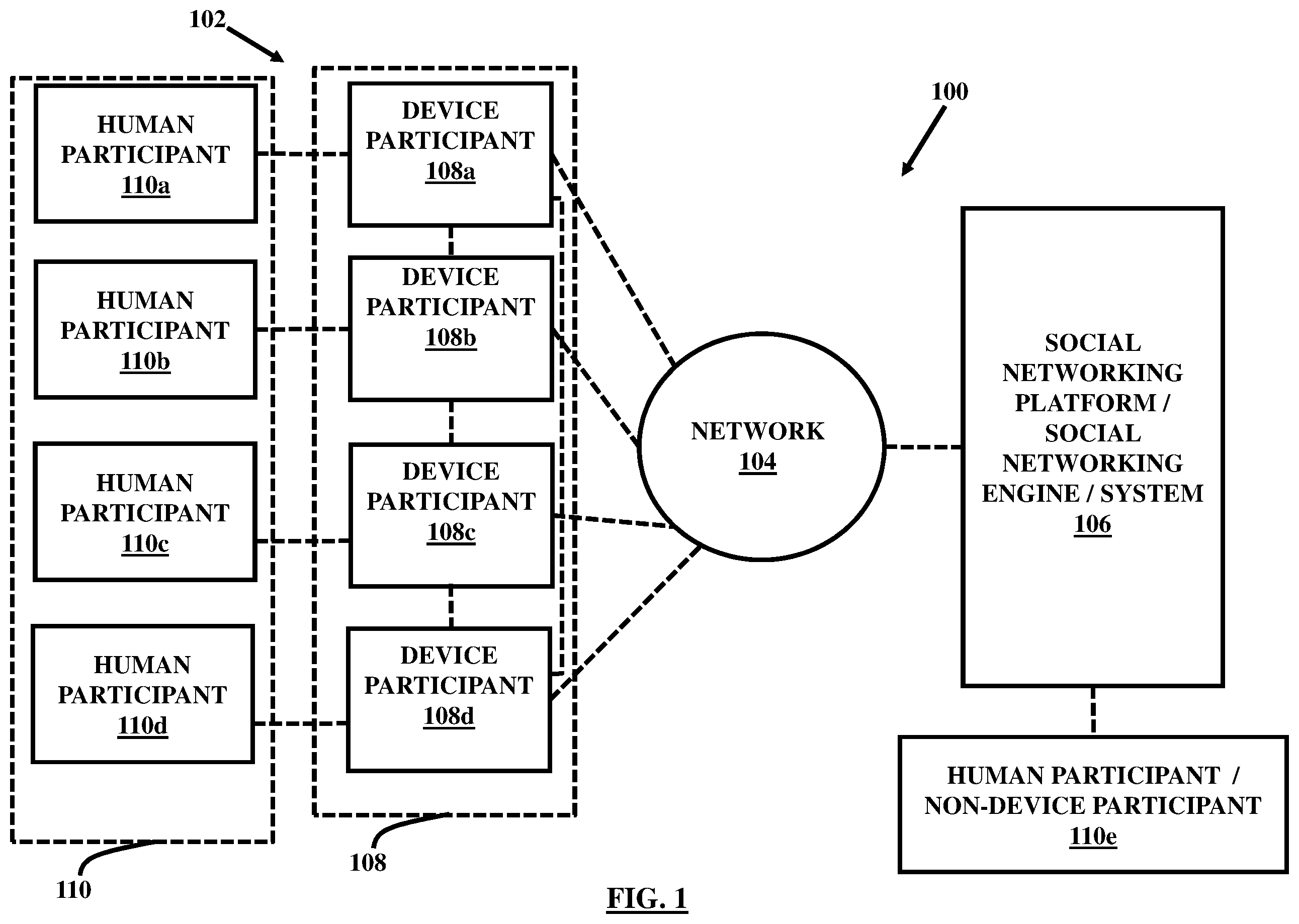

- FIG. 1 illustrates an exemplary ecosystem of participants interconnected over a socially aware network through a social networking platform, in an embodiment of an embodiment herein.

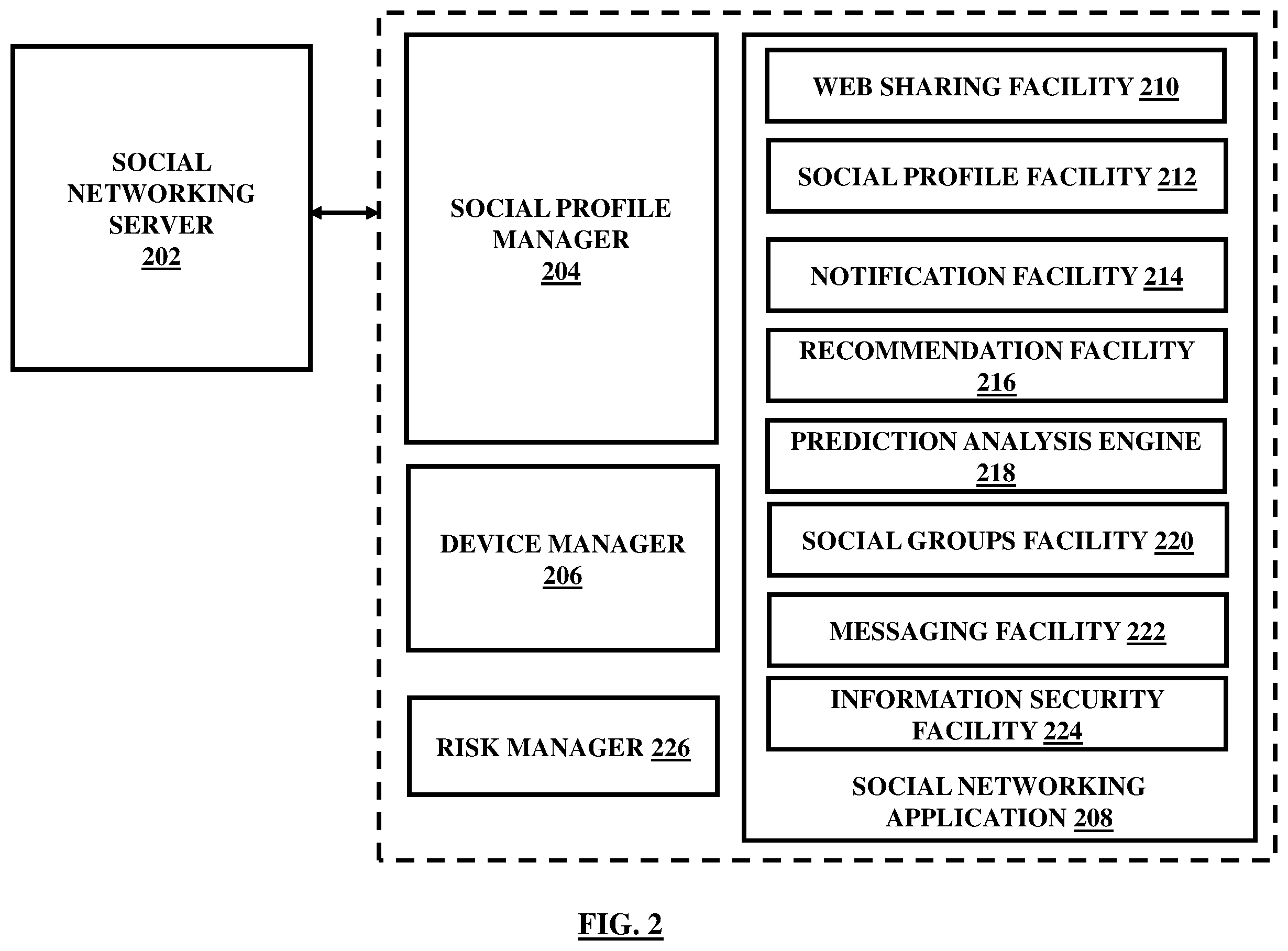

- FIG. 2 illustrates a social networking server for implementing a social networking platform in accordance with an embodiment herein;

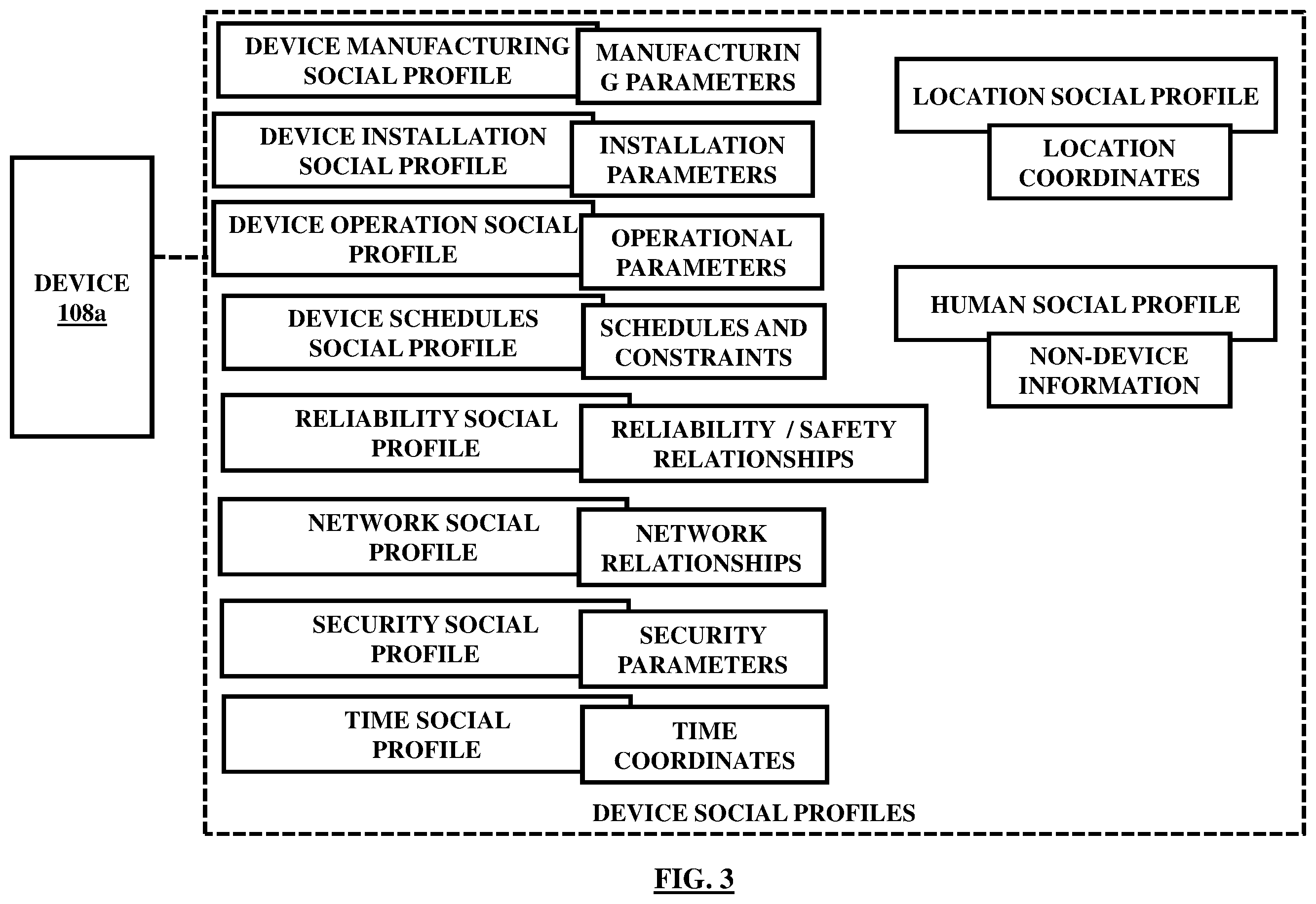

- FIG. 3 illustrates an exemplary embodiment of social profiles of devices and non-device participants in an embodiment herein;

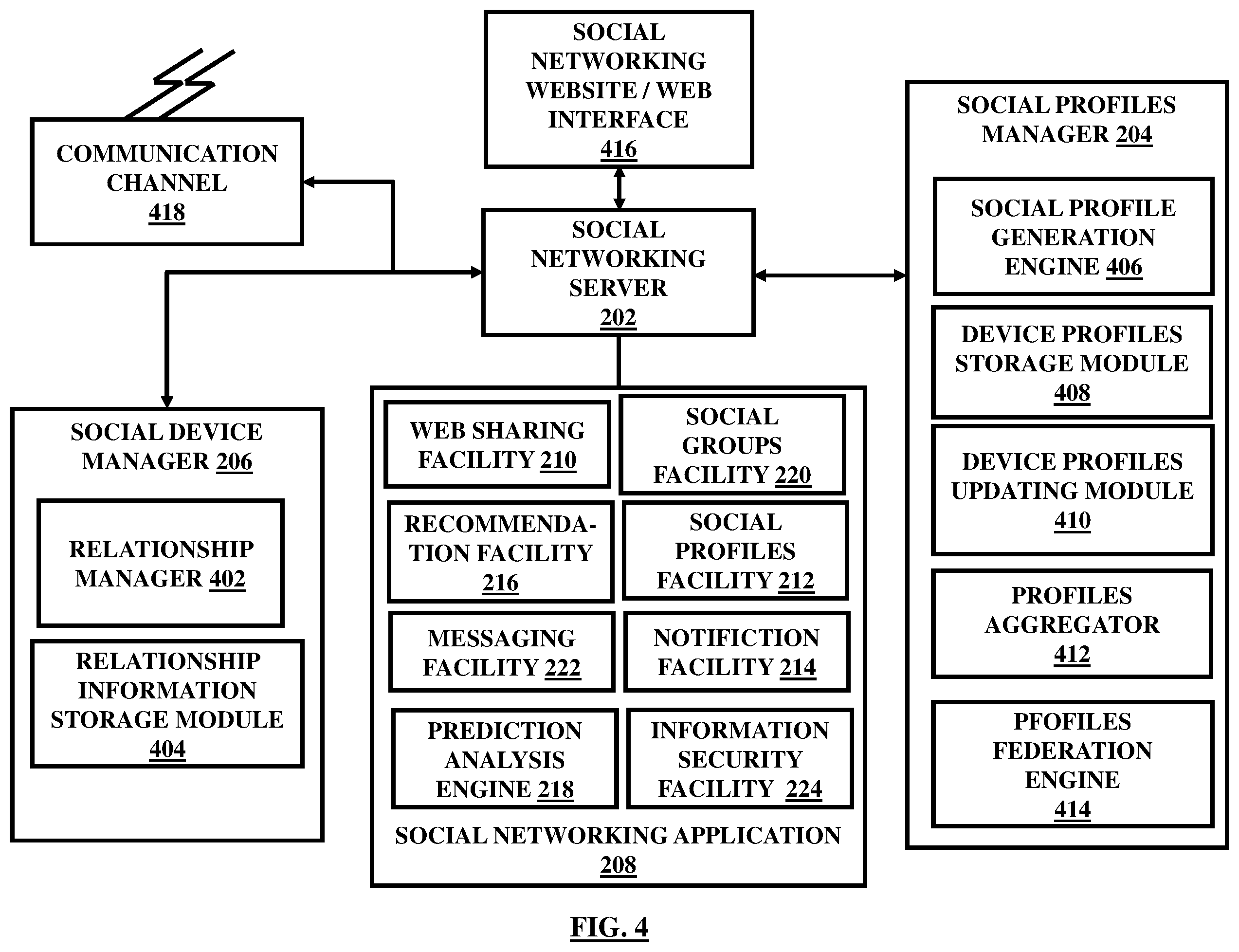

- FIG. 4 illustrates a social networking server among other things in an embodiment herein;

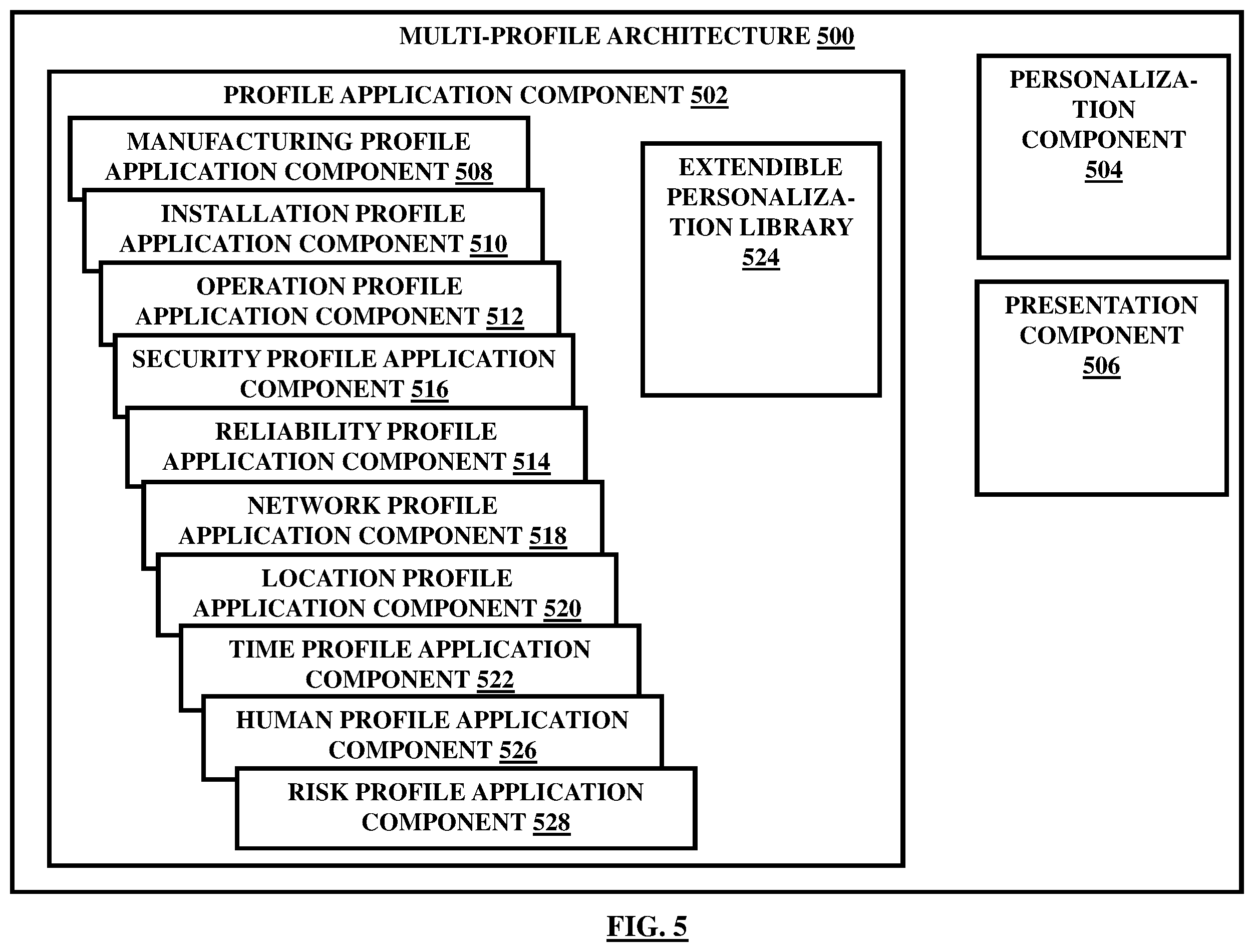

- FIG. 5 illustrates a multi-profile architecture for creating device specific multiple social profiles in accordance with an embodiment herein;

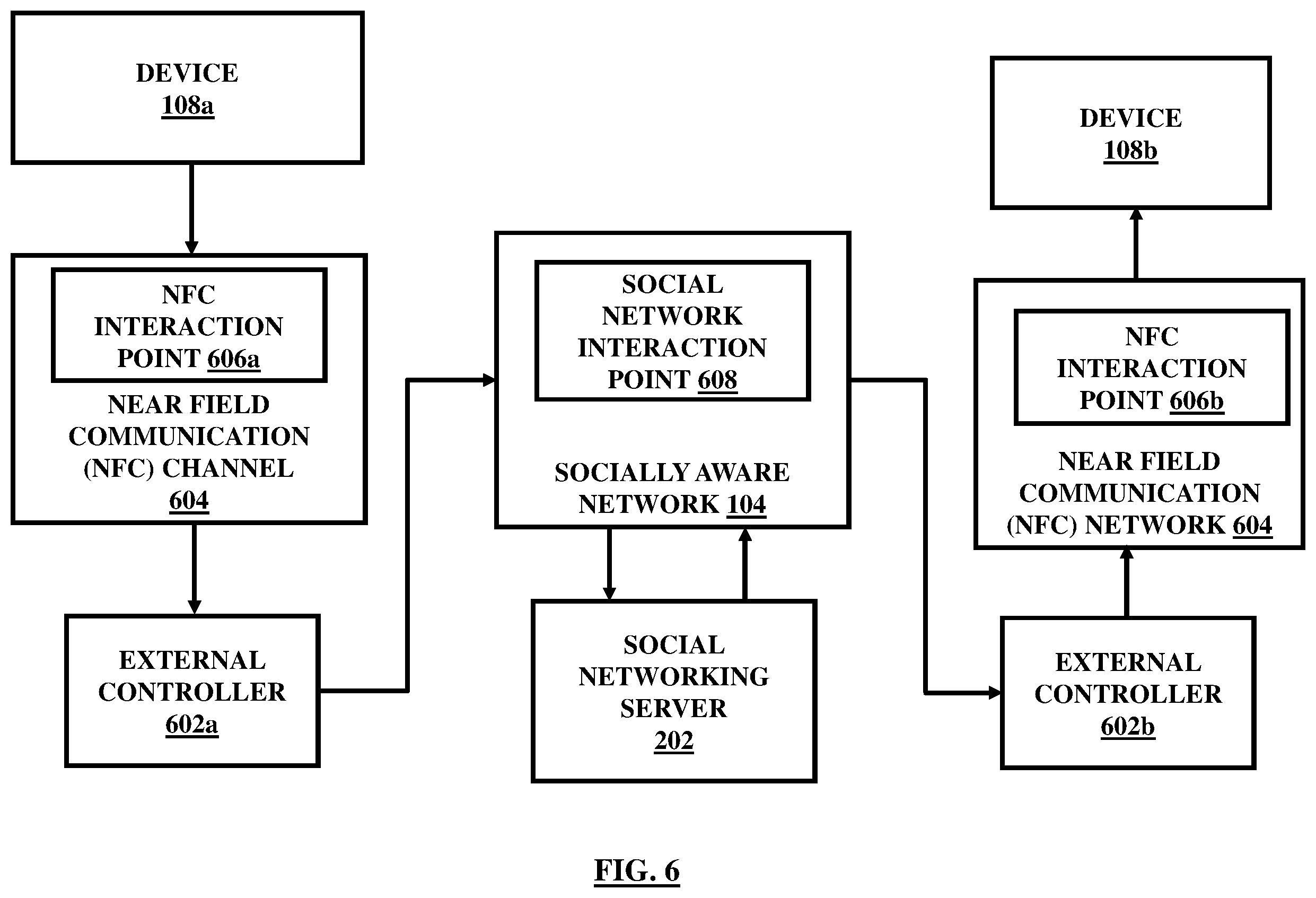

- FIG. 6 illustrates a communication network for exchange of social content between devices in accordance with an embodiment herein;

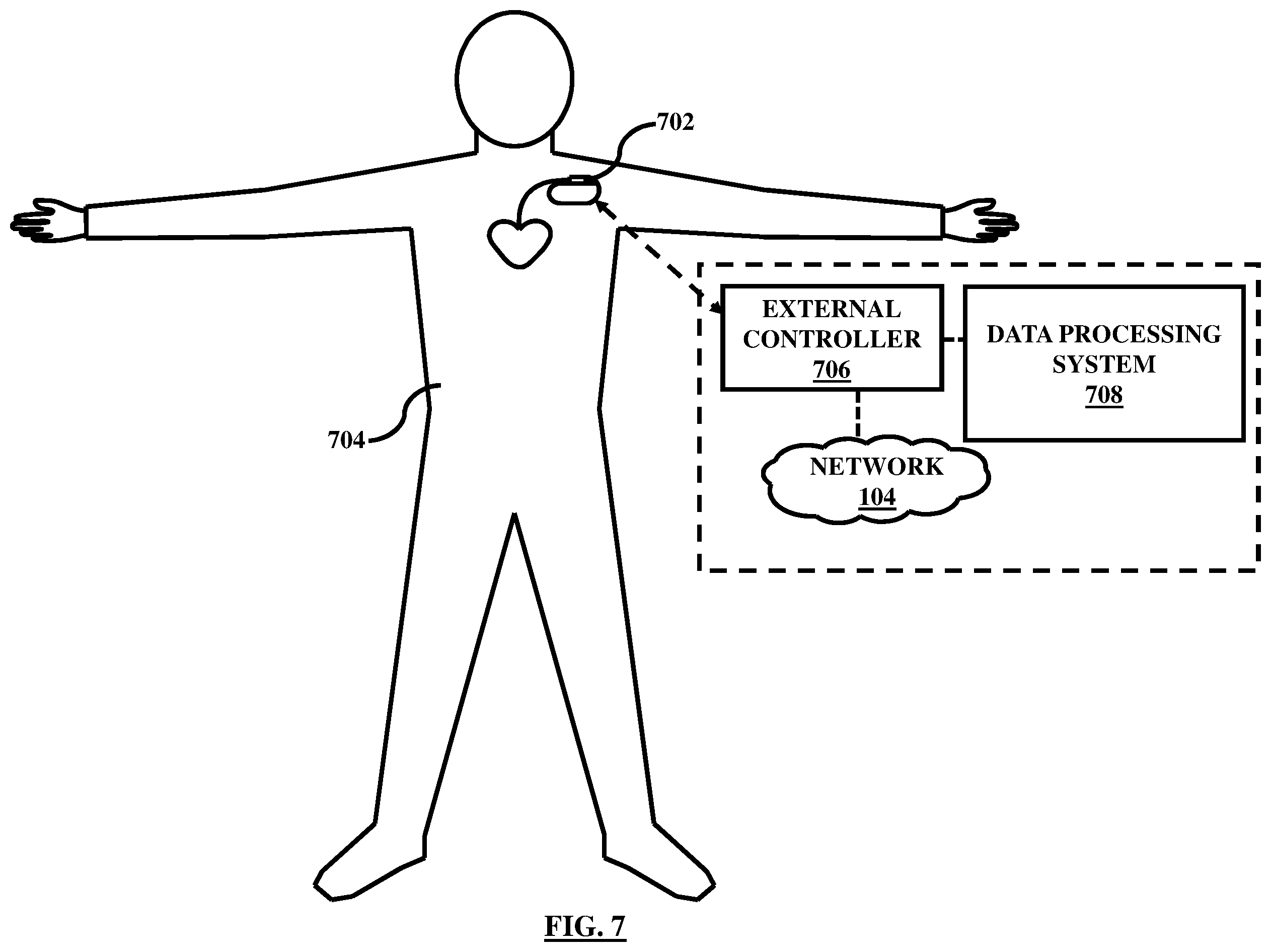

- FIG. 7 illustrates an implantable medical device (IMD) fitted inside a body of a patient and communicatively coupled to a server for social networking service in accordance with an embodiment herein;

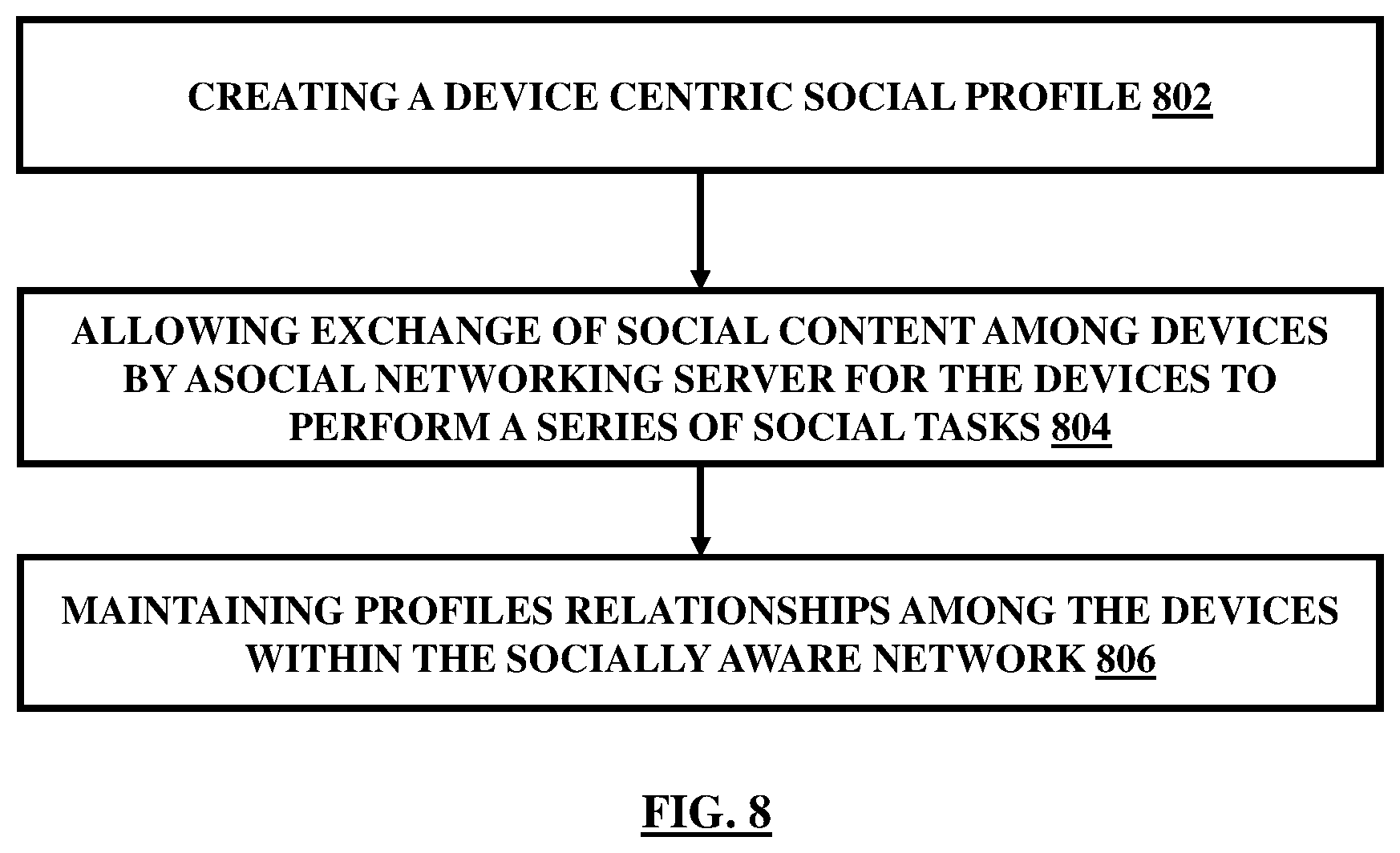

- FIG. 8 illustrates a method flowchart for integration of a plurality of participants in an embodiment herein;

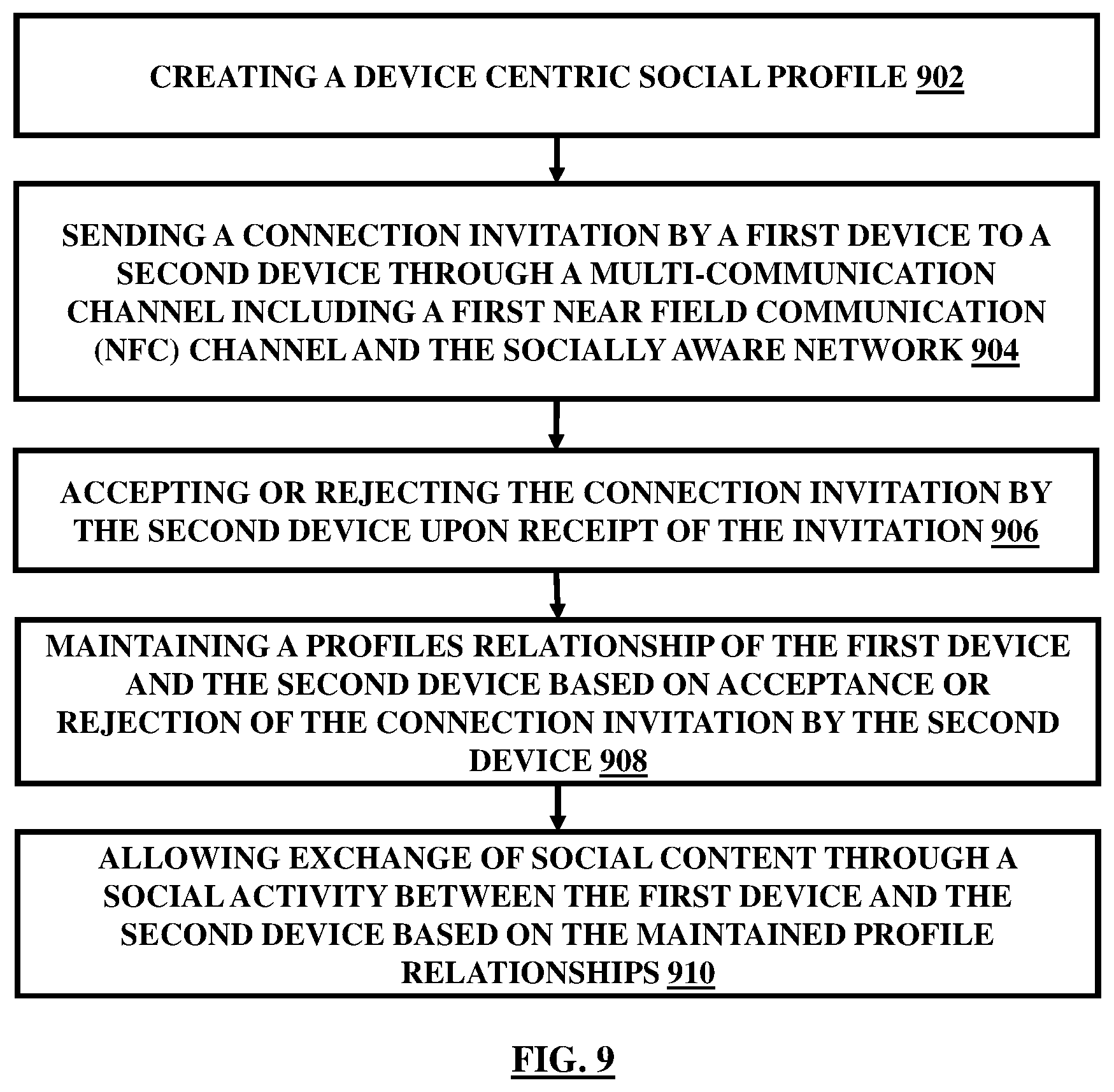

- FIG. 9 illustrates a method flowchart for integration of a plurality of participants in an embodiment of an embodiment herein.

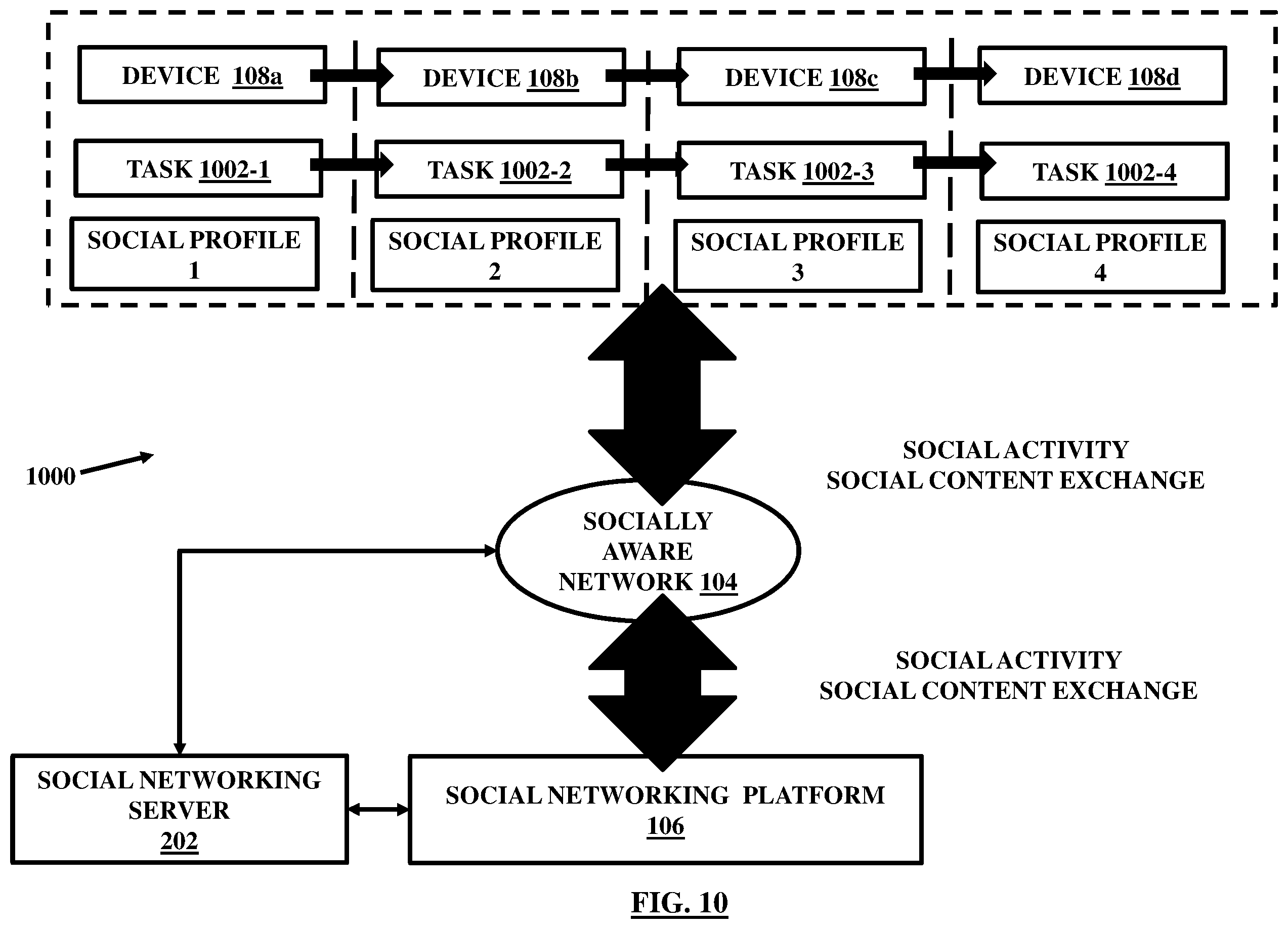

- FIG. 10 illustrates an ecosystem for facilitating sequential, synchronous and automatically coordinated operation of the plurality of devices through interactive elements involving a chain of tasks and devices, in an embodiment herein;

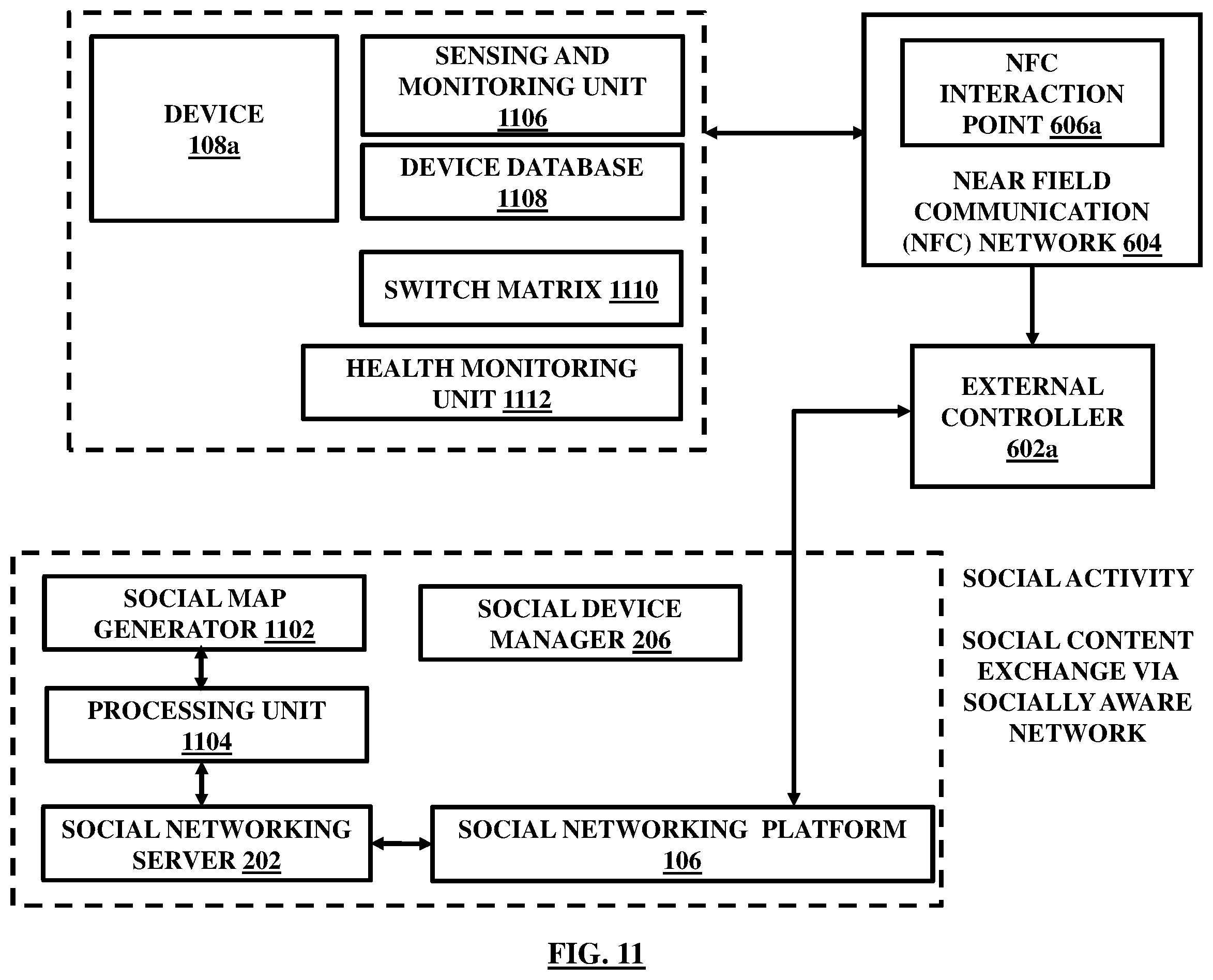

- FIG. 11 illustrates an example of a device interconnected with a social networking platform in an embodiment herein;

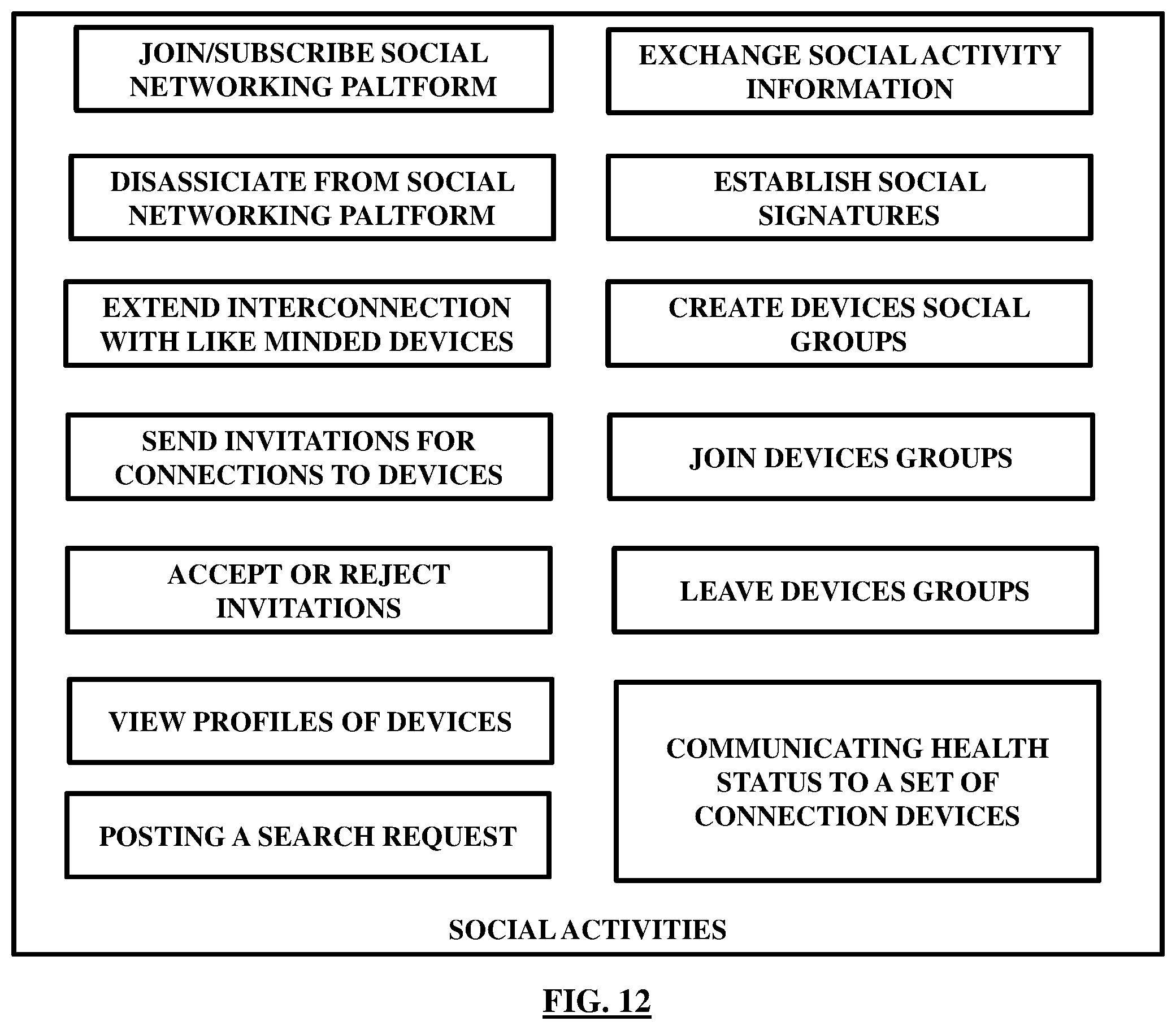

- FIG. 12 illustrates a list of exemplary social activities that a server may be programmed to allow a plurality of devices to perform in accordance with an embodiment herein;

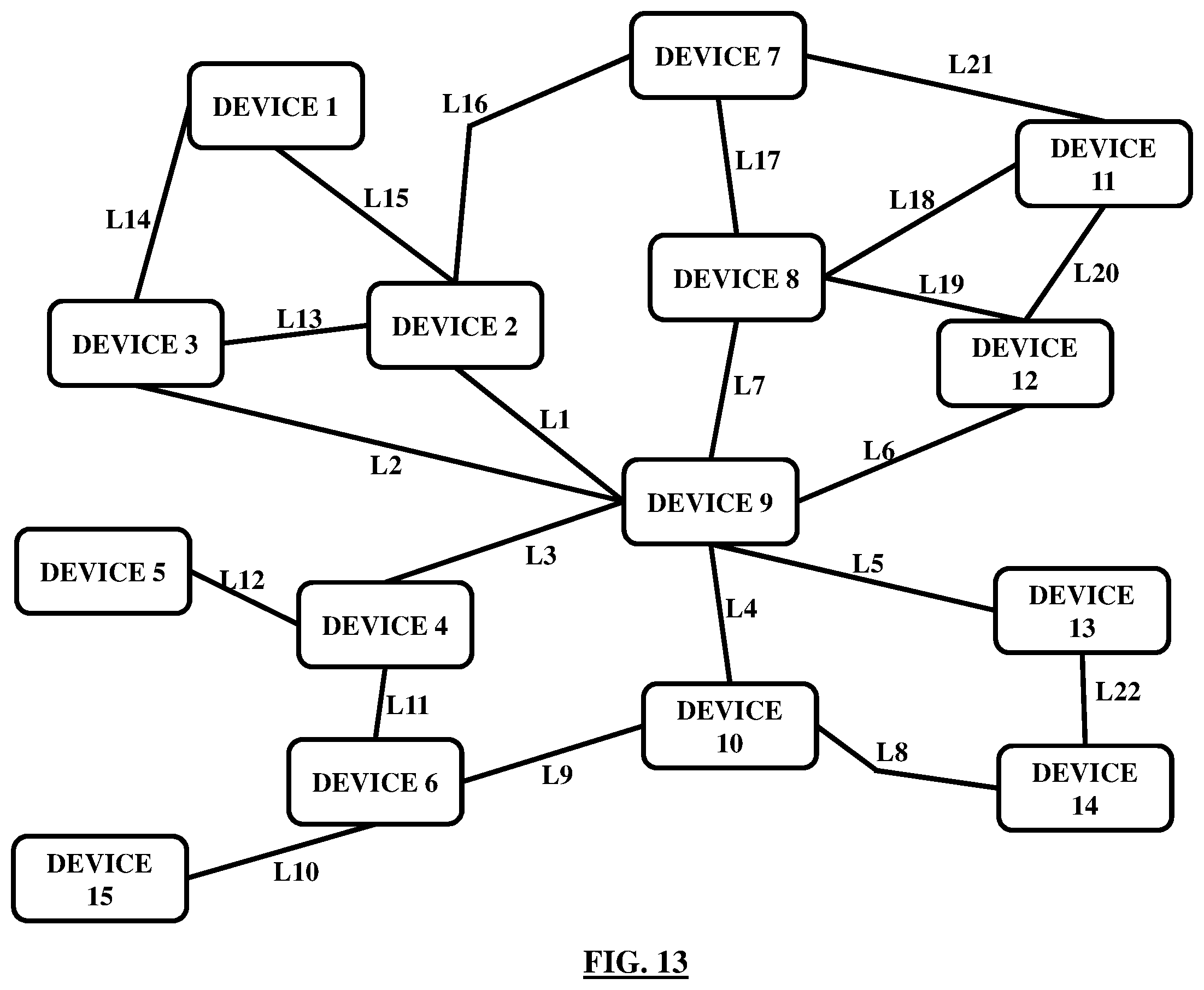

- FIG. 13 illustrates an example of a social map showing interconnection of exemplary devices through the social map in accordance with an embodiment herein;

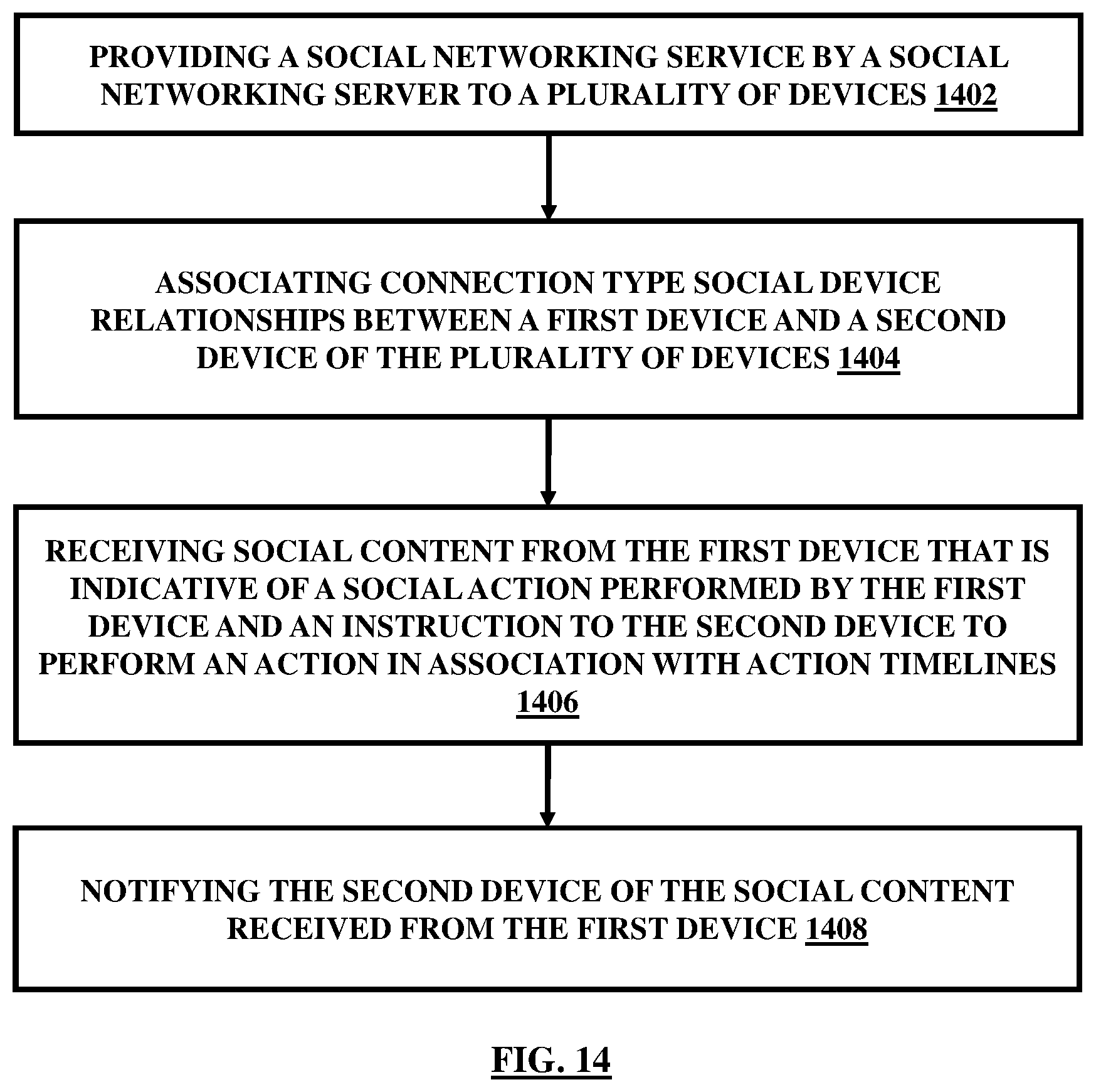

- FIG. 14 illustrates a method flowchart for facilitating sequential, synchronous and automatically coordinated operation of a plurality of devices through interactive elements involving a chain of tasks and the devices in accordance with an embodiment herein;

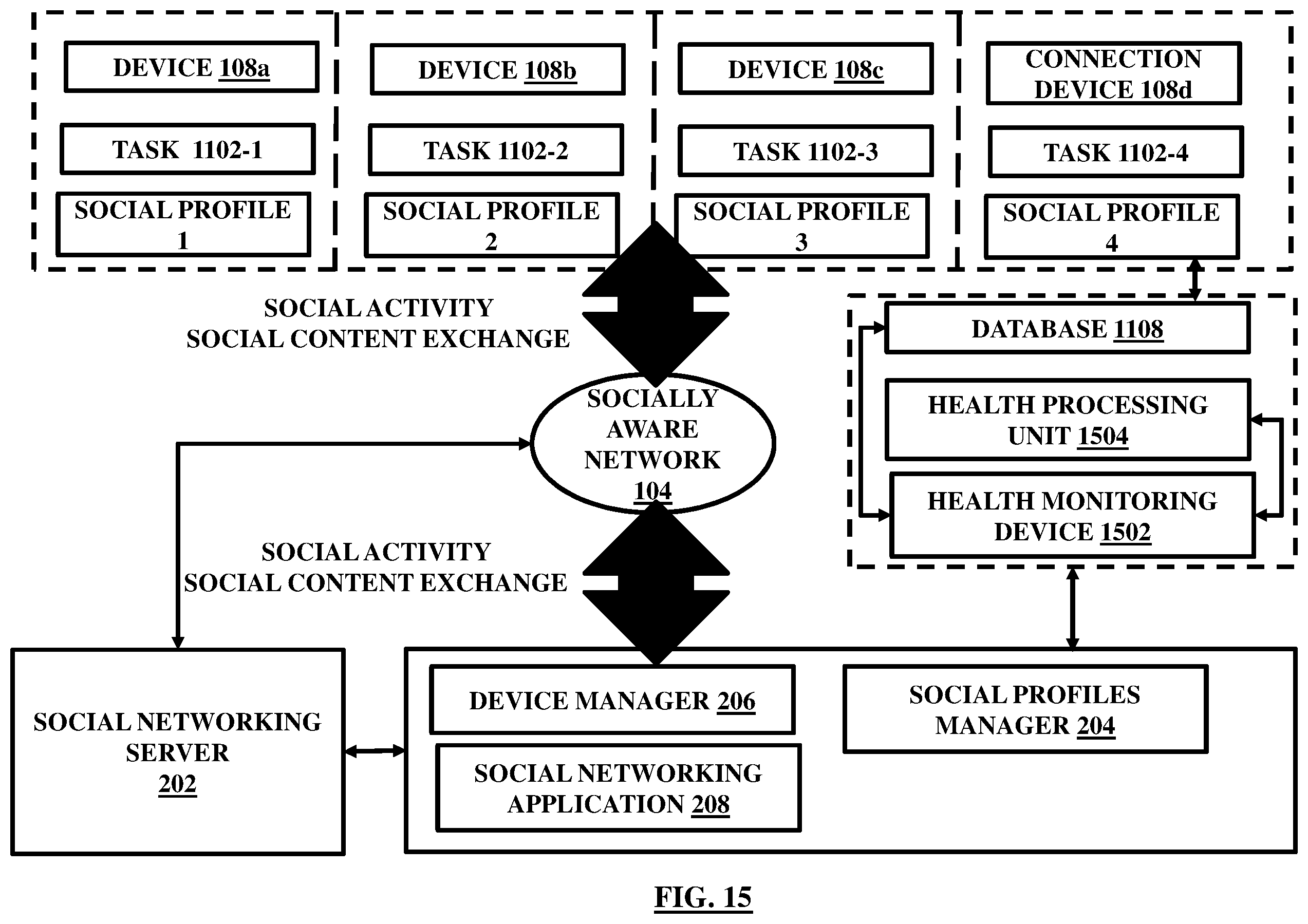

- FIG. 15 illustrates interconnection of tasks and devices and their interaction with a social networking server, in an embodiment herein;

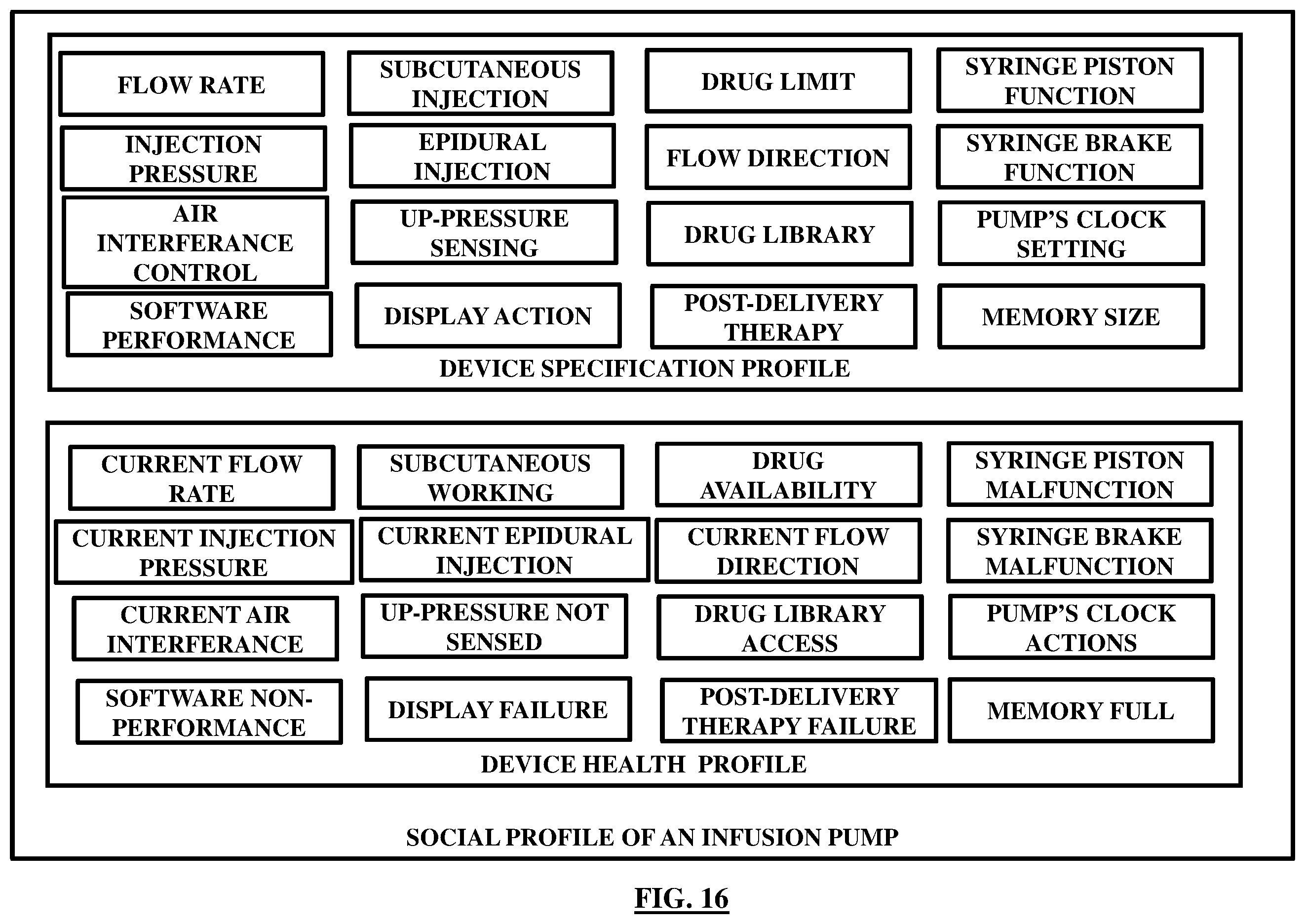

- FIG. 16 illustrates an exemplary social profile depicting social health profile and social specification profile of an exemplary infusion pump in accordance with an embodiment herein;

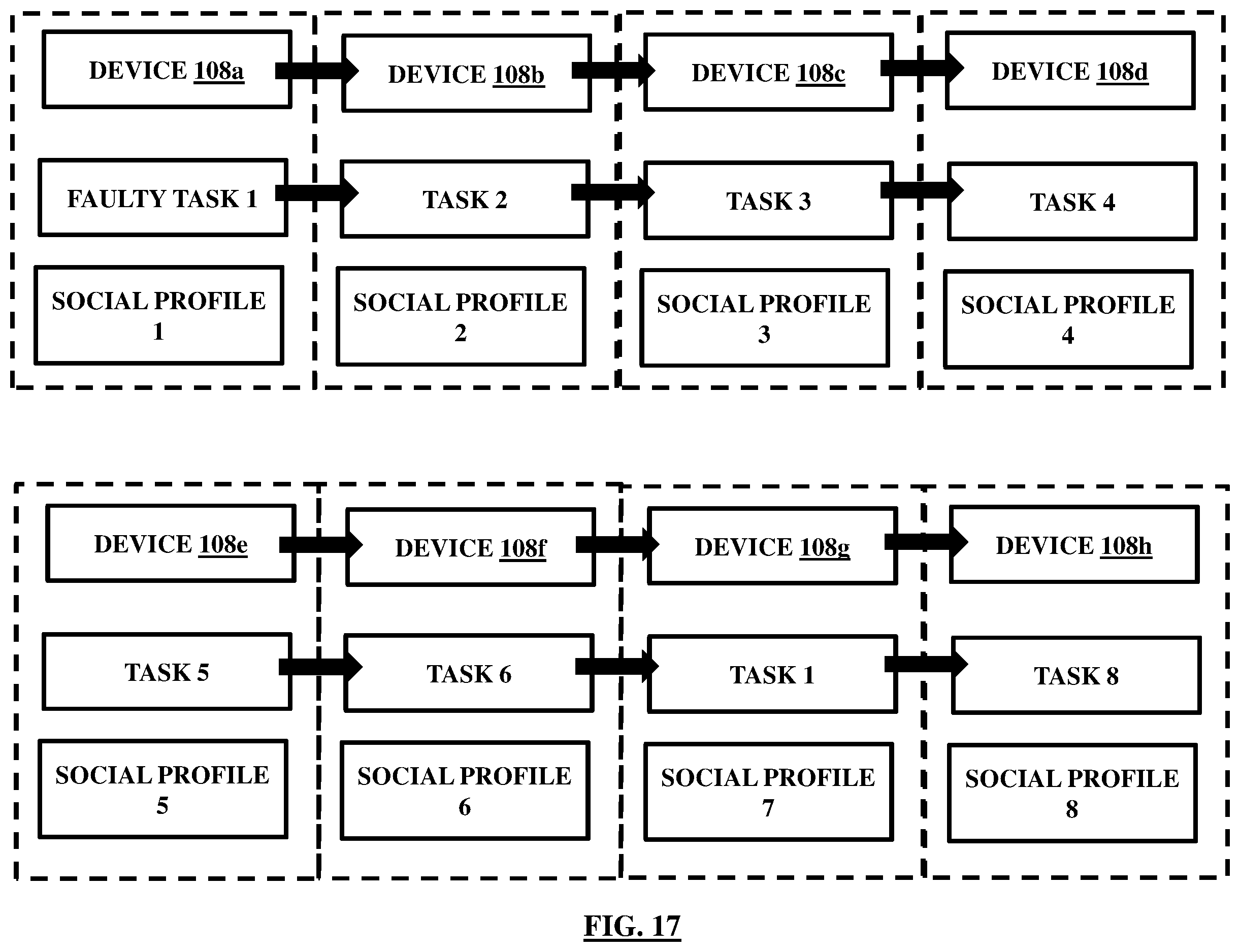

- FIG. 17 illustrates another embodiment of an ecosystem of devices and respective tasks and social profiles interconnected through a social platform implemented by a social networking server for the purpose of health management of the devices, in an embodiment herein;

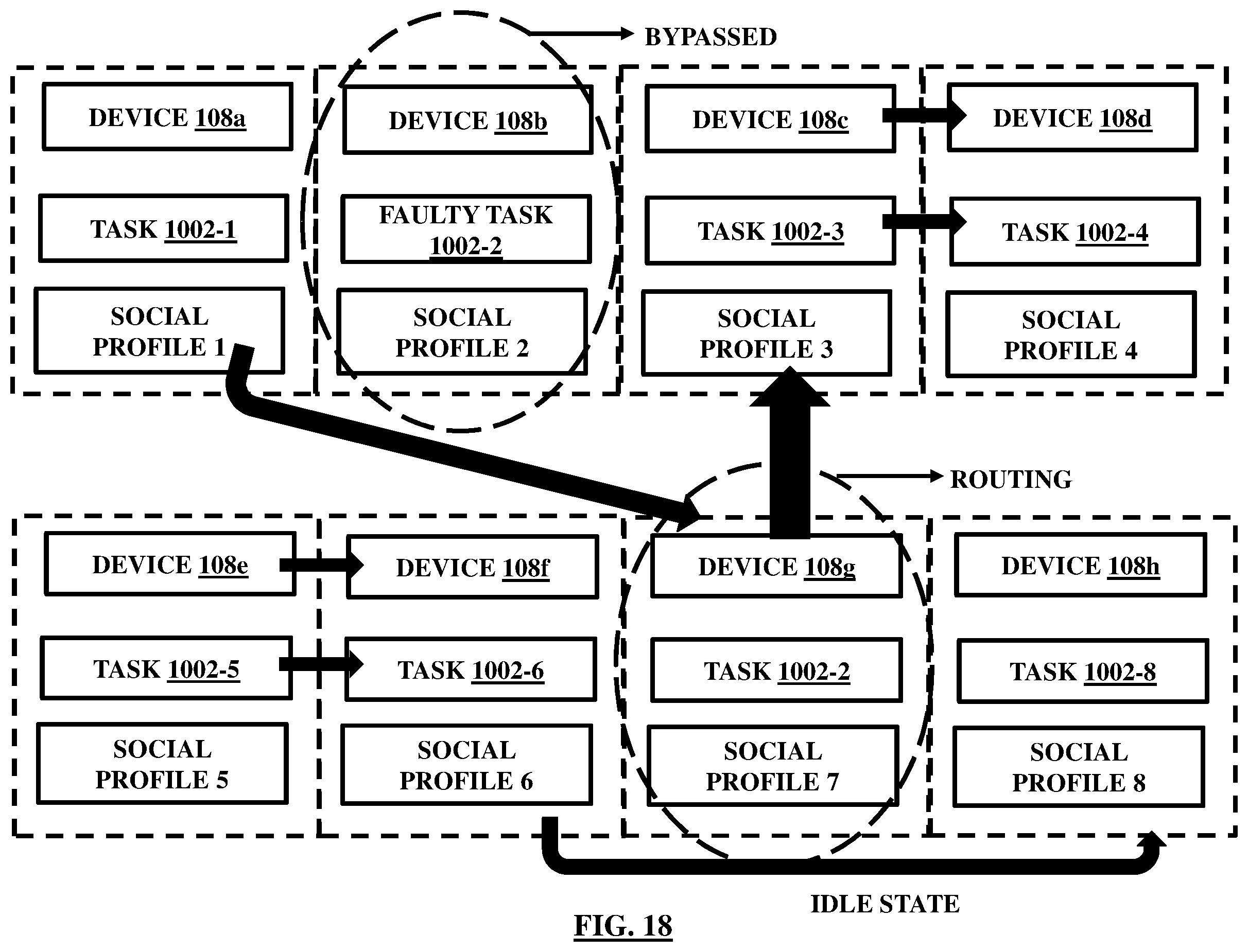

- FIG. 18 illustrates the ecosystem of FIG. 17 with alternative devices interconnected and bypassing faulty devices, in an embodiment herein;

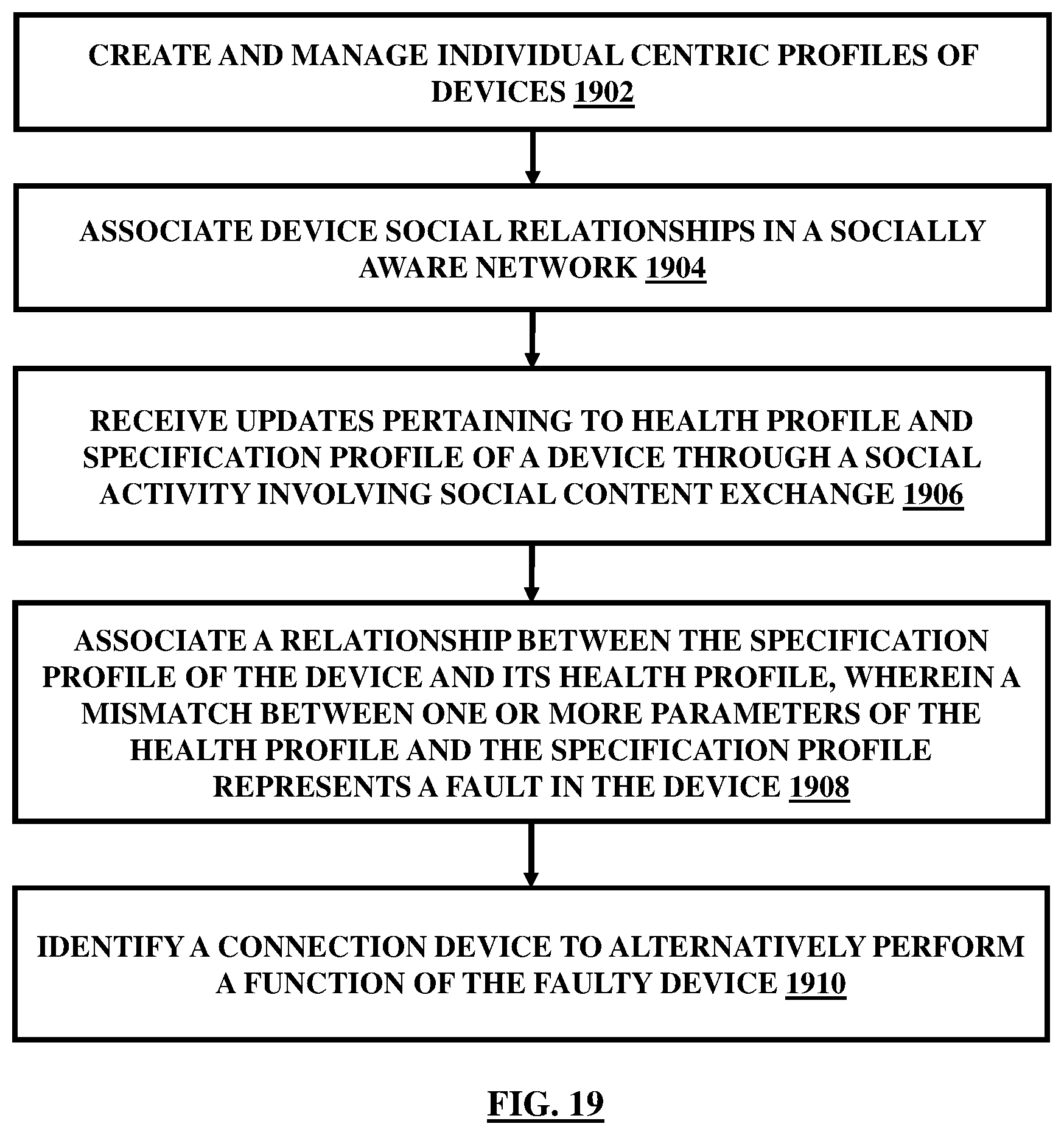

- FIG. 19 illustrates a method flowchart for health management of a device interconnected with a plurality of devices through a social networking server in accordance with an embodiment herein;

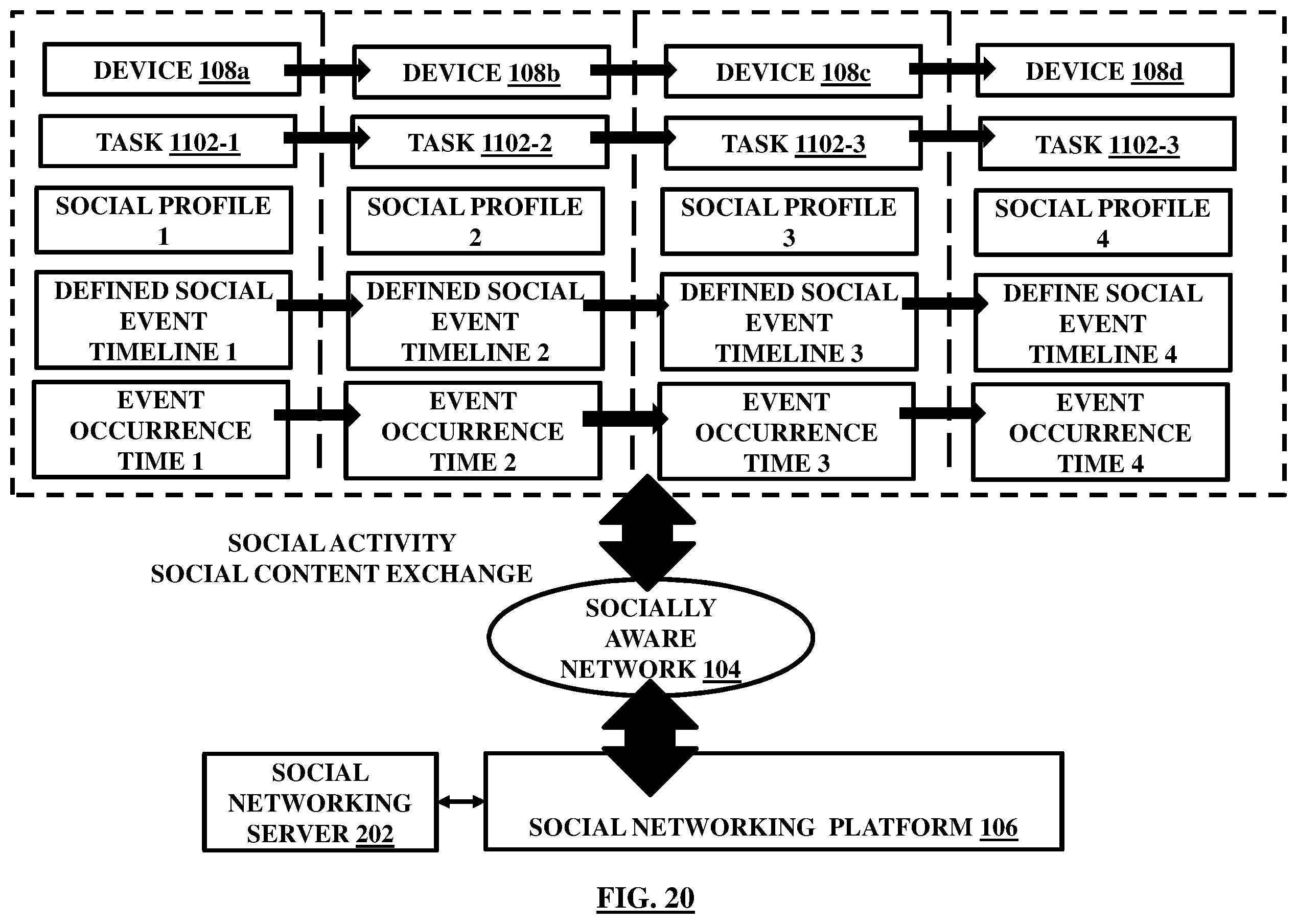

- FIG. 20 illustrates an interconnection of the devices through a chain of tasks and devices in an embodiment herein;

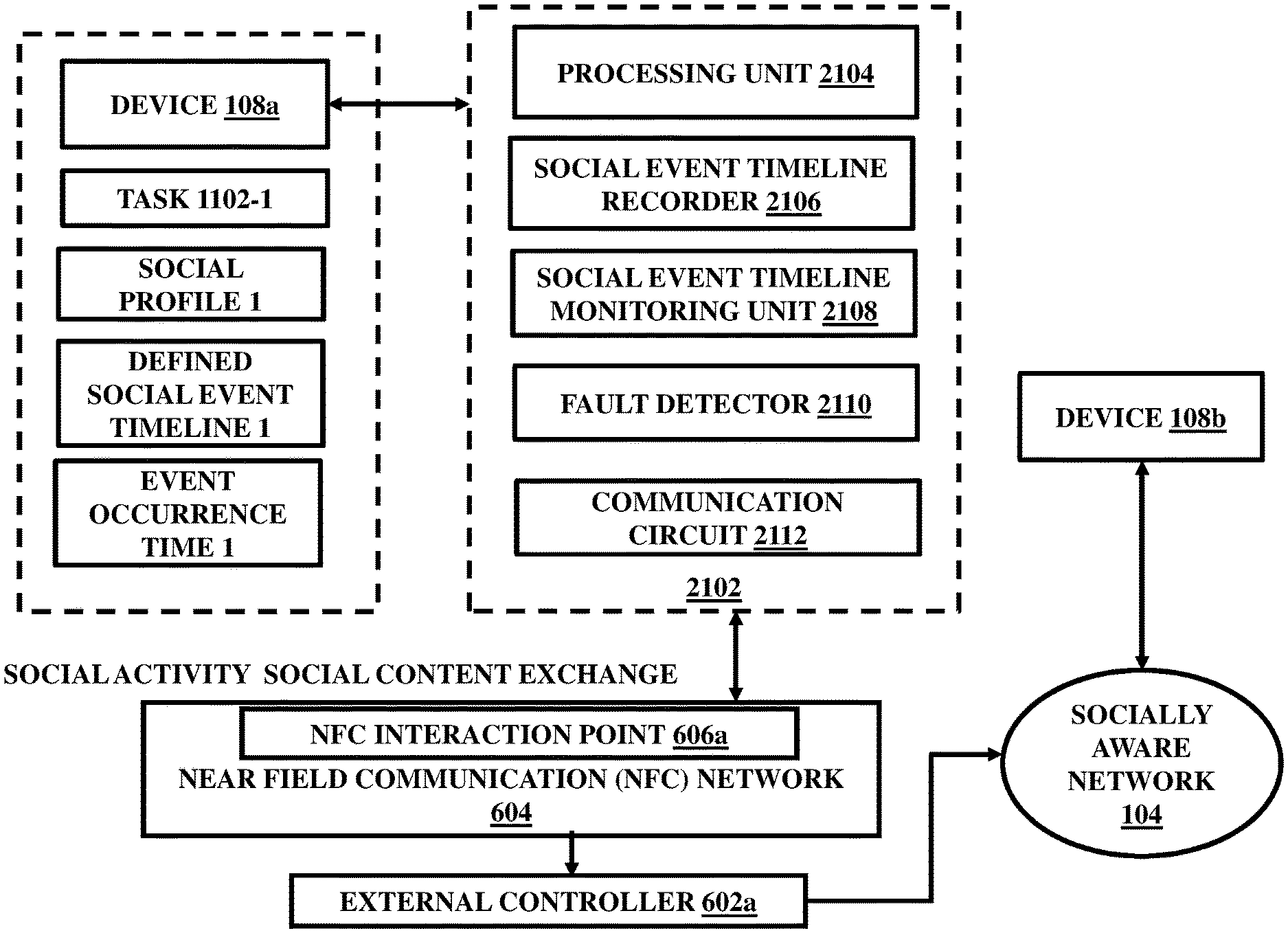

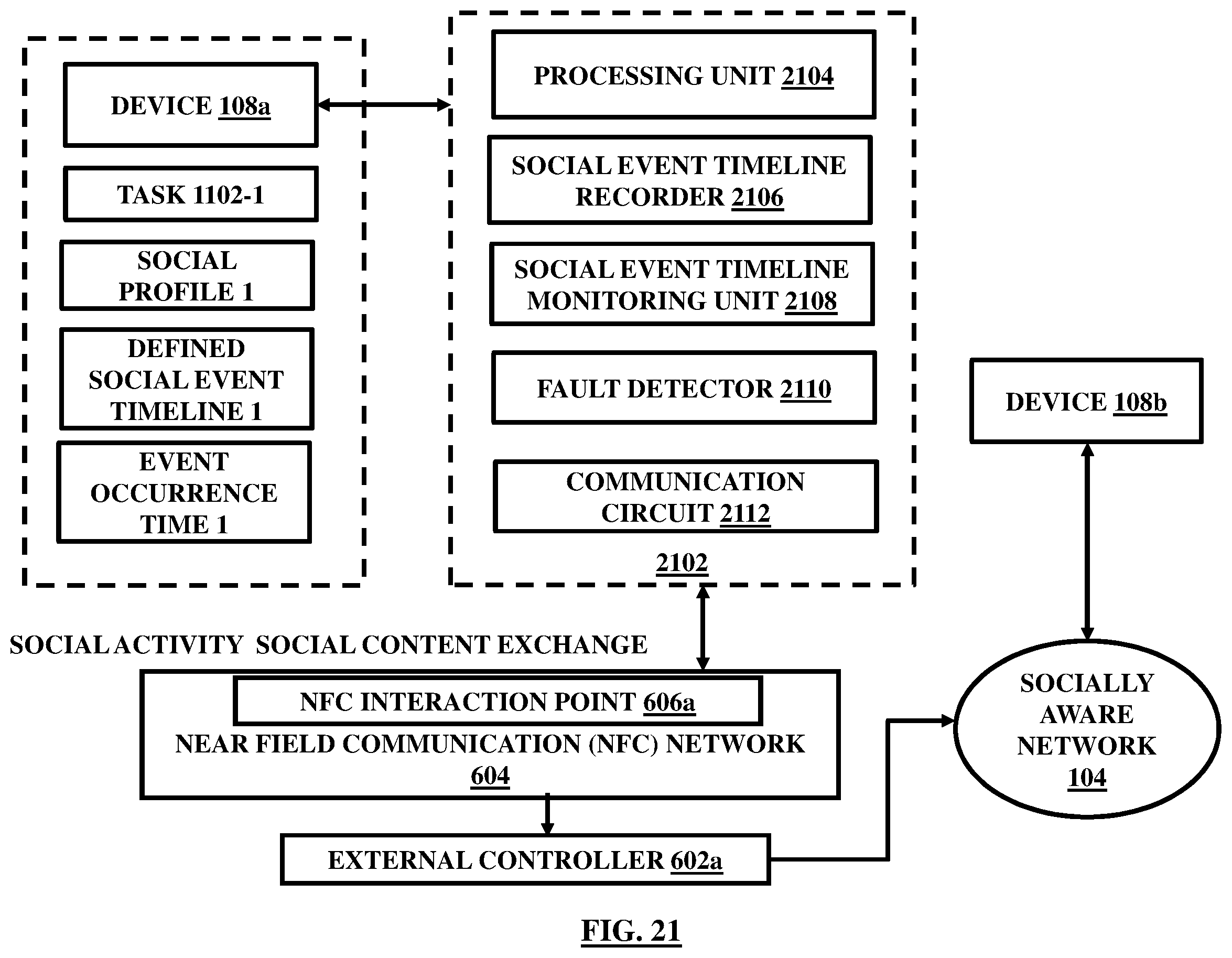

- FIG. 21 illustrates a system coupled communicatively to or included in a device for allowing the device to communicate with a social networking server in accordance with an embodiment herein;

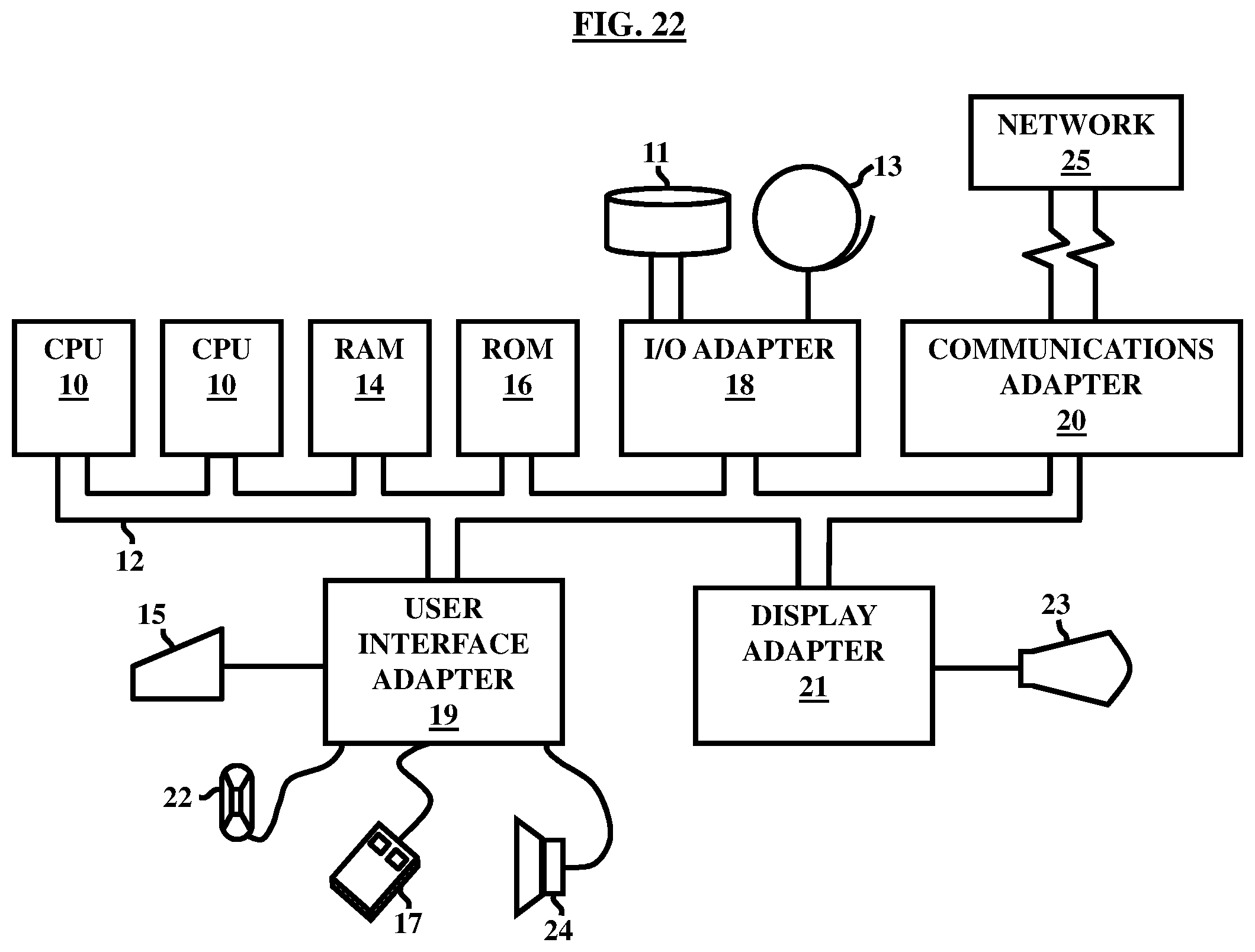

- FIG. 22 is a block diagram illustrating an exemplary hardware environment for practicing the embodiments depicted in FIGS. 1-21 .
Abstract
A system and method for providing a social networking service to a plurality of devices. A social networking server for facilitating social information exchange among the plurality of devices through a socially aware network. A social profiles manager is coupled to the social networking server that creates and manages individual centric profiles of the plurality of devices. The individual centric profiles of the plurality of devices are social representation of individual devices within the socially aware network. The plurality of devices are identifiable by other participants and the social networking server through their social profiles.
Summary of the invention
An embodiment herein provides a system for providing a social networking service to a plurality of participants and allowing the participants to perform a series of social tasks in a socially aware network. The system includes a social networking server that facilitates social information exchange among the participants through the socially aware network. The plurality of participants includes device participants and non-device participants. The system further includes a social profiles manager included in or coupled to the social networking server. The social profiles manager creates and manages individual centric profiles of devices that are a social representation of individual devices within the socially aware network. The devices are identifiable by other participants and the social networking server through social profiles associated with the devices. The social profiles includes social device profiles and social human profiles associated with device participants and non-device participants respectively such that the social human profiles are associated with one or more device profiles, and wherein the social human profiles are represented as a subset of corresponding device profiles. The system further includes a social device manager included in or coupled to the social networking server. The social device manager manages device relationships and social activity in the socially aware network. The system further includes a social networking application comprising a cluster of social applications each for providing a specific social facility to facilitate social activity among the plurality of participants through the socially aware network.
An embodiment herein provides a method for integration of a plurality of participants comprising a plurality of devices and non-devices through a social networking platform. The method includes creating a device centric social profile for each of the plurality of devices. The social profile is a social representation of a respective device within a socially aware network and each device is identifiable by other devices and a social networking server through a social profile of the each device. The method further includes allowing exchange of social content among the devices by the social networking server for the devices to perform a series of social tasks. The social content is exchanged through a first communication channel and a second communication channel. The first communication channel links a device with an external controller and the second communication channel links the external controller with a socially aware network. The series of social tasks includes one or more of voluntarily joining the socially aware network, disassociating or leaving from the socially aware network, extending interconnection with other like-minded devices, sending invitations for connections to other devices, accepting or rejecting invitations from other devices, viewing profiles of other devices, exchanging social activity information, establishing social signatures for social authorization of profiles, creating devices social groups, joining devices groups, and leaving devices groups voluntarily or upon initiation of an activity by a participant. The method further includes maintaining profiles relationships among the devices within the socially aware network.
An embodiment herein provides a method for integration of a plurality of participants comprising a plurality of devices and non-devices through a social networking platform. The method includes creating a device centric social profile for each of the plurality of devices. The social profile is a social representation of a respective device within a socially aware network and the device is identifiable by other devices and a social networking server through the social profile. The method further includes sending a connection invitation by a first device to a second device through a multi-communication channel including a first near field communication (NFC) channel and the socially aware network. The sending of the connection invitation includes sending the connection invitation from the first device to the external controller associated with the first device through the first NFC channel. The sending of the connection invitation further includes transferring the connection invitation from the external controller to a network point of the socially aware network. The sending of the connection invitation further includes transferring the connection invitation from the network point through the socially aware network to the device. The method further includes accepting or rejecting the connection invitation by the second device upon receipt. The method further includes maintaining a profiles relationship of the first device and the second device based on acceptance or rejection of the connection invitation by the second device. The method further includes allowing an exchange of social content through a social activity between the first device and the second device based on the maintained profile relationships. The social activity comprises a series of social tasks including one or more of devices to voluntarily join the socially aware network, disassociate or leave from the socially aware network, extend interconnection with other like-minded devices, send invitations for connections to other devices, accept or reject invitations from other devices, view profiles of other devices, exchange social activity information, establish social signatures for social authorization of profiles, create devices social groups, join devices groups, and leave devices groups voluntarily or upon initiation of an activity by a participant.
The full summary
An embodiment herein provides a non-transitory program storage device readable by a computer, and comprising a program of instructions executable by the computer to perform a method for integration of a plurality of participants including a plurality of devices and non-devices through a social networking platform. The method includes creating a device centric social profile for each of the plurality of devices. The social profile is a social representation of a respective device within a socially aware network and each device is identifiable by other devices and a social networking server through a social profile of the each device. The method further includes allowing exchange of social content among the devices by the social networking server for the devices to perform a series of social tasks. The social content is exchanged through a first communication channel and a second communication channel. The first communication channel links a device with an external controller and the second communication channel links the external controller with a socially aware network. The series of social tasks includes one or more of voluntarily joining the socially aware network, disassociating or leaving from the socially aware network, extending interconnection with other like-minded devices, sending invitations for connections to other devices, accepting or rejecting invitations from other devices, viewing profiles of other devices, exchanging social activity information, establishing social signatures for social authorization of profiles, creating devices social groups, joining devices groups, and leaving devices groups voluntarily or upon initiation of an activity by a participant. The method further includes maintaining profiles relationships among the devices within the socially aware network.
An embodiment herein provides a system for facilitating sequential, synchronous, and automatically coordinated operation of a plurality of devices through interactive elements involving a chain of tasks and devices. The system includes a social networking server that provides a social networking service to the plurality of devices so that each of the plurality of devices are communicatively connected to the social networking service by associating respective social profiles with the social networking server. The respective social profiles are social representation of the plurality of devices, wherein the social networking server is programmed to allow the plurality of devices to coordinate for a synchronous social times-based functioning by a process. The process includes associating connection type social device relationships between a first device and a second device of the plurality of devices. The connection type social device relationships allow the first device and the second device to view a social profile of one another through a device user interface enabled by the social networking server. The process further includes receiving social content from the first device, wherein the social content is indicative of a social action performed by the first device and an instruction to the second device to perform an action in association with action timelines, and wherein the action timelines are indicative of time points associated with the action and define time when actual action occurs at the plurality of devices. The process further includes notifying the second device of the social content received from the first device. The social content includes the instruction to the second device to perform the action in association with the action timelines.
An embodiment herein provides a method for facilitating sequential, synchronous, and automatically coordinated operation of a plurality of devices through interactive elements involving a chain of tasks and devices. The method includes providing a social networking service by a social networking server to the plurality of devices so that each of the plurality of devices are communicatively connected to the social networking service by associating respective social profiles with the social networking server, wherein the respective social profiles are a social representation of the plurality of devices, and wherein the social networking server is programmed to allow the plurality of devices to coordinate for a synchronous social times-based functioning. The method further includes associating connection type social device relationships between a first device and a second device of the plurality of devices. The connection type social device relationships allow the first device and the second device to view a social profile of one another through a device user interface enabled by the social networking server. The method includes receiving social content from the first device. The social content is indicative of a social action performed by the first device and an instruction to the second device to perform an action in association with action timelines. The action timelines are indicative of time points associated with the action and define time when actual action should occur at the plurality of devices. The method further includes notifying the second device of the social content received from the first device, wherein the social content includes the instruction to the second device to perform the action in association with the action timelines.
An embodiment herein provides a system for health management of a plurality of devices interconnected through a social networking platform. The system includes a social networking server that provides a social networking-based health service to the plurality of devices and allows the plurality of devices to perform a series of social health tasks by exchange of social content in a socially aware network. The social networking server is programmed to create and manage individual centric profiles of the plurality of devices that are a social representation of individual devices within the socially aware network. The individual devices are identifiable by other devices and the social networking server through social profiles of the individual devices. The social profiles of each of the individual devices include a health profile indicative of health disciplines corresponding to each device and a specification profile including details corresponding to predefined working parameters of the each device. The social networking server is further programmed to associate device social relationships in the socially aware network. The social networking server is programmed to receive updates pertaining to a health profile and a specification profile of a device through a social activity involving social content exchange between a first device and the social networking server. The social networking server is further programmed to associate a relationship between the specification profile of the device and its health profile, wherein a mismatch between one or more parameters of the health profile and the specification profile represents a fault in the device. The social networking server is further programmed to identify a connection device to alternatively perform a function of a faulty device such that the connection device is in an idle state for a time period during which the connection device is required to alternatively perform the function.
An embodiment herein provides a method for health management of a device interconnected with a plurality of devices through a social networking platform. The method includes creating and managing individual centric profiles of the plurality of devices that comprise a social representation of individual devices within a socially aware network. The individual devices are identifiable by other devices and a social networking server through a social profile of each individual device. The social profile of each individual device includes a health profile indicative of health disciplines corresponding to a device and a specification profile including details corresponding to predefined working parameters of the device. The method further includes associating device social relationships in the socially aware network. The method further includes receiving updates pertaining to a health profile and a specification profile of a device through a social activity involving social content exchange between the first device and the server. The method further includes associating a relationship between the specification profile of the device and its health profile. A mismatch between one or more parameters of the health profile and the specification profile represents a fault in the device. The method includes identifying a connection device to alternatively perform a function of a faulty device such that the connection device is in an idle state for a time period during which the connection device is required to alternatively perform the function.
An embodiment herein provides a system for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network. The system includes a processing circuit coupled to the first device. The system includes a social event timeline recorder that stores information pertinent to when an event should occur at the first device, wherein the event should occur at a defined social time. The system includes a social event timeline monitoring unit that monitors an event occurrence time for the event. The system includes a fault detector that compares the social event timeline with the event occurrence time for the event, wherein a gap between the social event timeline and the event occurrence time beyond a threshold limit is indicative of a fault. The event at the first device and the event at the second device are interdependent. The system includes a communication circuit that allows sharing of a social content, indicative of the fault and a predicted modified event occurrence time at the first device, to a social networking server through a two-way communication channel including a near field communication channel and a socially aware network channel. The social networking server sends the social content to the second device. The first device and the second device include connections and parts of a same chain of integrated tasks.
An embodiment herein provides a method for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network. The method includes storing information related to defined social event timelines for tasks associated with the first device, wherein the defined social event timelines define times when an event should occur at the first device. The method includes monitoring a social event occurrence time by a social event timeline monitoring unit. The method includes detecting a fault in functioning of the first device by comparing the social event timeline with an event occurrence time for the event. A gap between the social event timeline and the event occurrence time beyond a threshold limit is indicative of the fault. The event at the first device and the event at the second device are interdependent. The method further includes sharing a social content, indicative of the fault and a predicted modified event occurrence time at the first device, to a social networking platform through a two-way communication channel including a near field communication channel and a socially aware network channel. The social networking platform sends the social content to the second device. The first device and the second device comprise connections and parts of a same chain of integrated tasks.
Independent claims
Claim 1
A system for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network, said system comprising: a processing circuit coupled to said first device; a social event timeline recorder that stores information pertinent to when an event should occur at said first device, wherein said event should occur at a defined social time; a social event timeline monitoring unit that monitors an event occurrence time for said event; a fault detector that compares said social event timeline with said event occurrence time for said event, wherein a gap between said social event timeline and said event occurrence time beyond a threshold limit is indicative of a fault, and wherein said event at said first device and said event at said second device are interdependent; and a communication circuit that allows sharing of a social content comprising defined social profiles, indicative of said fault and a predicted modified event occurrence time at said first device, to a social networking server through a two-way communication channel including a near field communication channel and a socially aware network channel, wherein said social networking server sends said social content to said second device, and wherein said first device and said second device comprise connections and parts of a same chain of integrated tasks, wherein said social networking server is coupled to a search interface implementing a search algorithm that identifies and shortlists said defined social profiles, the shortlisted profiles being submitted to said first device so that said first device sends out connection requests to devices associated with said shortlisted profiles for extending a social space, and wherein said first device uses said second device from among said shortlisted social profiles as an intelligent health monitoring device based on proximity and similarity in operation of said second device with respect to said first device so that in case of a fault with or failure of said first device, said second device performs functions of said first device voluntarily or upon a social activity initiated by said first device and directed to said second device.
Claim 8
A method for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network, said method comprising: storing information related to defined social event timelines for tasks associated with said first device, wherein said defined social event timelines defining times when an event should occur at said first device; monitoring a social event occurrence time by a social event timeline monitoring unit; detecting a fault in functioning of said first device by comparing said social event timeline with an event occurrence time for said event, wherein a gap between said social event timeline and said event occurrence time beyond a threshold limit is indicative of the fault, wherein said event at said first device and said event at said second device are interdependent; and sharing a social content, indicative of said fault and a predicted modified event occurrence time at said first device, to a social networking platform through a two-way communication channel including a near field communication channel and a socially aware network channel, wherein said social networking platform sends said social content to said second device, and wherein said first device and said second device comprise connections and parts of a same chain of integrated tasks, wherein said social networking server is coupled to a search interface implementing a search algorithm that identifies and shortlists said defined social profiles, the shortlisted profiles being submitted to said first device so that said first device sends out connection requests to devices associated with said shortlisted profiles for extending a social space, and wherein said first device uses said second device from among said shortlisted social profiles as an intelligent health monitoring device based on proximity and similarity in operation of said second device with respect to said first device so that in case of a fault with or failure of said first device, said second device performs functions of said first device voluntarily or upon a social activity initiated by said first device and directed to said second device.
Claim 15
A non-transitory program storage device readable by a computer, and comprising a program of instructions executable by the computer to perform a method for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network, said method comprising: storing information related to defined social event timelines for tasks associated with said first device, wherein said defined social event timelines defining times when an event should occur at said first device; monitoring a social event occurrence time by a social event timeline monitoring unit; detecting a fault in functioning of said first device by comparing said social event timeline with an event occurrence time for said event, wherein a gap between said social event timeline and said event occurrence time beyond a threshold limit is indicative of the fault, wherein said event at said first device and said event at said second device are interdependent; and sharing a social content, indicative of said fault and a predicted modified event occurrence time at said first device, to a social networking platform through a two-way communication channel including a near field communication channel and a socially aware network channel, wherein said social networking platform sends said social content to said second device, and wherein said first device and said second device comprise connections and parts of a same chain of integrated tasks, wherein said social networking server is coupled to a search interface implementing a search algorithm that identifies and shortlists said defined social profiles, the shortlisted profiles being submitted to said first device so that said first device sends out connection requests to devices associated with said shortlisted profiles for extending a social space, and wherein said first device uses said second device from among said shortlisted social profiles as an intelligent health monitoring device based on proximity and similarity in operation of said second device with respect to said first device so that in case of a fault with or failure of said first device, said second device performs functions of said first device voluntarily or upon a social activity initiated by said first device and directed to said second device.
All 20 claims
- A system for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network, said system comprising: a processing circuit coupled to said first device; a social event timeline recorder that stores information pertinent to when an event should occur at said first device, wherein said event should occur at a defined social time; a social event timeline monitoring unit that monitors an event occurrence time for said event; a fault detector that compares said social event timeline with said event occurrence time for said event, wherein a gap between said social event timeline and said event occurrence time beyond a threshold limit is indicative of a fault, and wherein said event at said first device and said event at said second device are interdependent; and a communication circuit that allows sharing of a social content comprising defined social profiles, indicative of said fault and a predicted modified event occurrence time at said first device, to a social networking server through a two-way communication channel including a near field communication channel and a socially aware network channel, wherein said social networking server sends said social content to said second device, and wherein said first device and said second device comprise connections and parts of a same chain of integrated tasks, wherein said social networking server is coupled to a search interface implementing a search algorithm that identifies and shortlists said defined social profiles, the shortlisted profiles being submitted to said first device so that said first device sends out connection requests to devices associated with said shortlisted profiles for extending a social space, and wherein said first device uses said second device from among said shortlisted social profiles as an intelligent health monitoring device based on proximity and similarity in operation of said second device with respect to said first device so that in case of a fault with or failure of said first device, said second device performs functions of said first device voluntarily or upon a social activity initiated by said first device and directed to said second device.
- The system of claim 1 , wherein said social content is exchanged through a social activity which is initiated after said first device and said second device are mutual connections.
- The system of claim 1 , wherein said first device sends a connection request to said second device such that said connection request causes a display of a social profile of said first device to said second device, wherein upon acceptance of said connection request after viewing said social profile, said second device and said first device are mutual connections.
- The system of claim 1 , wherein said social content indicative of the predicted modified social event timeline is shared with said second device through said social networking server with the use of a chat-room type window conversation setting configuring activation of social information exchange through a chat-room type window.
- The system of claim 1 , wherein said chat-room type window conversation setting is activated based on a trigger generated upon detection of the fault, said trigger causing activation of said near field communication channel and said chat-room type window setting.
- The system of claim 1 , wherein said first device is communicatively coupled to an intelligent health monitoring device for monitoring updates in said defined social profiles, wherein said first device is communicatively coupled to a database for storing said defined social profiles and various updates corresponding to said defined social profiles, and wherein said defined social profiles and said various updates are shared by said intelligent health monitoring device through said social activity involving social content sharing between said health monitoring device and said social networking server.
- The system of claim 6 , wherein said intelligent health monitoring device is integrally included within said first device so that said first device is capable of detecting said fault by comparing said defined social profiles itself, wherein said event from said first device involves a request to a set of connection devices to alternatively contribute in performing a function healthily when the set of connection devices are in an idle state and when said first device is faulty.
- A method for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network, said method comprising: storing information related to defined social event timelines for tasks associated with said first device, wherein said defined social event timelines defining times when an event should occur at said first device; monitoring a social event occurrence time by a social event timeline monitoring unit; detecting a fault in functioning of said first device by comparing said social event timeline with an event occurrence time for said event, wherein a gap between said social event timeline and said event occurrence time beyond a threshold limit is indicative of the fault, wherein said event at said first device and said event at said second device are interdependent; and sharing a social content, indicative of said fault and a predicted modified event occurrence time at said first device, to a social networking platform through a two-way communication channel including a near field communication channel and a socially aware network channel, wherein said social networking platform sends said social content to said second device, and wherein said first device and said second device comprise connections and parts of a same chain of integrated tasks, wherein said social networking server is coupled to a search interface implementing a search algorithm that identifies and shortlists said defined social profiles, the shortlisted profiles being submitted to said first device so that said first device sends out connection requests to devices associated with said shortlisted profiles for extending a social space, and wherein said first device uses said second device from among said shortlisted social profiles as an intelligent health monitoring device based on proximity and similarity in operation of said second device with respect to said first device so that in case of a fault with or failure of said first device, said second device performs functions of said first device voluntarily or upon a social activity initiated by said first device and directed to said second device.
- The method of claim 8 , wherein said social content is exchanged through a social activity which is initiated after said first device and said second device are mutual connections.
- The method of claim 8 , further comprising sending to said second device by said first device a connection request such that said connection request causes a display of a social profile of said first device to said second device, wherein upon acceptance of said connection request after viewing said social profile, said second device and said first device are mutual connections.
- The method of claim 8 , wherein said social content indicative of the predicted modified social event timeline is shared with said second device through said social networking server with the use of a chat-room type window conversation setting configuring activation of social information exchange through a chat-room type window.
- The method of claim 11 , wherein said chat-room type window conversation setting is activated based on a trigger generated upon detection of the fault, said trigger causing activation of said near field communication channel and said chat-room type window setting.
- The method of claim 8 , wherein said first device is communicatively coupled to an intelligent health monitoring device for monitoring updates in said defined social profiles, wherein said first device is communicatively coupled to a database for storing said defined social profiles and various updates corresponding to said defined social profiles, and wherein said defined social profiles and said various updates are shared by said intelligent health monitoring device through said social activity involving social content sharing between said health monitoring device and said social networking server.
- The method of claim 13 , wherein said intelligent health monitoring device is integrally included within said first device so that said first device is capable of detecting said fault by comparing said defined social profiles itself, wherein said event from said first device involves a request to a set of connection devices to alternatively contribute in performing a function healthily when the set of connection devices are in an idle state and when said first device is faulty.
- A non-transitory program storage device readable by a computer, and comprising a program of instructions executable by the computer to perform a method for monitoring and conveying health related information from a first device to a second device interconnected through a socially aware network, said method comprising: storing information related to defined social event timelines for tasks associated with said first device, wherein said defined social event timelines defining times when an event should occur at said first device; monitoring a social event occurrence time by a social event timeline monitoring unit; detecting a fault in functioning of said first device by comparing said social event timeline with an event occurrence time for said event, wherein a gap between said social event timeline and said event occurrence time beyond a threshold limit is indicative of the fault, wherein said event at said first device and said event at said second device are interdependent; and sharing a social content, indicative of said fault and a predicted modified event occurrence time at said first device, to a social networking platform through a two-way communication channel including a near field communication channel and a socially aware network channel, wherein said social networking platform sends said social content to said second device, and wherein said first device and said second device comprise connections and parts of a same chain of integrated tasks, wherein said social networking server is coupled to a search interface implementing a search algorithm that identifies and shortlists said defined social profiles, the shortlisted profiles being submitted to said first device so that said first device sends out connection requests to devices associated with said shortlisted profiles for extending a social space, and wherein said first device uses said second device from among said shortlisted social profiles as an intelligent health monitoring device based on proximity and similarity in operation of said second device with respect to said first device so that in case of a fault with or failure of said first device, said second device performs functions of said first device voluntarily or upon a social activity initiated by said first device and directed to said second device.
- The non-transitory program storage device of claim 15 , wherein said social content is exchanged through a social activity which is initiated after said first device and said second device are mutual connections.
- The non-transitory program storage device of claim 15 , wherein said method further comprises sending to said second device by said first device a connection request such that said connection request causes a display of a social profile of said first device to said second device, wherein upon acceptance of said connection request after viewing said social profile, said second device and said first device are mutual connections.
- The non-transitory program storage device of claim 15 , wherein said social content indicative of the predicted modified social event timeline is shared with said second device through said social networking server with the use of a chat-room type window conversation setting configuring activation of social information exchange through a chat-room type window.
- The non-transitory program storage device of claim 18 , wherein said chat-room type window conversation setting is activated based on a trigger generated upon detection of the fault, said trigger causing activation of said near field communication channel and said chat-room type window setting.
- The non-transitory program storage device of claim 15 , wherein said first device is communicatively coupled to an intelligent health monitoring device for monitoring updates in said defined social profiles, wherein said first device is communicatively coupled to a database for storing said defined social profiles and various updates corresponding to said defined social profiles, and wherein said defined social profiles and said various updates are shared by said intelligent health monitoring device through said social activity involving social content sharing between said health monitoring device and said social networking server, and wherein said intelligent health monitoring device is integrally included within said first device so that said first device is capable of detecting said fault by comparing said defined social profiles itself, wherein said event from said first device involves a request to a set of connection devices to alternatively contribute in performing a function healthily when the set of connection devices are in an idle state and when said first device is faulty.
Related patents
- Divisional of US10320735B2 Integration Of Devices Through A Social Networking Platform
- Continued by US11777894B2 Integration Of Devices Through A Social Networking Platform
Every patent of the Integration Of Devices Through A Social Networking Platform family: US9525753B2, US10320735B2, US11777894B2, US12401615B2.
Explained in plain language and in context
Patent summaries
- Intelligent Device Collaboration for Social Networking Benefits
Discover the benefits of social networking in revolutionizing device interactions with our inventive system
Licence or acquire US11044221B2
Available for an exclusive or non-exclusive licence, field-of-use licences included, or for acquisition. Terms on inquiry. Ask about the whole family or any one of its patents.
Or write to hello+ip@intellectualfrontiers.com. A person answers.
Questions
Is US11044221B2 available for licensing?
Yes. Intellectual Frontiers offers US11044221B2, with the rest of the Integration Of Devices Through A Social Networking Platform family, for an exclusive or non-exclusive licence, field-of-use licences included. Terms are agreed on inquiry: write to hello+ip@intellectualfrontiers.com.
Can US11044221B2 be bought?
Yes. US11044221B2 is available for acquisition, alone or with its family. Terms are agreed on inquiry: write to hello+ip@intellectualfrontiers.com.
What is the status of US11044221B2?
Patented Case as of 2 June 2021, according to the USPTO record read 27 September 2026.
When does US11044221B2 expire?
26 August 2034. An estimate from Google Patents, read 9 October 2026. Fees, terminal disclaimers and later events can change it, and it is not legal advice.
What does US11044221B2 cover?
A system and method for providing a social networking service to a plurality of devices. A social networking server for facilitating social information exchange among the plurality of devices through a socially aware network. A social profiles manager is coupled to the social networking server that creates and manages individual centric profiles of the plurality of devices. The individual centric A plain-language summary is at https://www.intellectualfrontiers.com/patent-summaries/intelligent-device-collaboration-for-social-networking-benefits.
Which patents are related to US11044221B2?
It is part of the Integration Of Devices Through A Social Networking Platform family, with US9525753B2, US10320735B2, US11777894B2, US12401615B2.
Who invented US11044221B2 and who holds it?
Shahid N. Shah is the inventor. Intellectual Frontiers LLC holds the rights.
