US12155747B2: System For Management Of Rewardable Computer-Controlled Content Blocks Delivery And Consumption
In plain language
Improving Digital Learning with Reward-Based Progress Monitoring
Transform your digital learning ecosystem with our pioneering approach, focusing on personalization and rewarding progress
Drawings
7 sheets as filed; open one to see it at full size. A figure drawn across its sheet is turned to read upright.
What the drawings show
- The embodiments herein will be better understood from the following detailed description with reference to the drawings, in which:

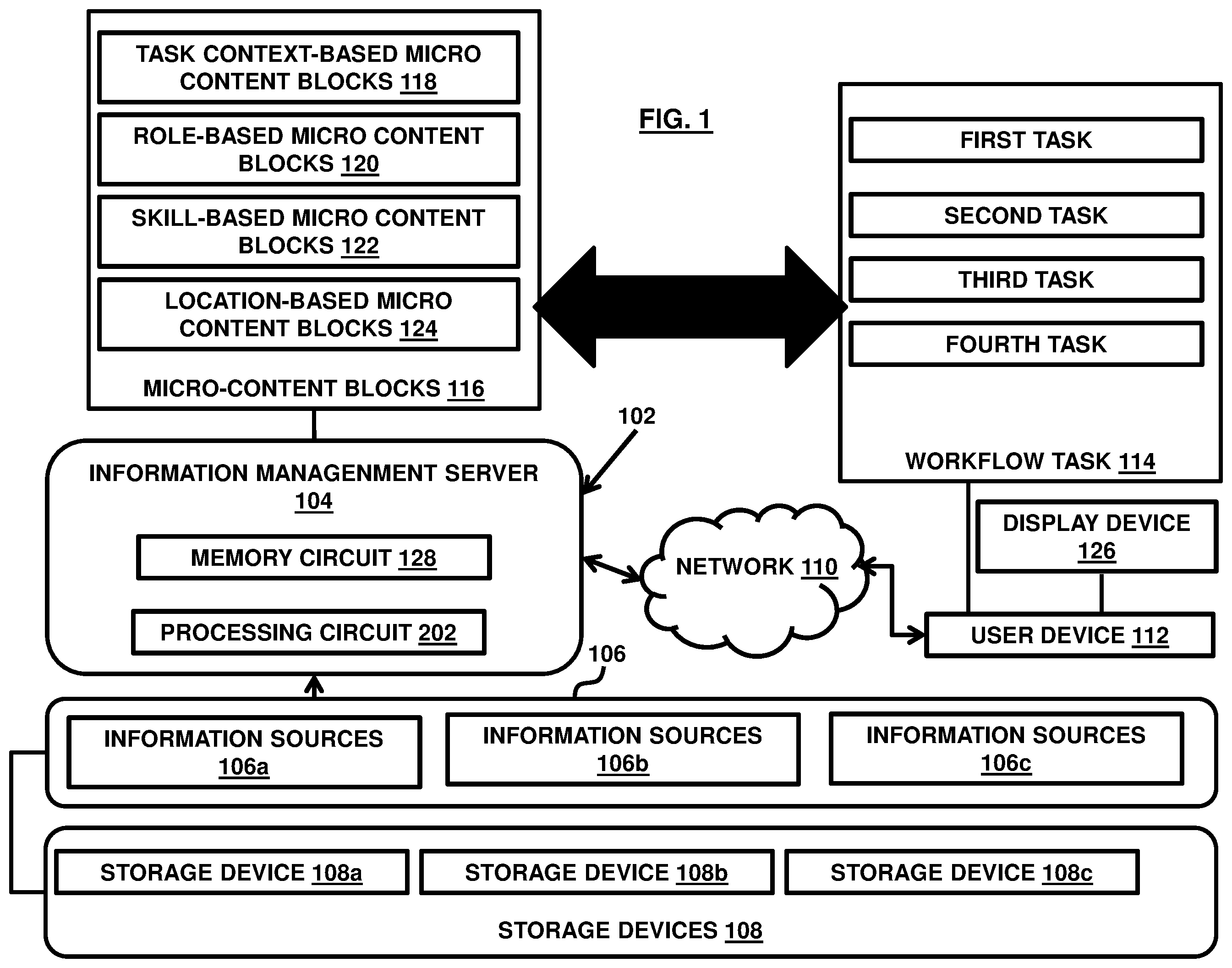

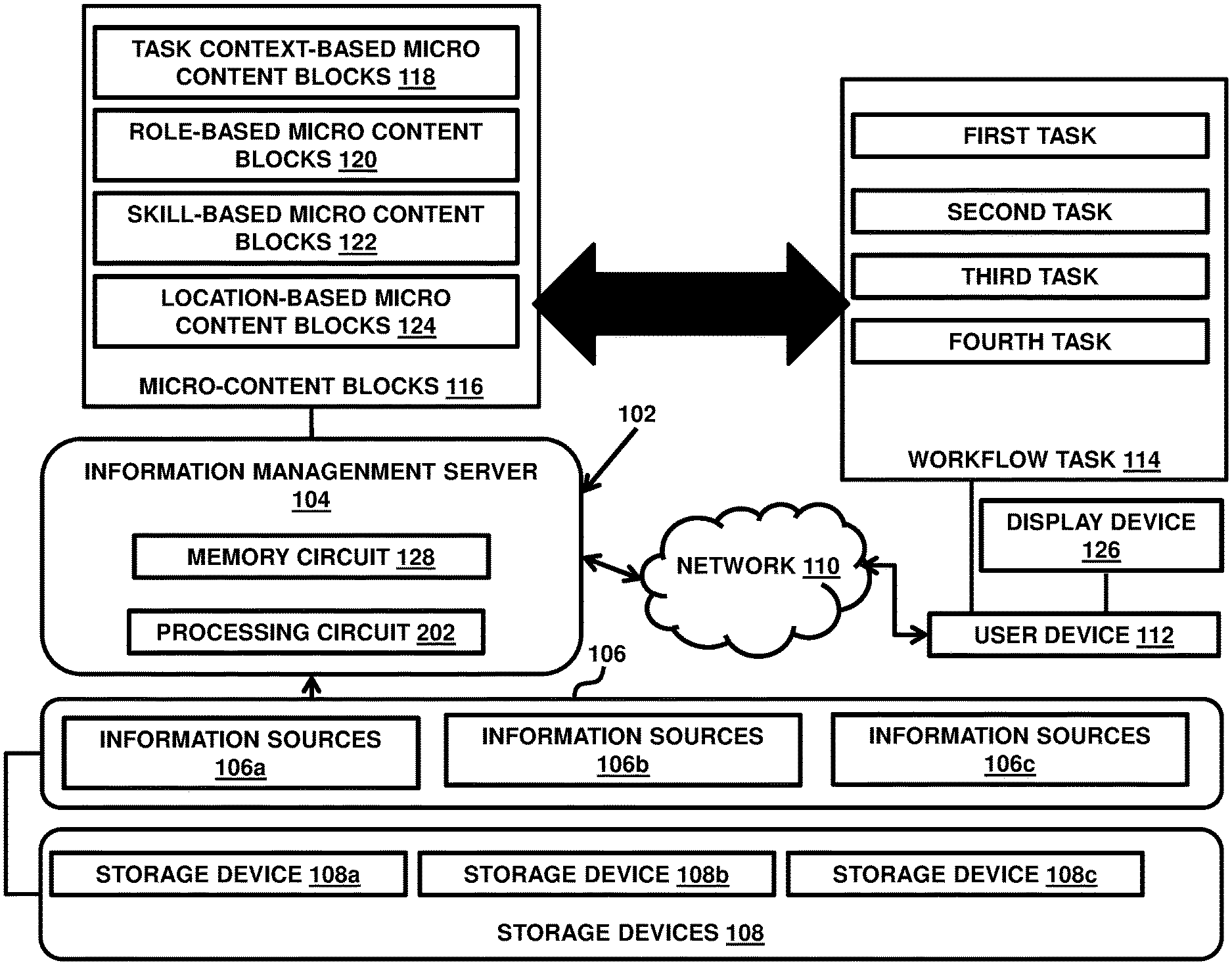

- FIG. 1 illustrates an example of a computer architecture in which various embodiments herein may operate;

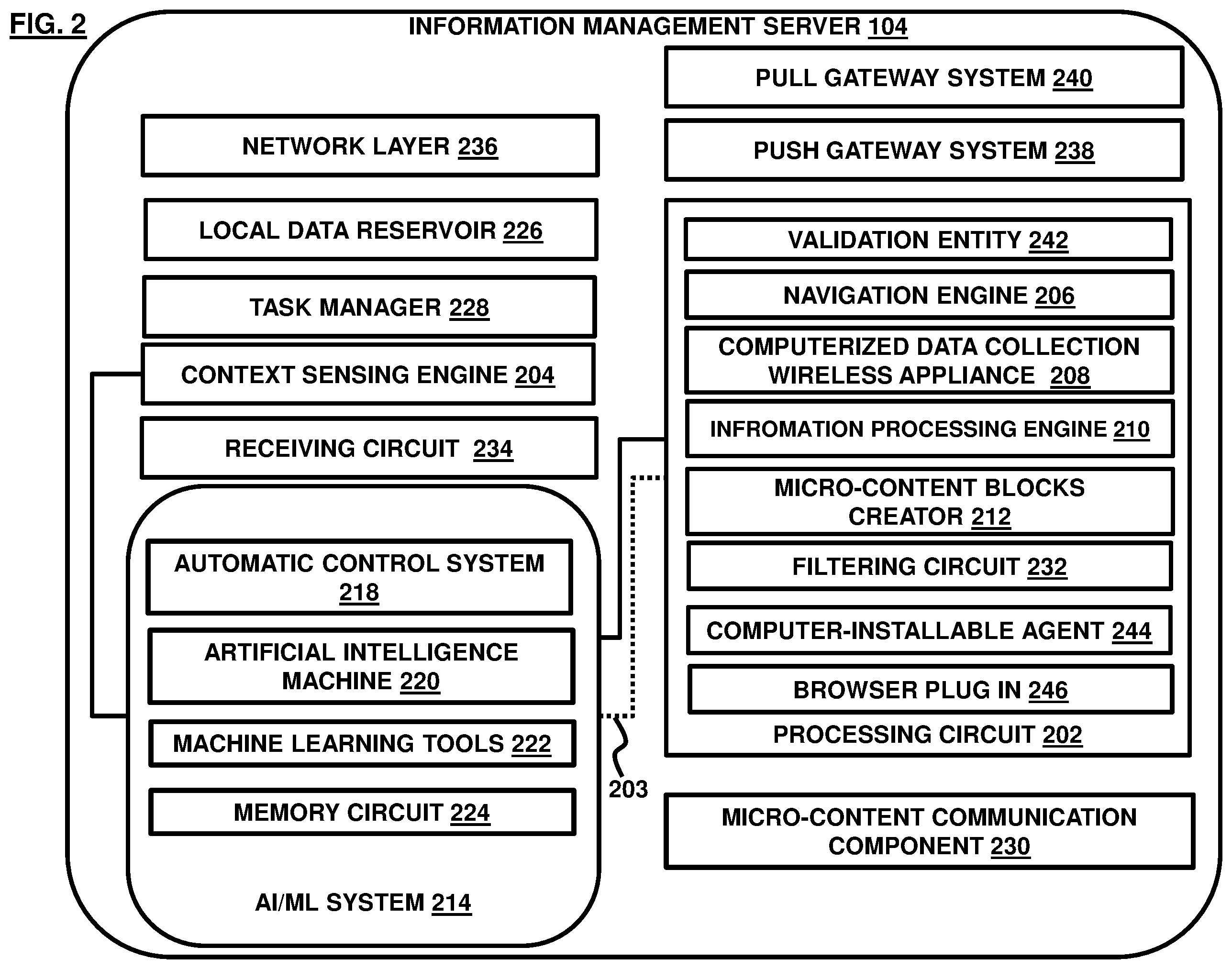

- FIG. 2 illustrates a schematic diagram of an information management server in accordance with an embodiment herein;

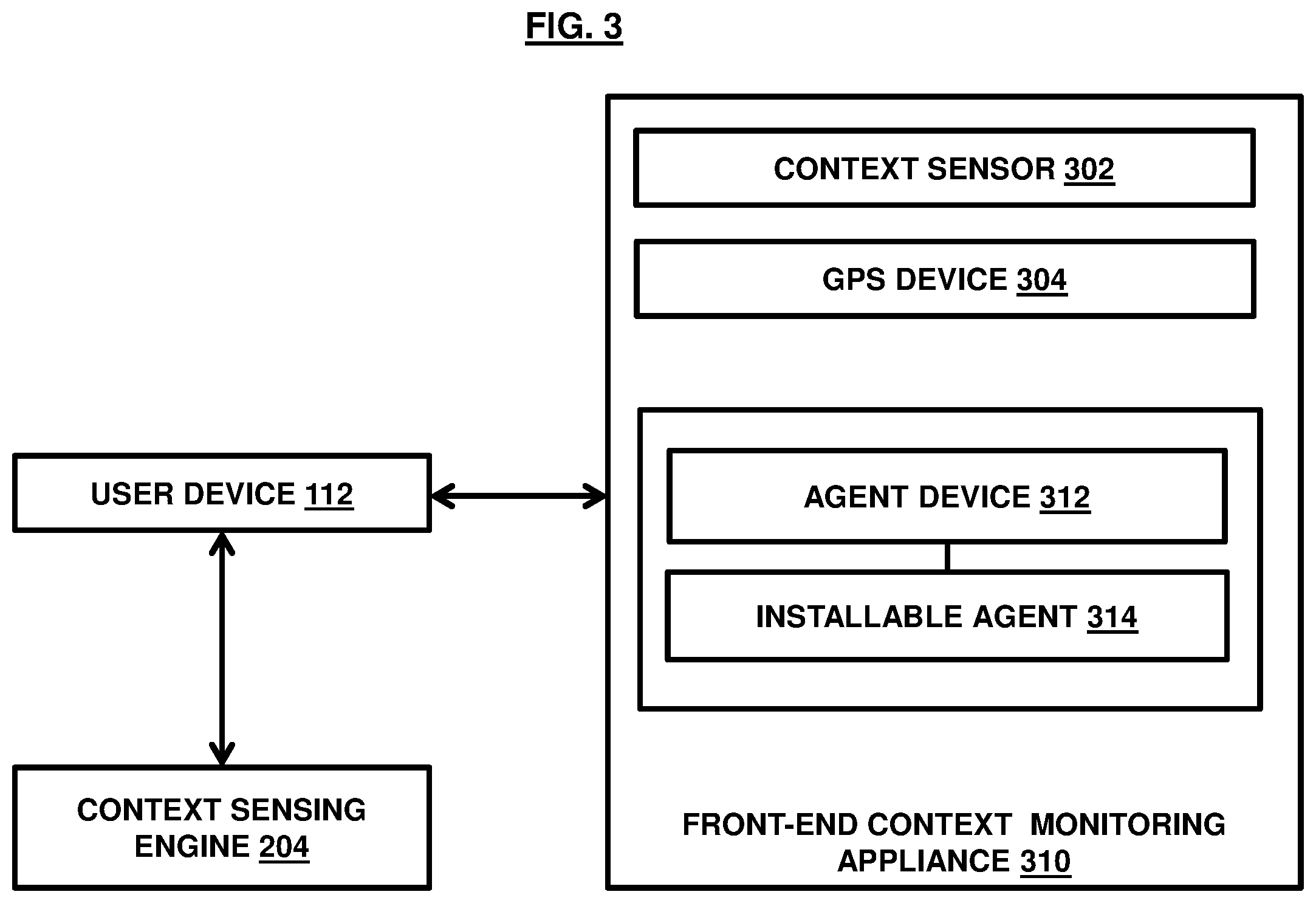

- FIG. 3 illustrates a front-end context monitoring appliance connected with a context sensing engine in accordance with an embodiment herein;

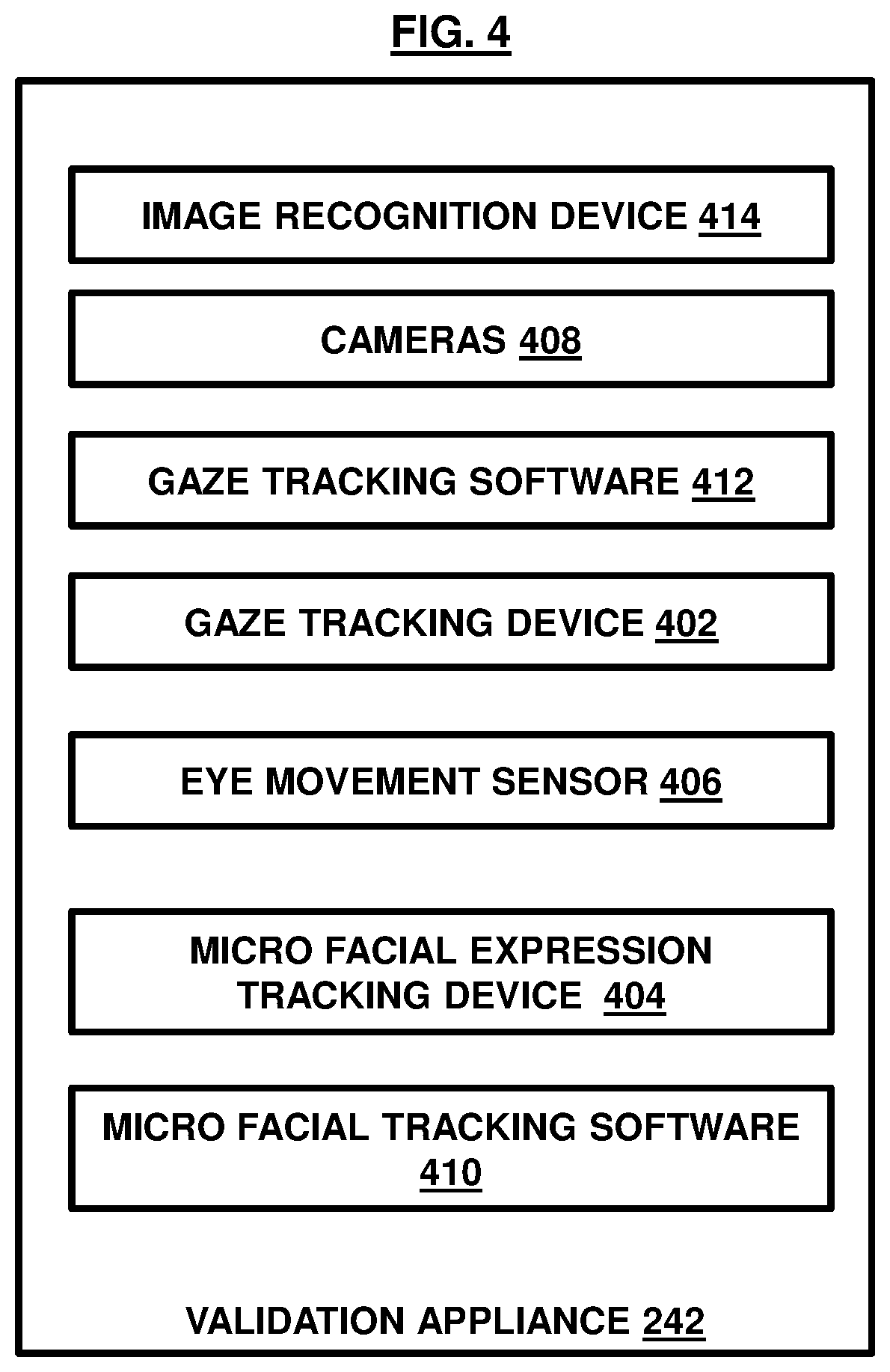

- FIG. 4 illustrates a validation appliance connected in accordance with an embodiment herein;

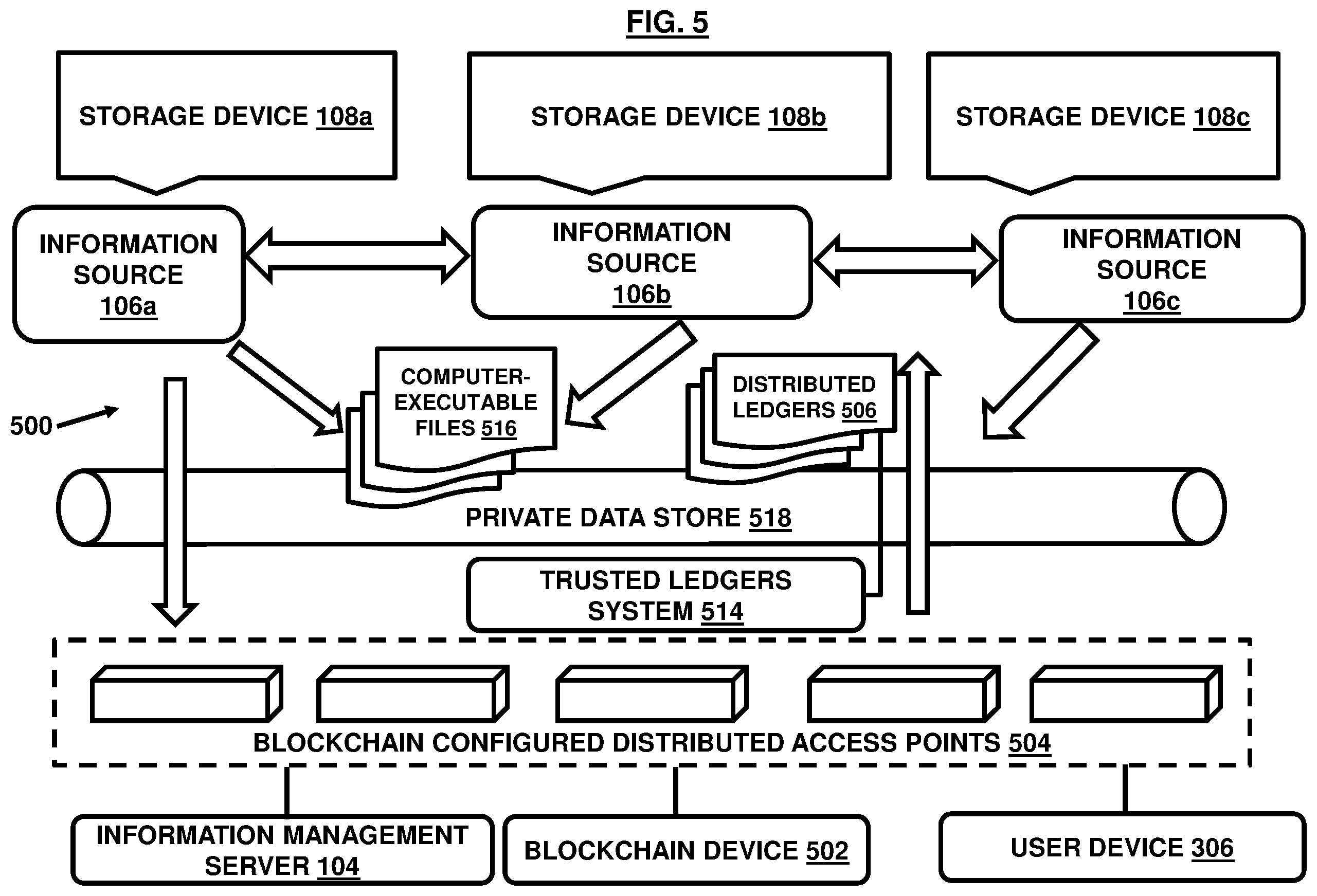

- FIG. 5 illustrates a blockchain-configured ecosystem architecture containing one or more components of the system of FIGS. 1 - 4 in accordance with an embodiment herein; and

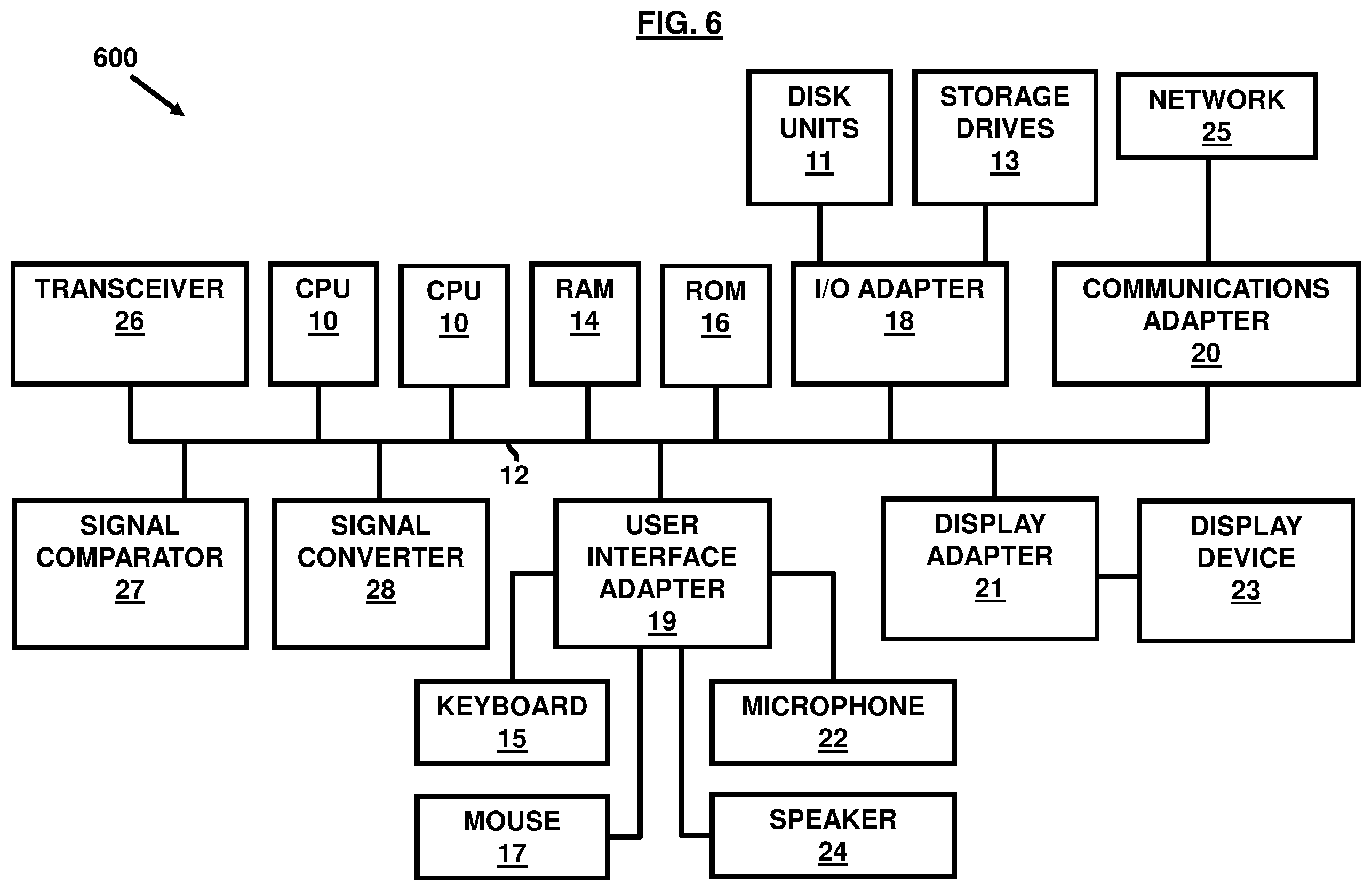

- FIG. 6 is a block diagram illustrating a computer system used in accordance with the embodiments herein.
Abstract
A system for monitoring consumption of digital content by a user includes a display device, a memory circuit maintained on one or more non-transitory computer-readable media, and a processing circuit. The processing circuit identifies the progress of the user through the digital content presented on the display device. The digital content includes a collection of micro content blocks, the progress of the user being at least dependent on one or more of a plurality of predefined parameters. The processing circuit identifies a computer-executable progress score of the user based on the progress identified for the user and defines a computer-executable reward value for the user based on the progress score of the user upon successful achieving at least a defined level of the progress. The processing circuit allows the user to redeem the computer-executable reward value as an equivalent transactional amount upon submission of the progress.
Summary of the invention
An embodiment disclosed herein includes a system for monitoring consumption of digital content by a user, the system comprising a display device; a memory circuit maintained on one or more non-transitory computer-readable media; and a processing circuit that monitors the consumption of the digital content by: identifying a progress of the user through the digital content presented on the display device, wherein the digital content comprises a collection of micro content blocks, the progress of the user being at least dependent on one or more of a plurality of predefined parameters; identifying a computer-executable progress score of the user based on the progress identified for the user; defining a computer-executable reward value for the user based on the progress score of the user upon successful achieving at least a defined level of the progress; and instructing the user to redeem the computer-executable reward value as an equivalent transactional amount upon submission of the progress.
The plurality of predefined parameters comprises a number of words read by the user, a number of characters read by the user, and an amount of time spent by the user in front of the micro content blocks. The system comprising a validation appliance that assesses a computer-executable genuineness score associated with consumption of the digital content by the user. The validation appliance comprises a gaze tracking device for continued tracking of gaze of the user through the digital content. The validation appliance comprises a micro facial expression tracking device for continued monitoring of micro facial expressions of the user through the progress of the digital content.
The micro facial expression tracking device comprises a micro facial tracking software to help process movement of facial expressions. The computer-executable genuineness score is indicative of an extent of attention paid by the user while going through the digital content such that a higher computer-executable genuineness score is indicative of a higher reward value for the user. The processing circuit monitors the consumption of the digital content by defining at least one of credits, tokens, and redeemable points for each type of the digital content based on one or more of the plurality of predefined parameters.
The full summary
The at least one of the credits, tokens, and the redeemable points are redeemable for a digital certification for professionals. The at least one of the credits, tokens, and the redeemable points are redeemable for a monetary transactional value, and wherein the monetary transactional value comprises a cryptocurrency. The at least one of the credits, tokens, and the redeemable points are redeemable for a monetary transactional value. The processing circuit further comprises a computer-installable agent for watching the progress of the user through the digital content. The computer-installable agent comprises a browser-plug in. The system comprises a front-end context monitoring appliance that generates a plurality of context inputs about the user and the user device during the delivery of the digital content to the user device.
The system comprising an AI/ML (artificial intelligence/machine learning) system remotely connected to the front-end context monitoring appliance and communicatively coupled to the context sensing engine, wherein the AI/ML system: receives a signal containing context inputs from the user device and an output generated based on the context inputs; processes the context inputs to determine a contextual pattern associated with the consumption of the digital content utilizing a plurality of intelligent and machine learning-based tools; and transmits a digital signal containing information pertinent to the contextual pattern to the processing circuit.
The micro content blocks are time-stamped before transmission by a micro-content communication component to the user device associated with the user. The system comprising a blockchain device that interacts with the user device through a plurality of blockchain configured distributed access points over a blockchain network. The blockchain device comprises a distributed trusted ledgers system containing a plurality of distributed blockchain ledgers associated with a plurality of computing terminals such that each ledger stores a copy of a computer-executable file containing the context inputs, the micro content blocks, and computer-executable evidence about the consumption of the digital content in association with and based on a respective genuineness score. The blockchain device comprises a blockchain database to store the collected context inputs, the micro content blocks, and computer-executable evidence about the consumption of the digital content in association with and based on the respective genuineness score.
Another embodiment provides a blockchain-enabled information management server for live digital streaming of digital content including one or more content blocks for a user device, the information management server comprising a memory circuit maintained on one or more non-transitory computer-readable media; a processing circuit that creates a reward based on monitoring a user by: identifying a progress of the user through the digital content presented on a display device associated with the user device, wherein the digital content comprises a collection of micro content blocks, the progress of the user being at least dependent on one or more of a plurality of predefined parameters; identifying a computer-executable progress score of the user based on the progress identified for the user; defining a computer-executable reward value for the user based on the computer-executable progress score and the computer-executable genuineness score associated with the user upon successful achieving at least a defined level of the progress; and instructing the user to redeem the computer-executable reward value as an equivalent transactional amount upon submission of the progress based on the computer-executable progress score and the computer-executable genuineness core. A validation appliance assesses a computer-executable genuineness score associated with consumption of the digital content by the user; and a precision blocks creator generates the one or more micro content blocks from a plurality of information blocks extracted from a database or from a plurality of distributed information sources. The information management server comprising a blockchain device that interacts with the validation appliance through a plurality of blockchain configured distributed access points over a blockchain network such that the validation appliance facilitates generating and storing, in a blockchain database, an evidence of the consumption of the micro content blocks in association with the computer-executable genuineness score by the user device.
These and other aspects of the embodiments herein will be better appreciated and understood when considered in conjunction with the following description and the accompanying drawings. It should be understood, however, that the following descriptions, while indicating exemplary embodiments and numerous specific details thereof, are given by way of illustration and not of limitation. Many changes and modifications may be made within the scope of the embodiments herein without departing from the spirit thereof, and the embodiments herein include all such modifications.
Independent claims
Claim 1
A system for monitoring consumption of digital content by a user, the system comprising: an information management server communicatively connected to a plurality of information sources each of which comprises a storage device that stores a plurality of digital files, the information management server comprising a memory circuit maintained on one or more non-transitory computer-readable media and a processing circuit, wherein the processing circuit: receives a digital request from a user device for the digital content; determines a collection of micro-content blocks from at least one information source from the plurality of information sources, wherein the collection of micro-content blocks corresponds to the digital content to be delivered to the user device based on the request; and transmits at least one micro content block from the collection of micro-content blocks corresponding to the digital content to the user device based on a work flow plan, wherein the work flow plan comprises a series of computerized micro-tasks to be performed on the user device by the user of the user device in a particular sequence at particular locations and at a particular time slot, wherein the user device is remotely located from the information management server; a front-end context monitoring appliance remotely connected with the information management server and the user device, wherein the front-end context monitoring appliance comprises: a Global Positioning Service (GPS) device that tracks location coordinates associated with the user device at which at least one computerized micro-task from the series of computerized micro-tasks is performed by a user of the user device; and a context sensor that generates at least one of a plurality of context inputs provided by the user on the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot, and digital messages transferred from the user device to perform the at least one micro-task at the tracked location coordinates and the time slot; an AI/ML (artificial intelligence/machine learning) system remotely connected to the front -end context monitoring appliance and the processing circuit, wherein the AI/ML system: trains a machine learning model using context inputs of different users in different contexts: receives at least one of the plurality of context inputs provided by the user on the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot, and the digital messages transferred from the user device to perform the at least one micro-task at the tracked location coordinates and the time slot; determines, using the trained machine learning model, a contextual pattern associated with the consumption of the at least one micro content block corresponding to the digital content about the user and the user device based on at least one of the plurality of context inputs provided by the user on the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot, and the digital messages transferred from the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot; and transmits a digital signal comprising the contextual pattern to the processing circuit; wherein the processing circuit: receives the digital signal comprising the contextual pattern from the AI/ML system; transmits other micro-content blocks from the collection of micro content blocks to the user device based on the contextual pattern and the work flow plan; identifies a progress of the user based on a number of micro-content blocks from the collection of micro content blocks transmitted to the user device and a plurality of predefined parameters, wherein the plurality of predefined parameters comprises a number of words read by the user, a number of characters read by the user, and an amount of time spent by the user in front of the micro content blocks; identifies a computer-executable progress score of the user based on the progress identified for the user; determines gaze information by tracking the pattern of gaze of the user using an eye movement sensor to determine whether a particular portion of content was consumed; receives a number of predefined evaluation factors comprising the gaze information of the user through the digital content, and micro facial expression information of the user through the progress of the digital content; determines a computer-executable genuineness score based on the number of predefined evaluation factors, wherein the computer-executable genuineness score is indicative of an extent of attention paid by the user while going through the digital content; determines whether the progress score of the user meets a defined level of progress; and defines a computer-executable reward value for the user based on the progress score of the user and the computer-executable genuineness score when the progress score of the user meets the defined level of progress.
All 15 claims
- A system for monitoring consumption of digital content by a user, the system comprising: an information management server communicatively connected to a plurality of information sources each of which comprises a storage device that stores a plurality of digital files, the information management server comprising a memory circuit maintained on one or more non-transitory computer-readable media and a processing circuit, wherein the processing circuit: receives a digital request from a user device for the digital content; determines a collection of micro-content blocks from at least one information source from the plurality of information sources, wherein the collection of micro-content blocks corresponds to the digital content to be delivered to the user device based on the request; and transmits at least one micro content block from the collection of micro-content blocks corresponding to the digital content to the user device based on a work flow plan, wherein the work flow plan comprises a series of computerized micro-tasks to be performed on the user device by the user of the user device in a particular sequence at particular locations and at a particular time slot, wherein the user device is remotely located from the information management server; a front-end context monitoring appliance remotely connected with the information management server and the user device, wherein the front-end context monitoring appliance comprises: a Global Positioning Service (GPS) device that tracks location coordinates associated with the user device at which at least one computerized micro-task from the series of computerized micro-tasks is performed by a user of the user device; and a context sensor that generates at least one of a plurality of context inputs provided by the user on the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot, and digital messages transferred from the user device to perform the at least one micro-task at the tracked location coordinates and the time slot; an AI/ML (artificial intelligence/machine learning) system remotely connected to the front -end context monitoring appliance and the processing circuit, wherein the AI/ML system: trains a machine learning model using context inputs of different users in different contexts: receives at least one of the plurality of context inputs provided by the user on the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot, and the digital messages transferred from the user device to perform the at least one micro-task at the tracked location coordinates and the time slot; determines, using the trained machine learning model, a contextual pattern associated with the consumption of the at least one micro content block corresponding to the digital content about the user and the user device based on at least one of the plurality of context inputs provided by the user on the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot, and the digital messages transferred from the user device to perform the at least one computerized micro-task at the tracked location coordinates and the time slot; and transmits a digital signal comprising the contextual pattern to the processing circuit; wherein the processing circuit: receives the digital signal comprising the contextual pattern from the AI/ML system; transmits other micro-content blocks from the collection of micro content blocks to the user device based on the contextual pattern and the work flow plan; identifies a progress of the user based on a number of micro-content blocks from the collection of micro content blocks transmitted to the user device and a plurality of predefined parameters, wherein the plurality of predefined parameters comprises a number of words read by the user, a number of characters read by the user, and an amount of time spent by the user in front of the micro content blocks; identifies a computer-executable progress score of the user based on the progress identified for the user; determines gaze information by tracking the pattern of gaze of the user using an eye movement sensor to determine whether a particular portion of content was consumed; receives a number of predefined evaluation factors comprising the gaze information of the user through the digital content, and micro facial expression information of the user through the progress of the digital content; determines a computer-executable genuineness score based on the number of predefined evaluation factors, wherein the computer-executable genuineness score is indicative of an extent of attention paid by the user while going through the digital content; determines whether the progress score of the user meets a defined level of progress; and defines a computer-executable reward value for the user based on the progress score of the user and the computer-executable genuineness score when the progress score of the user meets the defined level of progress.
- The system of claim 1 , comprising a validation appliance that assesses the computer-executable genuineness score based on a consumption of the digital content by the user.
- The system of claim 2 , wherein the validation appliance comprises a gaze tracking device for continued tracking of the gaze information of the user corresponding to the at least one transmitted micro content block corresponding to the digital content.
- The system of claim 2 , wherein the validation appliance comprises a micro facial expression tracking device for continued monitoring of the micro facial expressions information of the user through the progress of the digital content.
- The system of claim 4 , wherein the micro facial expression tracking device comprises a micro facial tracking software to help process movement of the micro facial expressions information.
- The system of claim 2 , wherein the computer-executable genuineness score is indicative of an extent of attention paid by the user while going through the digital content such that a higher computer-executable genuineness score is indicative of a higher reward value for the user.
- The system of claim 1 , wherein the processing circuit instructs the user to redeem the computer-executable reward value as an equivalent transactional amount upon submission of the progress based on the computer-executable progress score and the computer- executable genuineness score, and wherein the processing circuit monitors the consumption of the digital content by defining at least one of credits, tokens, and redeemable points for each type of the digital content based on one or more of the plurality of predefined parameters.
- The system of claim 7 , wherein at least one of the credits, the tokens, and the redeemable points are redeemable for a digital certification for professionals.
- The system of claim 7 , wherein at least one of the credits, the tokens, and the redeemable points are redeemable for a monetary transactional value, and wherein the monetary transactional value comprises a cryptocurrency.
- The system of claim 7 , wherein at least one of the credits, the tokens, and the redeemable points are redeemable for a monetary transactional value.
- The system of claim 1 , wherein the processing circuit further comprises a computer-installable agent for watching the progress of the user based on the digital content, wherein the computer-installable agent comprises a browser-plug in.
- The system of claim 1 , wherein the micro content blocks are time-stamped before transmission by a micro-content communication component to the user device associated with the user.
- The system of claim 1 , comprising a blockchain device that interacts with the user device through a plurality of blockchain configured distributed access points over a blockchain network.
- The system of claim 13 , wherein the blockchain device comprises a distributed trusted ledgers system containing a plurality of distributed blockchain ledgers associated with a plurality of computing terminals such that each ledger stores a copy of a computer-executable file containing the context inputs, the micro content blocks, and computer-executable evidence about the consumption of the digital content in association with and based on a respective genuineness score.
- The system of claim 14 , wherein the blockchain device comprises a blockchain database to store the plurality of collected context inputs, the micro content blocks, and computer-executable evidence about the consumption of the digital content in association with and based on the respective genuineness score.
Related patents
Every patent of the System For Management Of Rewardable Computer-Controlled Content Blocks Delivery And Consumption family: US12652158B2.
Explained in plain language and in context
Patent summaries
- Improving Digital Learning with Reward-Based Progress Monitoring
Transform your digital learning ecosystem with our pioneering approach, focusing on personalization and rewarding progress
Licence or acquire US12155747B2
Available for an exclusive or non-exclusive licence, field-of-use licences included, or for acquisition. Terms on inquiry. Ask about the whole family or any one of its patents.
Or write to hello+ip@intellectualfrontiers.com. A person answers.
Questions
Is US12155747B2 available for licensing?
Yes. Intellectual Frontiers offers US12155747B2, with the rest of the System For Management Of Rewardable Computer-Controlled Content Blocks Delivery And Consumption family, for an exclusive or non-exclusive licence, field-of-use licences included. Terms are agreed on inquiry: write to hello+ip@intellectualfrontiers.com.
Can US12155747B2 be bought?
Yes. US12155747B2 is available for acquisition, alone or with its family. Terms are agreed on inquiry: write to hello+ip@intellectualfrontiers.com.
What is the status of US12155747B2?
Patented Case as of 6 November 2024, according to the USPTO record read 27 September 2026.
When does US12155747B2 expire?
7 January 2043. An estimate from Google Patents, read 9 October 2026. Fees, terminal disclaimers and later events can change it, and it is not legal advice.
What does US12155747B2 cover?
A system for monitoring consumption of digital content by a user includes a display device, a memory circuit maintained on one or more non-transitory computer-readable media, and a processing circuit. The processing circuit identifies the progress of the user through the digital content presented on the display device. The digital content includes a collection of micro content blocks, the progress A plain-language summary is at https://www.intellectualfrontiers.com/patent-summaries/improving-digital-learning-with-reward-based-progress-monitoring.
Which patents are related to US12155747B2?
It is part of the System For Management Of Rewardable Computer-Controlled Content Blocks Delivery And Consumption family, with US12652158B2.
Who invented US12155747B2 and who holds it?
Shahid N. Shah is the inventor. Intellectual Frontiers LLC holds the rights.
