US11651459B2: Computer-Controlled Precision Education And Training
In plain language
Adaptive Micro-Content Delivery for Enhanced Workflow Performance
Elevate task performance with contextual micro-content streaming. Achieve precision education through intelligent workflow automation.
Drawings
6 sheets as filed; open one to see it at full size. A figure drawn across its sheet is turned to read upright.
What the drawings show
- The embodiments herein will be better understood from the following detailed description with reference to the drawings, in which:

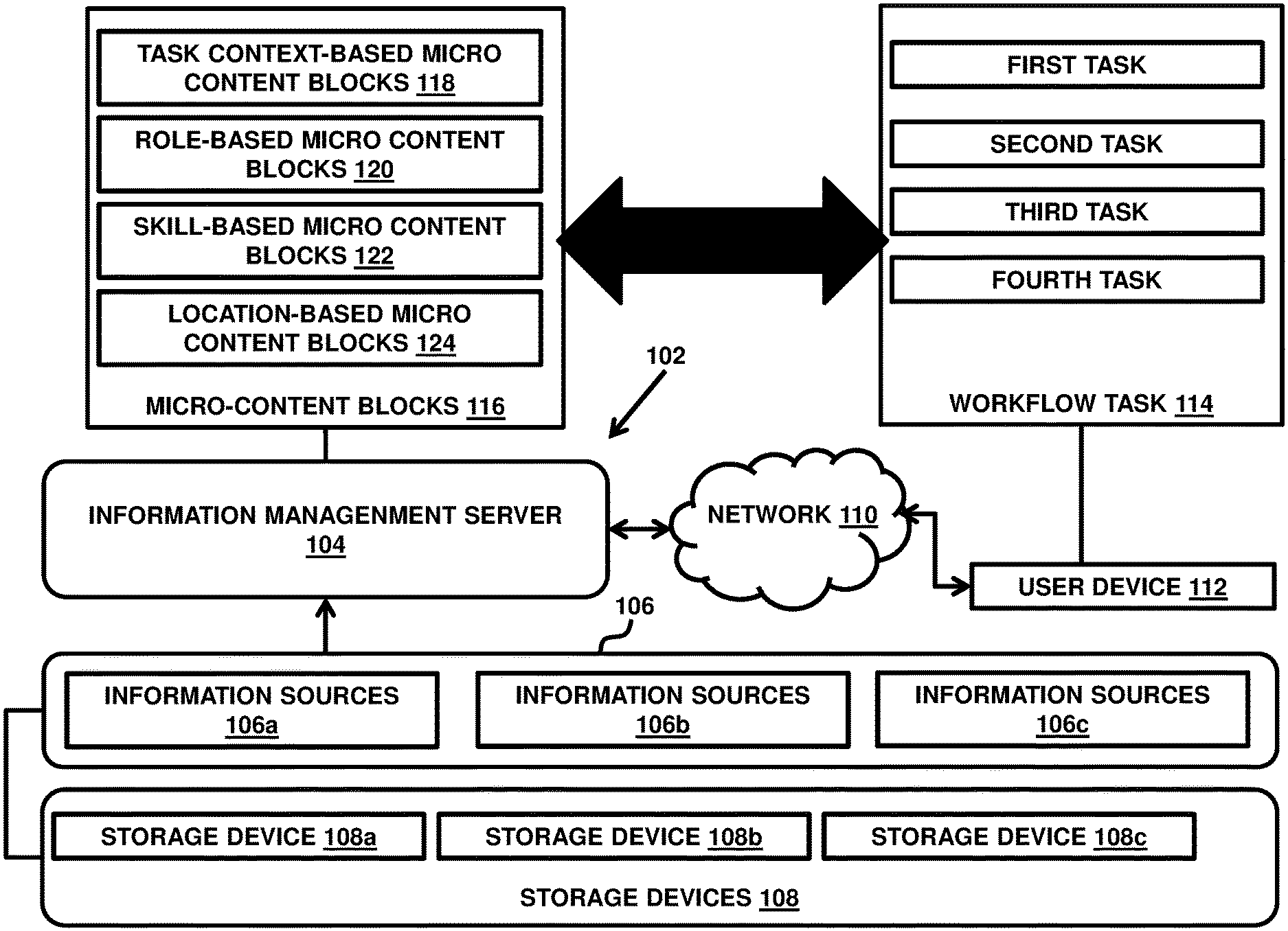

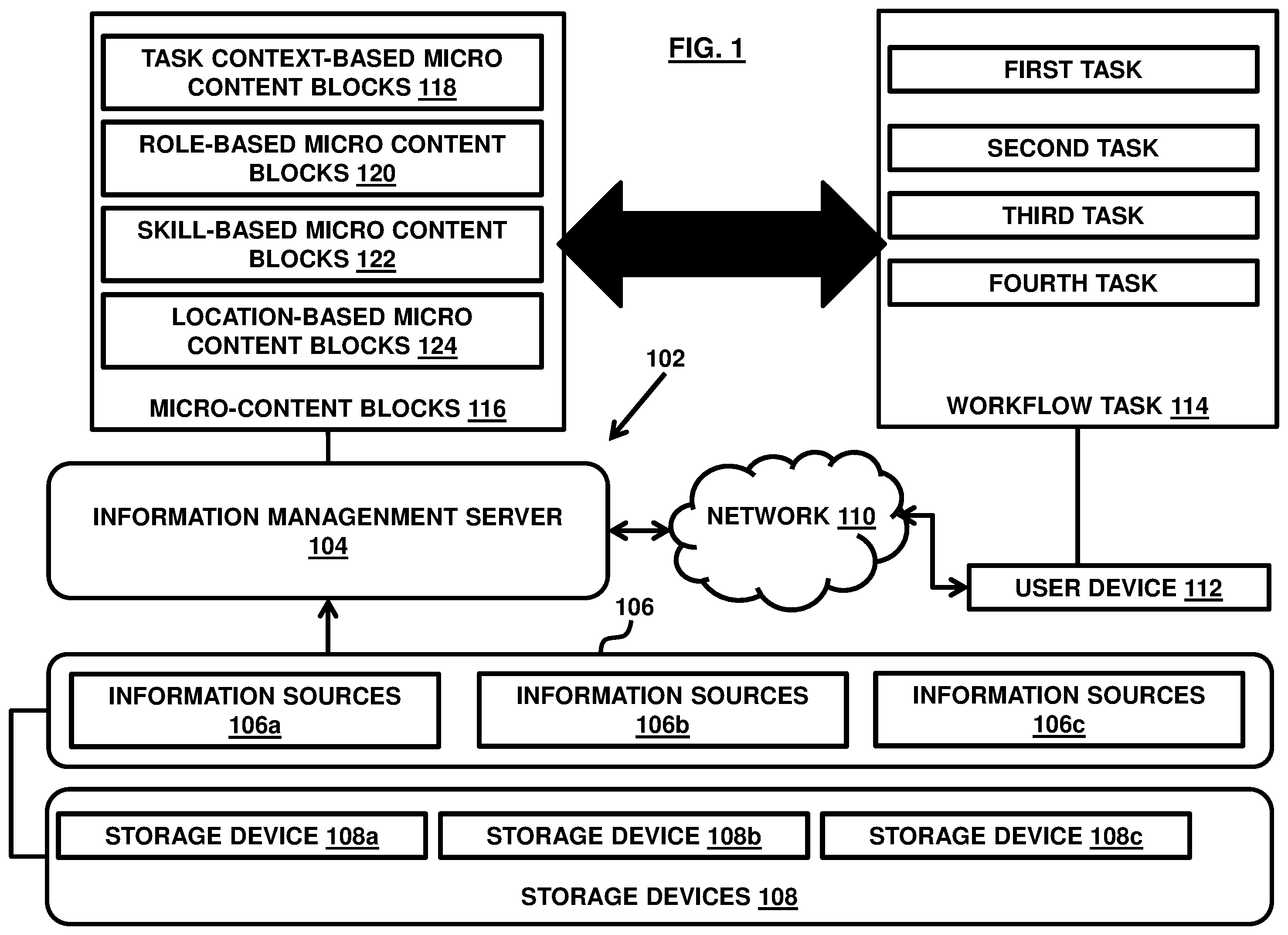

- FIG. 1 illustrates an example of a computer architecture in which various embodiments herein may operate;

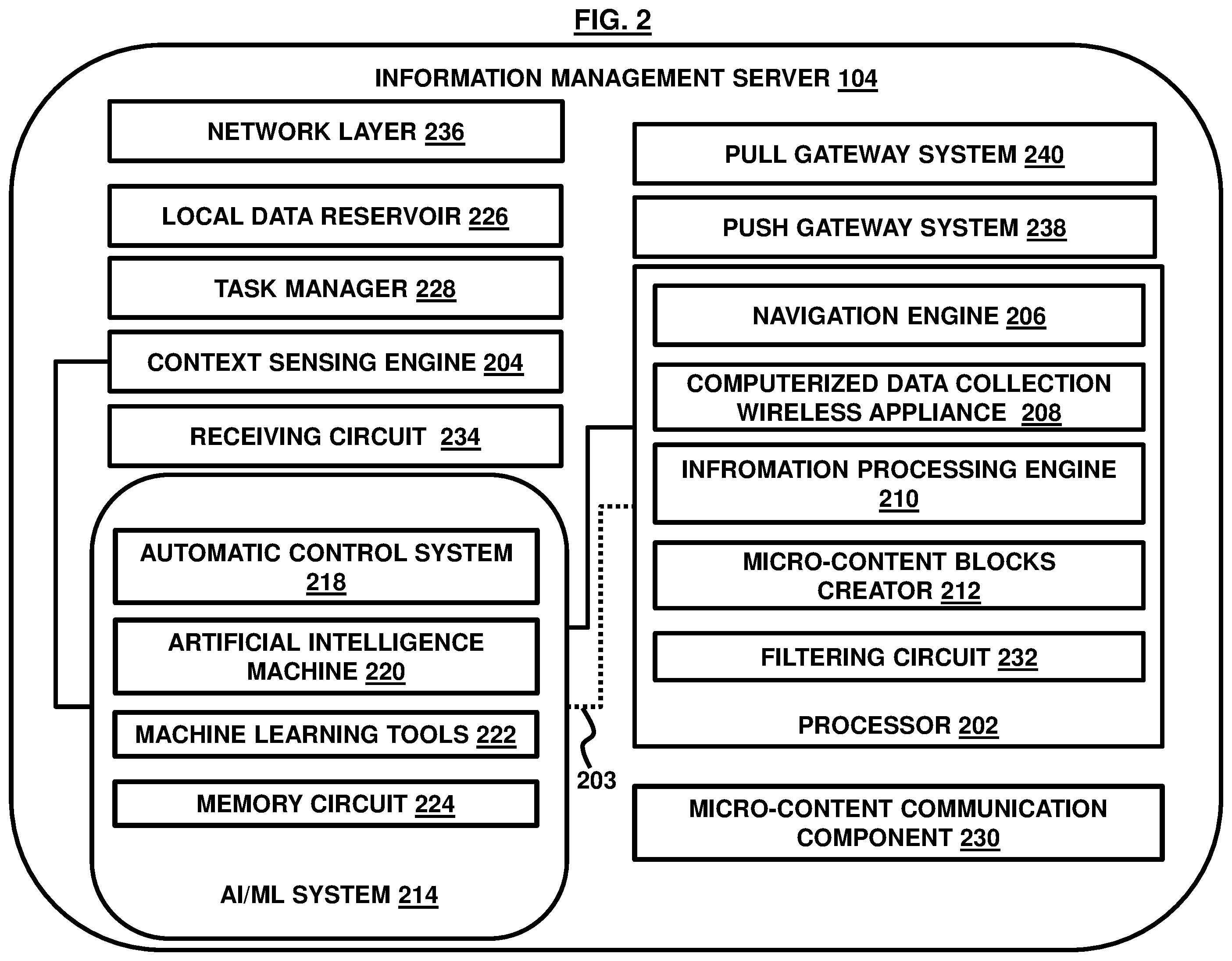

- FIG. 2 illustrates a schematic diagram of an information management server in accordance with an embodiment herein;

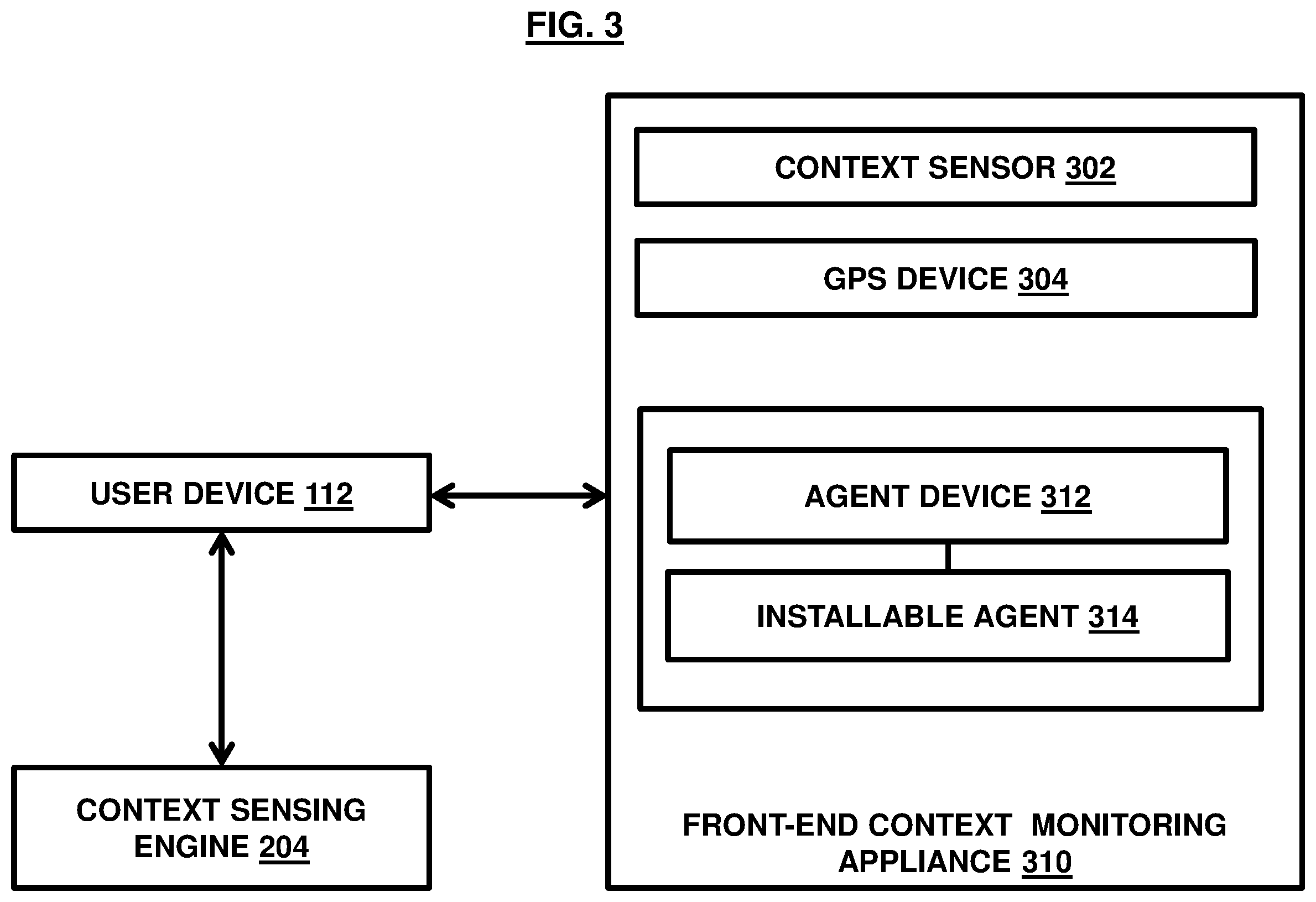

- FIG. 3 illustrates a front-end context monitoring appliance connected with a context sensing engine in accordance with an embodiment herein;

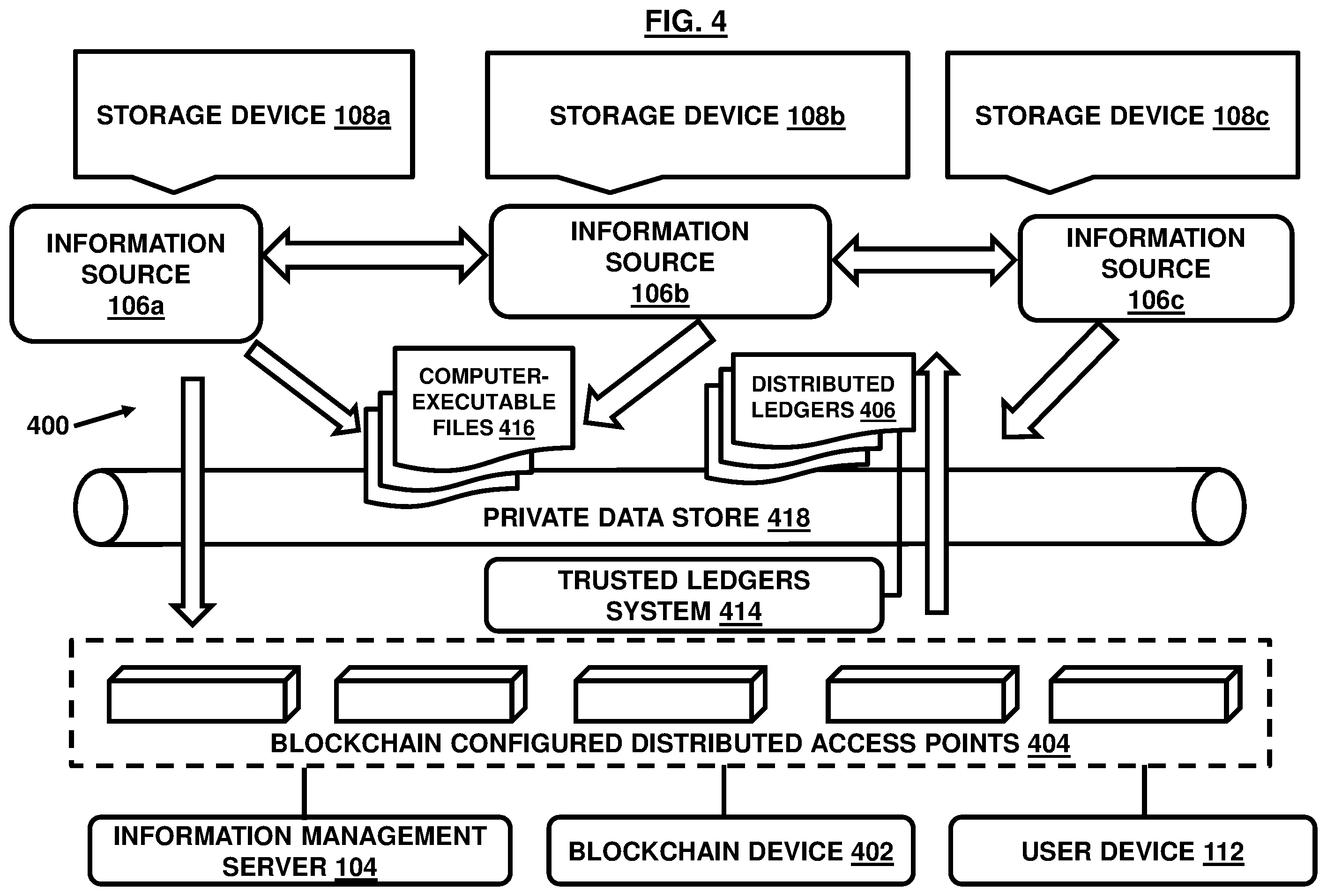

- FIG. 4 illustrates a blockchain-configured ecosystem architecture containing one or more components of the system of FIG. 1 in accordance with an embodiment herein; and

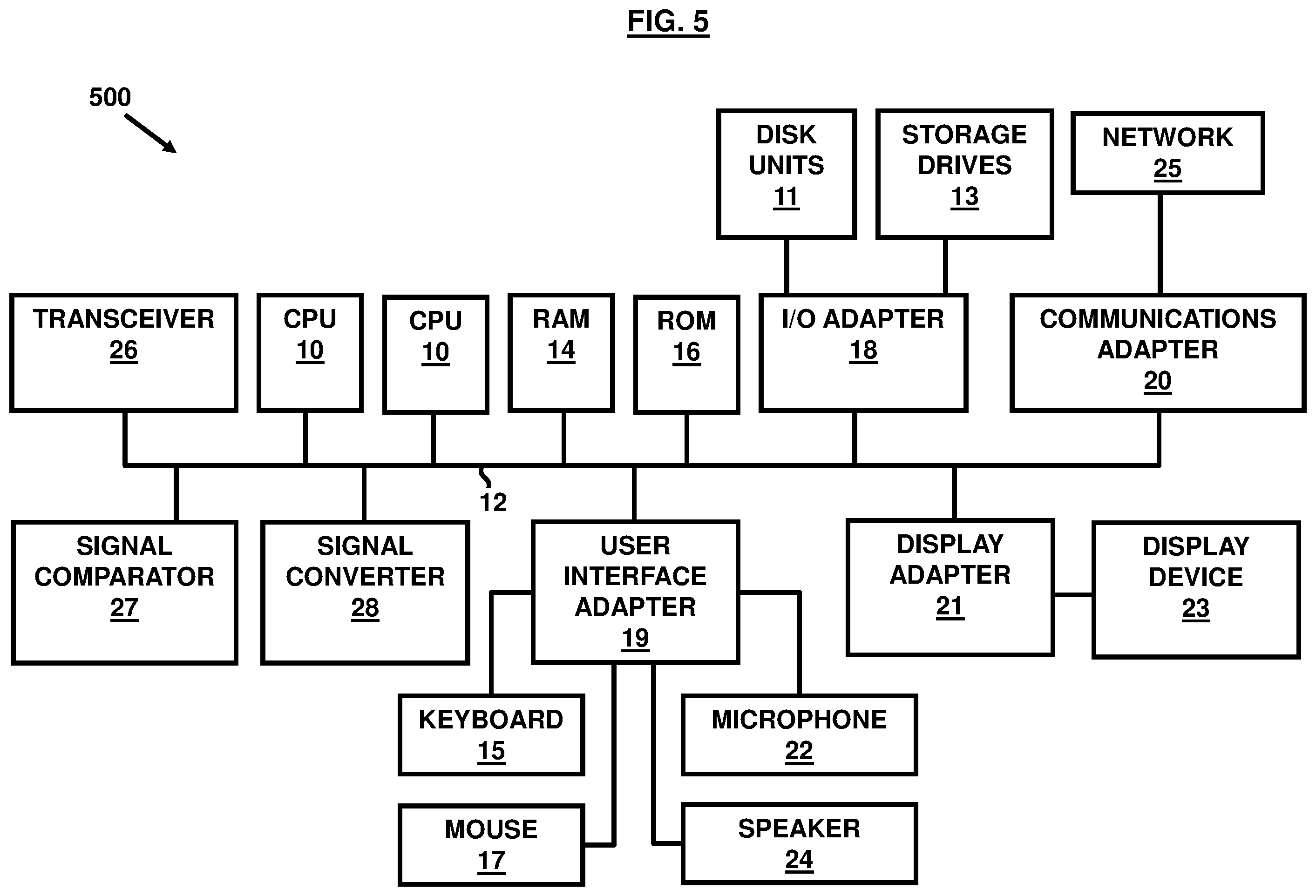

- FIG. 5 is a block diagram illustrating a computer system used in accordance with the embodiments herein.
Abstract
A system for streaming of contextual micro-content blocks for a workflow task to facilitate task performance by a user. The system includes a context sensing engine that processes one or more context inputs and generates an output based on the context inputs received from a front-end context monitoring appliance. The system includes a processing circuit having a navigation engine to navigate through digital information sources and search for information that matches one or more parameters of relevance for the workflow task. The processing circuit extracts computer-executable information files from the digital information sources that matches the one or more parameters of relevance for the workflow task and digitally processes the collected computer-executable information files into processed information blocks. The processing circuit includes a micro-content blocks creator for generating the contextual micro-content blocks from the processed information blocks. The micro-content blocks are delivered to the user when the micro-tasks are beginning.
Summary of the invention
In view of the foregoing, an embodiment herein provides a system for live digital streaming of one or more contextual micro-content blocks in real-time for a workflow task to facilitate task performance by a user. The system includes a context sensing engine that processes one or more context inputs associated with the user and converts them into processed inputs, and generates an output based on the one or more context inputs received from a front-end context monitoring appliance. The front-end context monitoring appliance is communicatively coupled to the context sensing engine at a remote location and includes a context sensor that detects a context of the task performance and a Global Positioning Service (GPS) device that detects geographical coordinates of a device associated with the user. The system further includes a processing circuit. The processing circuit includes a navigation engine that navigates through one or more digital information sources accessible over a network and searches for information that matches one or more parameters of relevance for the workflow task. The processing circuit further includes a computerized data collection wireless appliance that extracts computer-executable information files from the one or more digital information sources that matches the one or more parameters of relevance for the workflow task. The processing circuit further includes an information processing engine communicatively coupled to the computerized data collection wireless appliance. The information process engine digitally processes the collected computer-executable information files into a plurality of processed information blocks. The processing circuit further includes a micro-content blocks creator that generates the one or more contextual micro-content blocks from the plurality of processed information blocks based on the output generated by the context sensing engine. The system further includes a micro-content communication component that transmits the one or more contextual micro-content blocks relating to the workflow task to the device associated with the user at a time when the plurality of micro-tasks of the workflow task are about to start.
The system may further include an AI/ML (artificial intelligence/machine learning) system remotely connected to the front-end context monitoring appliance and communicatively coupled to the context sensing engine. The AI/ML system may receive a signal from the context sensing engine containing the processed context inputs and the output generated based on the context inputs, process the context inputs to determine a contextual pattern for the workflow task utilizing a plurality of intelligent and machine learning-based tools, and transmit a digital signal containing information pertinent to the contextual pattern to the processor.
The processing circuit may further include a filtering circuit that filters the plurality of processed information blocks based on the contextual pattern associated with the user and the workflow task as indicative through the output generated by the context sensing engine communicatively coupled to the processing circuit and the AI/ML system.
The full summary
The one or more micro-content blocks may include at least one of a context-based micro-content block, a location-based micro-content block, a role-based micro-content block, and a skills-based micro-content block such that the one or more contextual micro-content blocks matches to a plurality of micro-tasks of the workflow task.
The one or more contextual micro-content blocks may be time-stamped before transmission by the micro-content communication component to the device associated with the user for real-time delivery according to an occurrence of the plurality of micro-tasks of the workflow task.
The one or more parameters of relevance may be defined based on one or more of a plurality of digital inputs stored in a memory device, the plurality of digital inputs including a digital input indicative of nature of the workflow task, a digital input indicative of specific micro-tasks associated with the workflow task, a digital input indicative of location of execution or performance of the workflow task, a digital input indicative of actor performing the task, a digital input indicative of context of the workflow task, a digital input indicative of skill-sets of the actor performing the workflow task, a digital input indicative of role of the actor performing the workflow task.
The GPS device may retrieve real-time tracking location coordinates associated with an event occurrence for the plurality of micro-tasks of the workflow task. The GPS device may include a radio-navigation system.
The front-end context monitoring appliance may include an agent device coupled communicatively and operatively with the context sensing engine.
The agent device may be operated by deploying an installable agent, configured as a browser plugin, at the device associated with the user.
The system may further include a blockchain device that interacts with the context sensing engine through a plurality of blockchain configured distributed access points over a blockchain network.
The blockchain device may include a distributed trusted ledgers system containing a plurality of distributed blockchain ledgers associated with a plurality of computing terminals such that each ledger stores a copy of a computer-executable file containing the context inputs and the one or more contextual micro-content blocks associated with the workflow task.
The blockchain device may include a blockchain database that stores the collected computer-executable information files from the one or more digital information sources and the one or more contextual micro-content blocks.
Another embodiment herein provides a blockchain-enabled information management server for live digital streaming of one or more contextual micro-content blocks in real-time for a workflow task to facilitate task performance by a user. The information management server includes a context sensing engine that may process one or more context inputs associated with the user and convert them into processed inputs, and generate an output based on the one or more context inputs received from a front-end context monitoring appliance. The front-end context monitoring appliance may be communicatively coupled to the context sensing engine at a remote location. The front-end context monitoring appliance may include a context sensor that detects a context of the task performance and a GPS device that detects geographical coordinates of a device associated with the user. The system further includes a processing circuit. The processing circuit includes a navigation engine that navigates through one or more digital information sources accessible over a network and searches for information that matches one or more parameters of relevance for the workflow task. The processing circuit further includes a computerized data collection wireless appliance that extracts computer-executable information files from the one or more digital information sources that matches the one or more parameters of relevance for the workflow task. The processing circuit includes an information processing engine communicatively coupled to the computerized data collection wireless appliance. The information processing engine digitally processes the collected computer-executable information files into a plurality of processed information blocks. The processing circuit includes a micro-content blocks creator for generating the one or more contextual micro-content blocks from the plurality of processed information blocks based on the output generated by the context sensing engine.
The system further includes a micro-content communication component that transmits the one or more contextual micro-content blocks relating to the workflow task to the device associated with the user at a time when the plurality of micro-tasks of the workflow task are about to start. The system further includes a blockchain device that interacts with the context sensing engine through a plurality of blockchain configured distributed access points over a blockchain network.
The blockchain device may include a distributed trusted ledgers system containing a plurality of distributed blockchain ledgers associated with a plurality of computing terminals such that each ledger stores a copy of a computer-executable file containing the context inputs and the one or more contextual micro-content blocks associated with the workflow task.
These and other aspects of the embodiments herein will be better appreciated and understood when considered in conjunction with the following description and the accompanying drawings. It should be understood, however, that the following descriptions, while indicating exemplary embodiments and numerous specific details thereof, are given by way of illustration and not of limitation. Many changes and modifications may be made within the scope of the embodiments herein without departing from the spirit thereof, and the embodiments herein include all such modifications.
Independent claims
Claim 1
A method for live digital streaming of one or more contextual micro-content blocks in real-time for a workflow task to facilitate task performance by a user, wherein the method comprises: navigating through one or more digital information sources accessible over a network and searches for information that matches one or more parameters of relevance for the workflow task; extracting computer-executable information files from the one or more digital information sources that matches the one or more parameters of relevance for the workflow task; digitally processing the extracted computer-executable information files into a plurality of processed information blocks; generating one or more contextual micro-content blocks from the plurality of processed information blocks; and transmitting the one or more contextual micro-content blocks relating to the workflow task to a device associated with the user at a time when a plurality of micro-tasks of the workflow task are about to start.
Claim 12
A system for live digital streaming of one or more contextual micro-content blocks in real-time for a workflow task to facilitate task performance by a user, wherein the system comprises: an information management server connected to a plurality of user devices associated with a plurality of users, wherein each of the user devices performs the workflow task at a particular time and location such that performance of the workflow task occurs at a location remote from a location of the information management server, and wherein the workflow task comprises a plurality of micro-tasks performed in a particular sequence at particular locations and particular time slots, wherein the information management server comprises a processor to: navigate through a plurality of information sources distributed remotely from one another and storing digital files executable by the information management server in a plurality of respective storage devices; monitor and receive details pertinent to the workflow task based on certain inputs received from at least one of the user devices and certain automated transfer of digital messages from the user devices; and transmit one or more micro-content blocks to the user device based on at least one of the inputs received and the digital messages, wherein the micro-content blocks indicate the workflow task along with the respective micro-tasks and a context of the user device, user, and the performance of the workflow task.
All 17 claims
- A method for live digital streaming of one or more contextual micro-content blocks in real-time for a workflow task to facilitate task performance by a user, wherein the method comprises: navigating through one or more digital information sources accessible over a network and searches for information that matches one or more parameters of relevance for the workflow task; extracting computer-executable information files from the one or more digital information sources that matches the one or more parameters of relevance for the workflow task; digitally processing the extracted computer-executable information files into a plurality of processed information blocks; generating one or more contextual micro-content blocks from the plurality of processed information blocks; and transmitting the one or more contextual micro-content blocks relating to the workflow task to a device associated with the user at a time when a plurality of micro-tasks of the workflow task are about to start.
- The method of claim 1 , comprising: digitally processing one or more context inputs associated with the user; converting the one or more context inputs into processed inputs; and generating an output based on the one or more context inputs received from a front-end context monitoring appliance.
- The method of claim 2 , comprising: receiving a signal containing the context inputs and the output generated based on the context inputs; digitally processing the context inputs to determine a contextual pattern for the workflow task utilizing a plurality of intelligent and machine learning-based tools; and transmitting a digital signal containing information pertinent to the contextual pattern to the device associated with the user.
- The method of claim 3 , comprising filtering the plurality of processed information blocks based on the contextual pattern associated with the user and the workflow task.
- The method of claim 2 , wherein the front-end context monitoring appliance comprises an agent device operatively coupled with the context sensing engine.
- The method of claim 5 , wherein the agent device is operated by deploying an installable agent, configured as a browser plugin, at the device associated with the user.
- The method of claim 1 , comprising: detecting a context of the task performance; and detecting geographical coordinates of the device associated with the user.
- The method of claim 1 , wherein the one or more micro-content blocks comprises at least one of a context-based micro-content block, a location-based micro-content block, a role-based micro-content block, and a skills-based micro-content block such that the one or more contextual micro-content blocks matches to a plurality of micro-tasks of the workflow task.
- The method of claim 1 , wherein the one or more contextual micro-content blocks are time-stamped before transmission by the micro-content communication component to the device associated with the user for real-time delivery according to an occurrence of the plurality of micro-tasks of the workflow task.
- The method of claim 1 , comprising defining the one or more parameters of relevance based on one or more of a plurality of digital inputs stored in a memory device, wherein the plurality of digital inputs comprising a digital input indicative of nature of the workflow task, wherein the digital input indicative of at least one of specific micro-tasks associated with the workflow task, location of execution or performance of the workflow task, actor performing the task, a digital input indicative of context of the workflow task, skill-sets of the actor performing the workflow task, and role of the actor performing the workflow task.
- The method of claim 1 , comprising retrieving real-time tracking location coordinates associated with an event occurrence for the plurality of micro-tasks of the workflow task.
- A system for live digital streaming of one or more contextual micro-content blocks in real-time for a workflow task to facilitate task performance by a user, wherein the system comprises: an information management server connected to a plurality of user devices associated with a plurality of users, wherein each of the user devices performs the workflow task at a particular time and location such that performance of the workflow task occurs at a location remote from a location of the information management server, and wherein the workflow task comprises a plurality of micro-tasks performed in a particular sequence at particular locations and particular time slots, wherein the information management server comprises a processor to: navigate through a plurality of information sources distributed remotely from one another and storing digital files executable by the information management server in a plurality of respective storage devices; monitor and receive details pertinent to the workflow task based on certain inputs received from at least one of the user devices and certain automated transfer of digital messages from the user devices; and transmit one or more micro-content blocks to the user device based on at least one of the inputs received and the digital messages, wherein the micro-content blocks indicate the workflow task along with the respective micro-tasks and a context of the user device, user, and the performance of the workflow task.
- The system of claim 12 , wherein the one or more micro-content blocks comprises: at least one of a context-based micro-content block, a location-based micro-content block, a role-based micro-content block, and a skills-based micro-content block such that one or more contextual micro-content blocks matches to a plurality of micro-tasks of the workflow task.
- The system of claim 12 , wherein the micro-content blocks comprise information elements generated by mapping onto each micro-task for relevancy, a role of the user interacting for executing a specific micro-task for relevancy, and a level of experience or skill sets of the user for a particular micro-task that is contained within the workflow task such that one or more contextual micro-content blocks match to the plurality of micro-tasks of the workflow task.
- The system of claim 12 , wherein the micro-content blocks comprise a set of structured digital information blocks that are relevant and related and deeply maps onto various micro-tasks when looked in association with skillets of the user, a location of the user, a nature of the micro-tasks and an overall workflow task, and a role of the user in various micro-tasks.
- The system of claim 12 , comprising a blockchain device that interacts with the information management server through a plurality of blockchain configured distributed access points over a blockchain network.
- The system of claim 16 , wherein the blockchain device comprises a distributed trusted ledgers system containing a plurality of distributed blockchain ledgers associated with a plurality of computing terminals such that each ledger stores a copy of a computer-executable file containing context inputs and the one or more contextual micro-content blocks associated with the workflow task.
Related patents
- Continuation of US11423500B2 Computer-Controlled Precision Education And Training
- Continued by US12572993B2 Computer-Controlled Precision Education And Training
Every patent of the Computer-Controlled Precision Education And Training family: US11423500B2, US12572993B2.
