US10089492B2: Patient Navigation And Situational Awareness Derived Through Context-Sensitive Information Blocks Delivery

Drawings

‹1 of 11›

11 sheets as filed; open one to see it at full size. A figure drawn across its sheet is turned to read upright.

What the drawings show

• In the drawings, like numerals describe similar components substantially throughout the several views. The drawings illustrate generally, by way of an example, but not by a way of limitation, various embodiments.

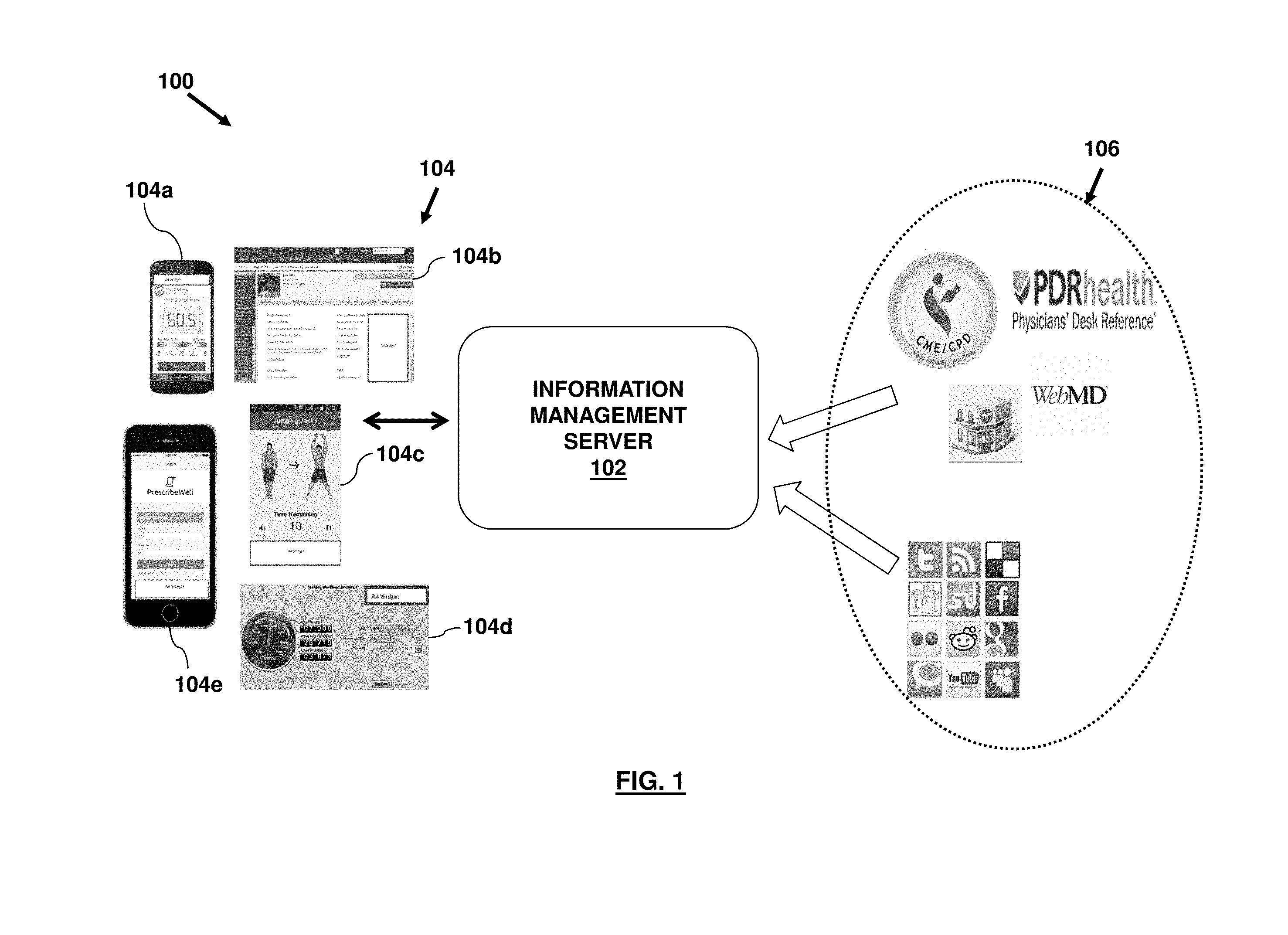

• FIG. 1 illustrates architecture for managing and delivering context-based information blocks in accordance with an embodiment herein;

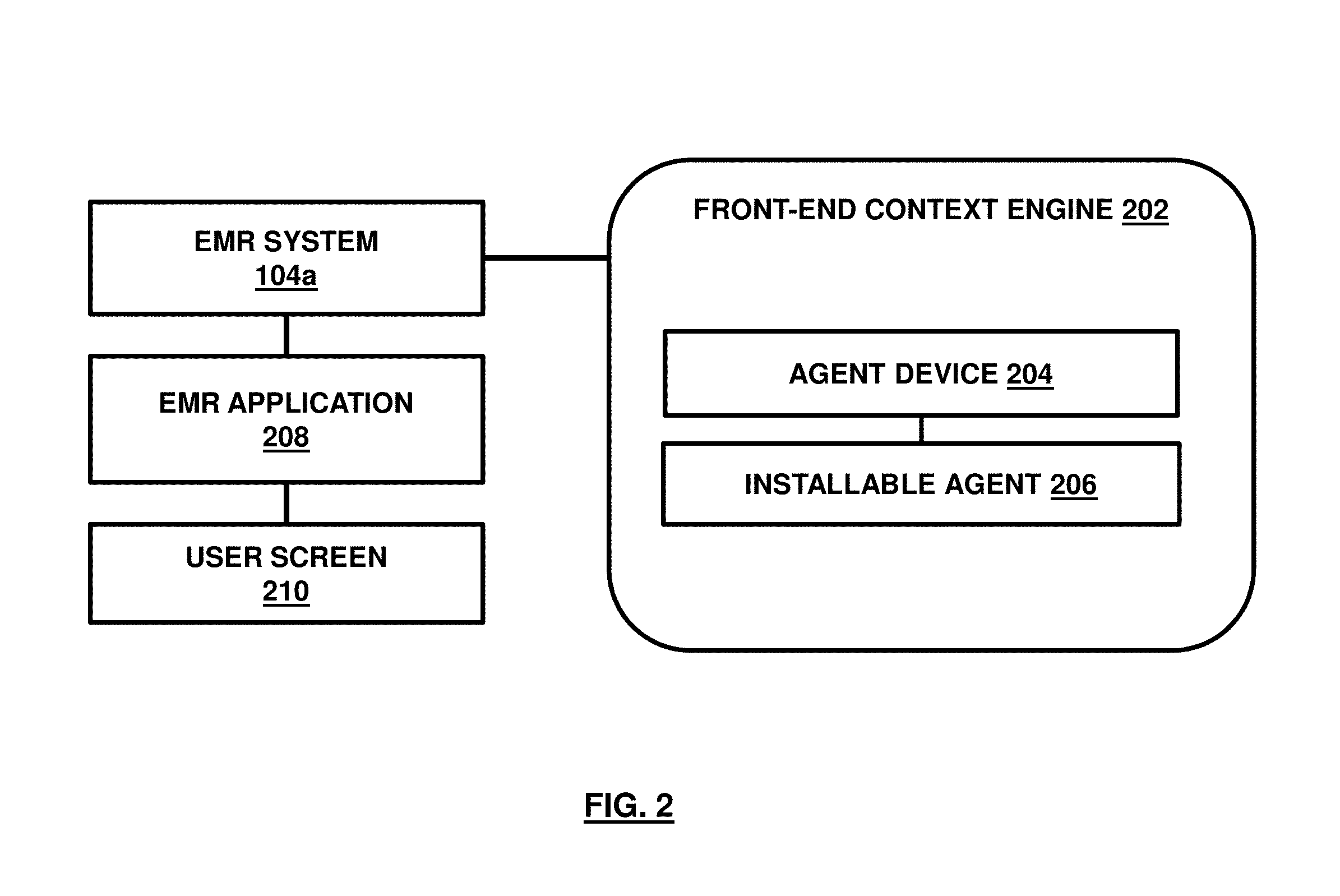

• FIG. 2 illustrates an EMR system including or communicatively and/or operatively coupled with a context engine in accordance with an embodiment herein;

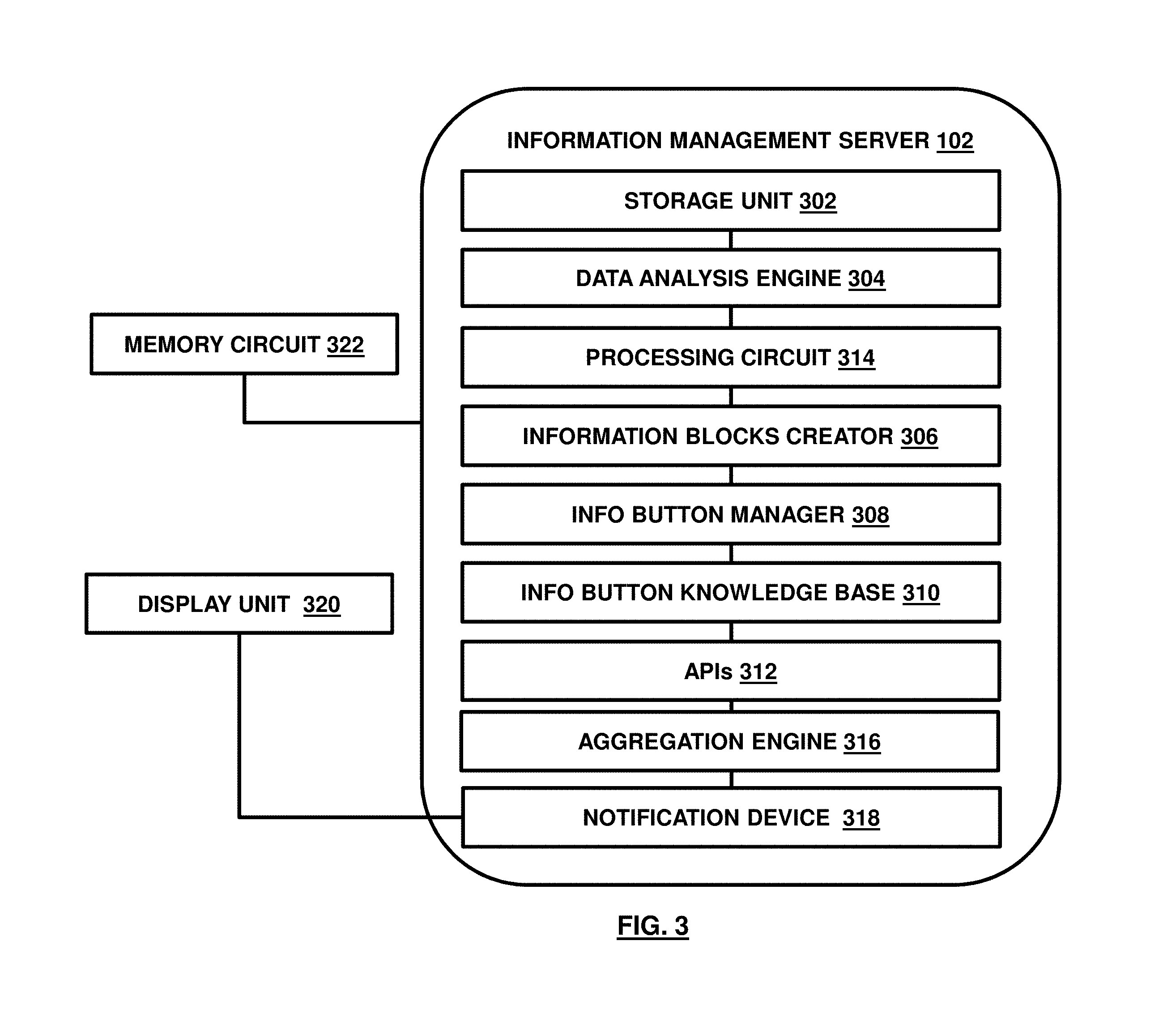

• FIG. 3 illustrates an information management server in accordance with an embodiment herein;

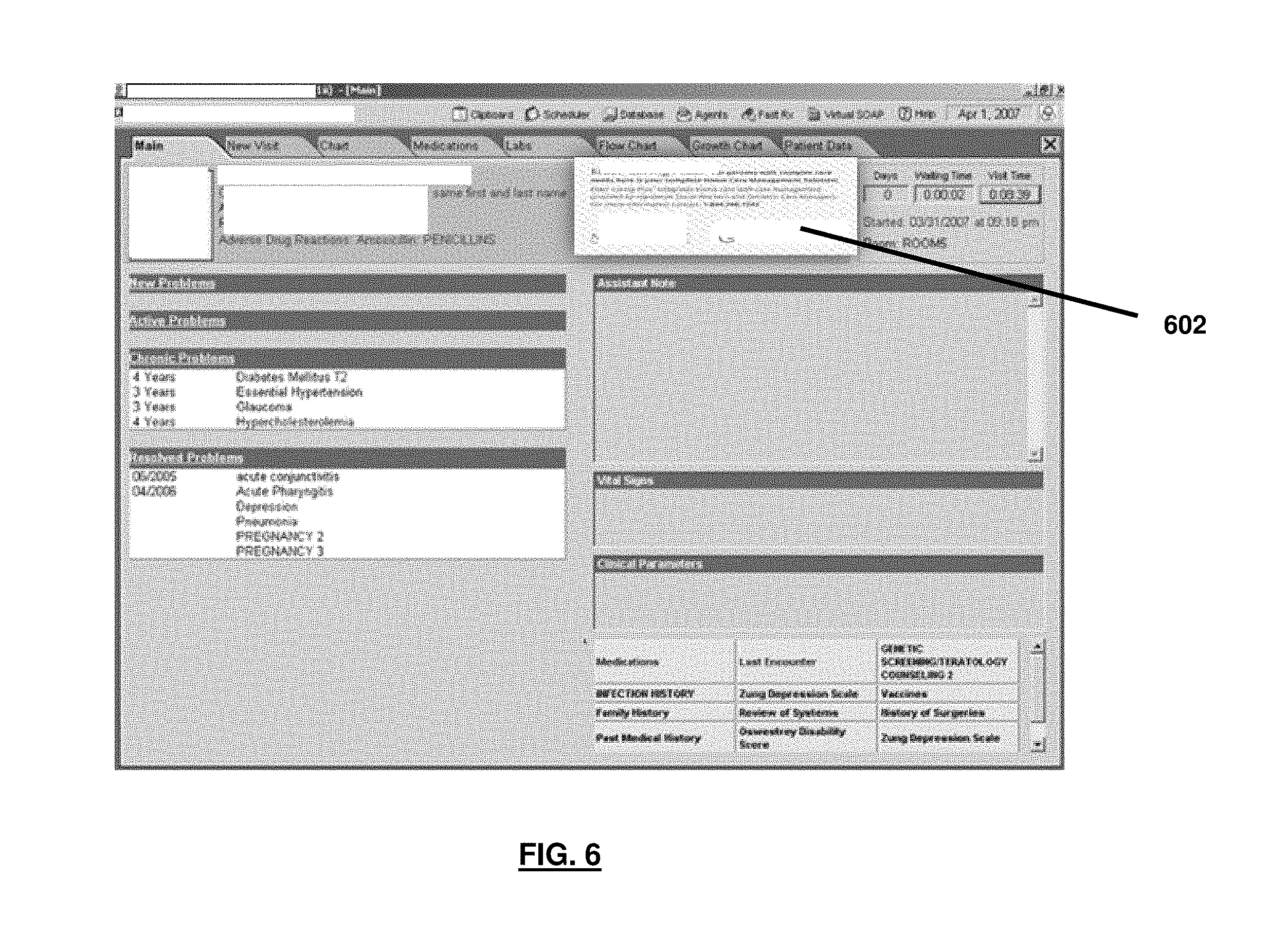

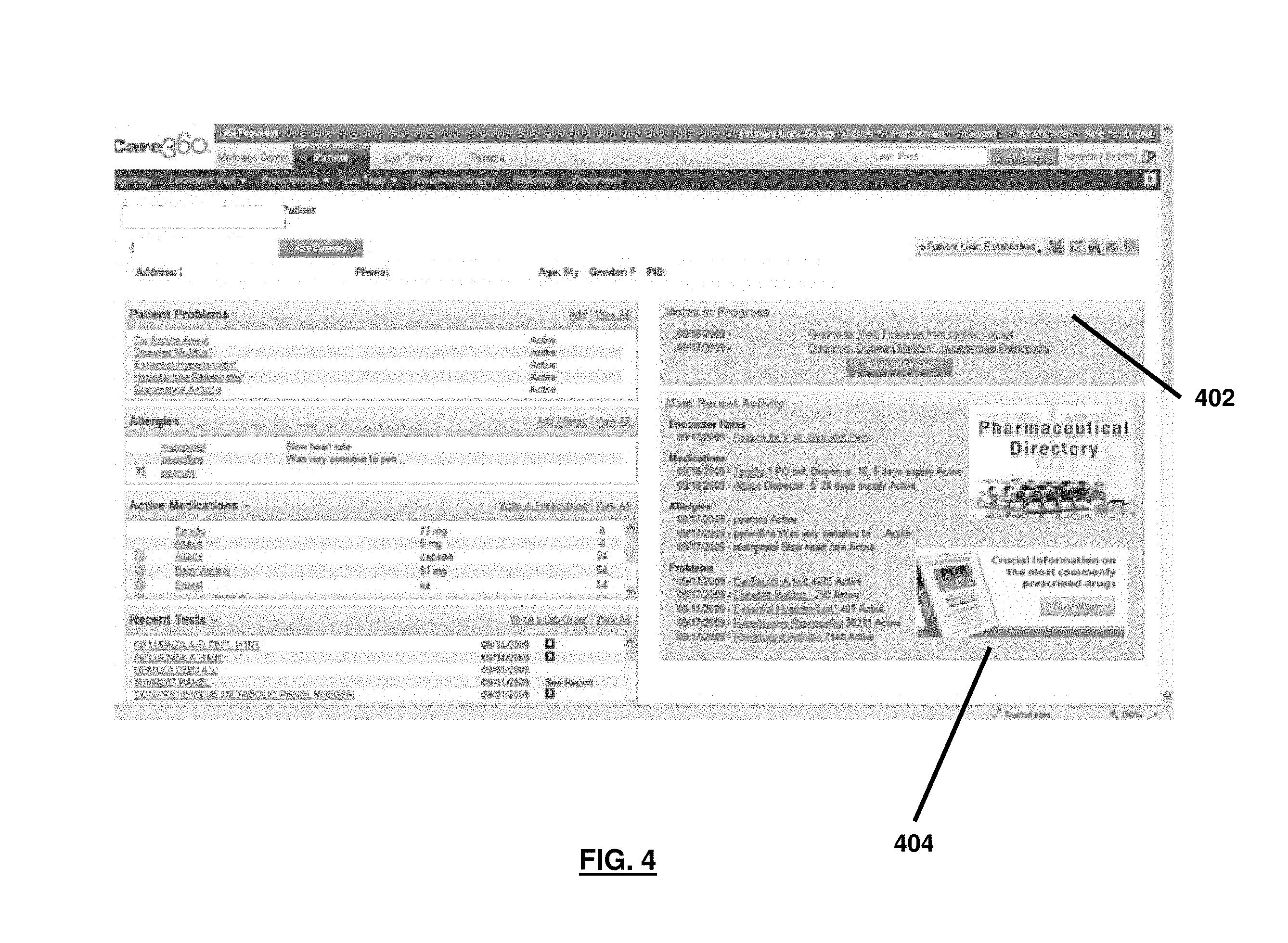

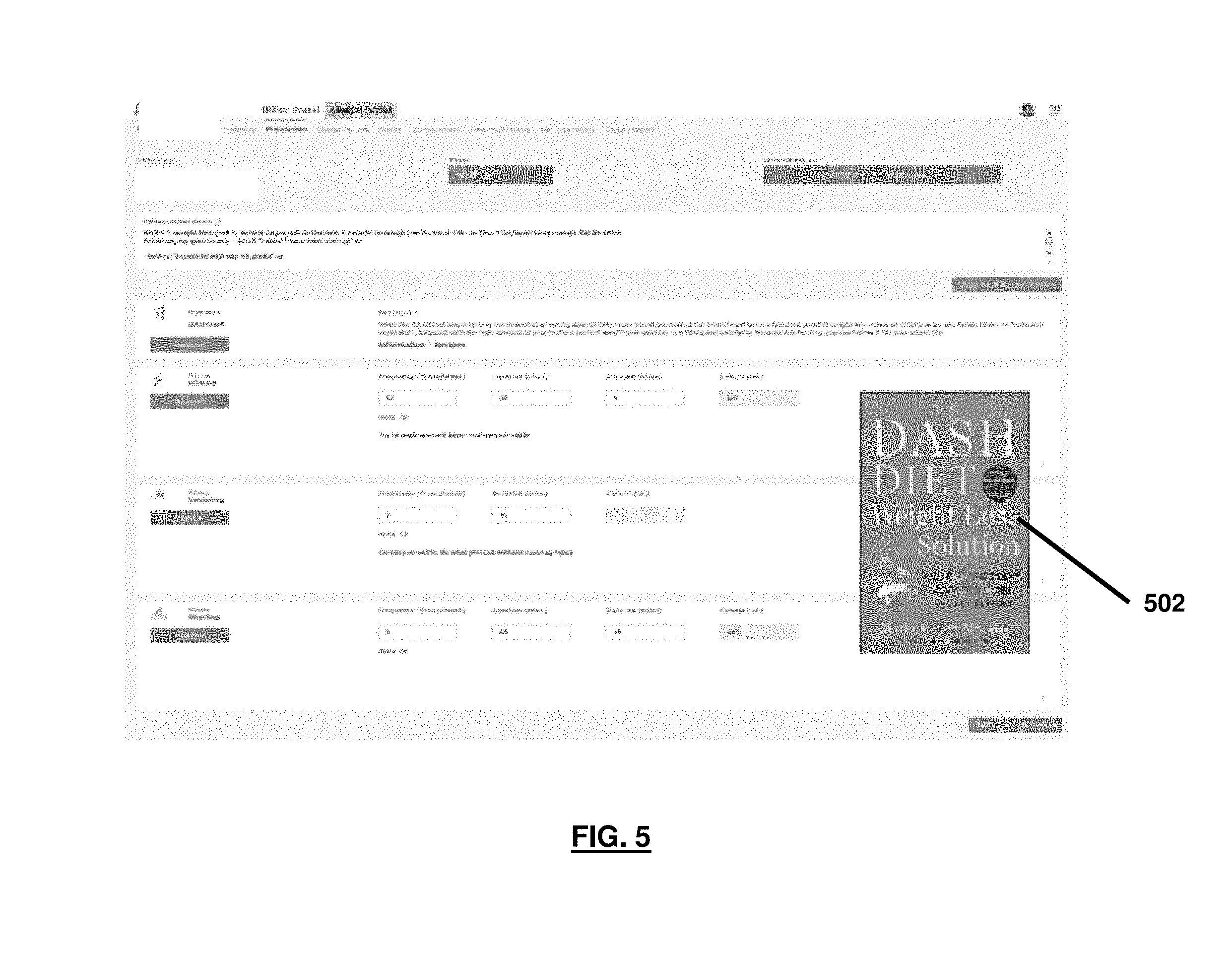

• FIGS. 4-6 illustrate exemplary information blocks presented to a user screen associated with an EMR application by an information management server in accordance with an embodiment herein;

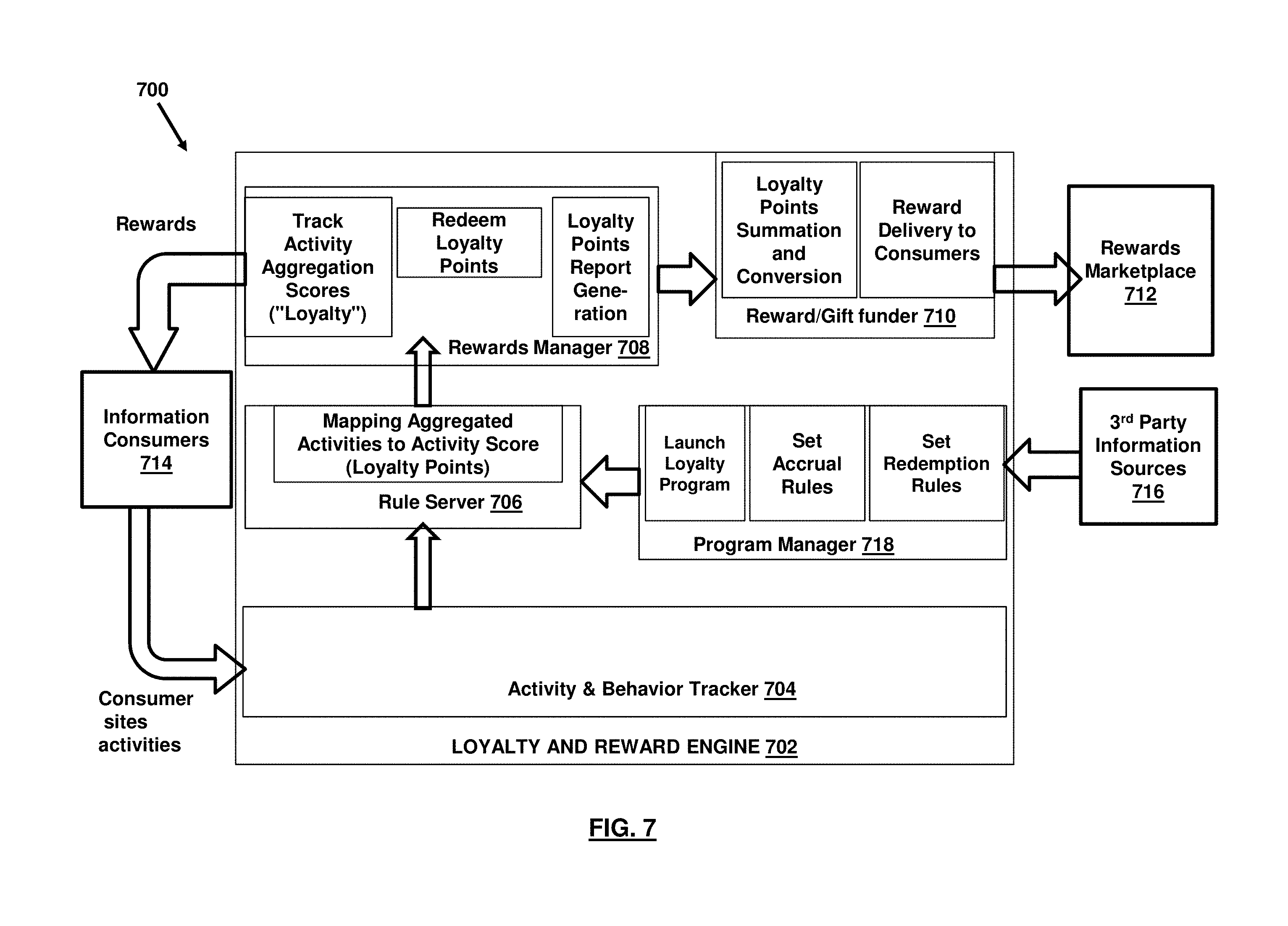

• FIG. 7 illustrates an exemplary ecosystem for activity and behavior tracking in accordance with an embodiment herein;

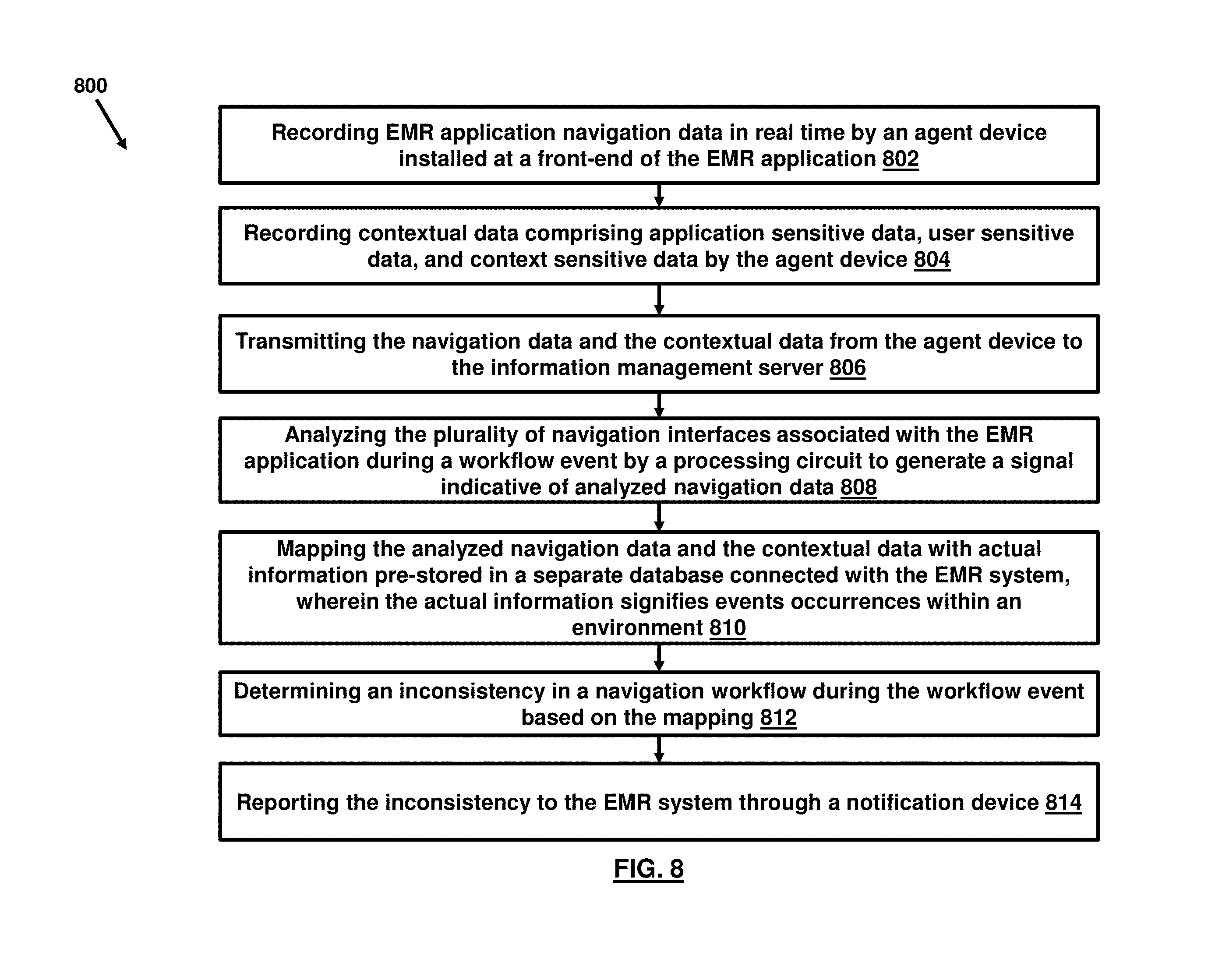

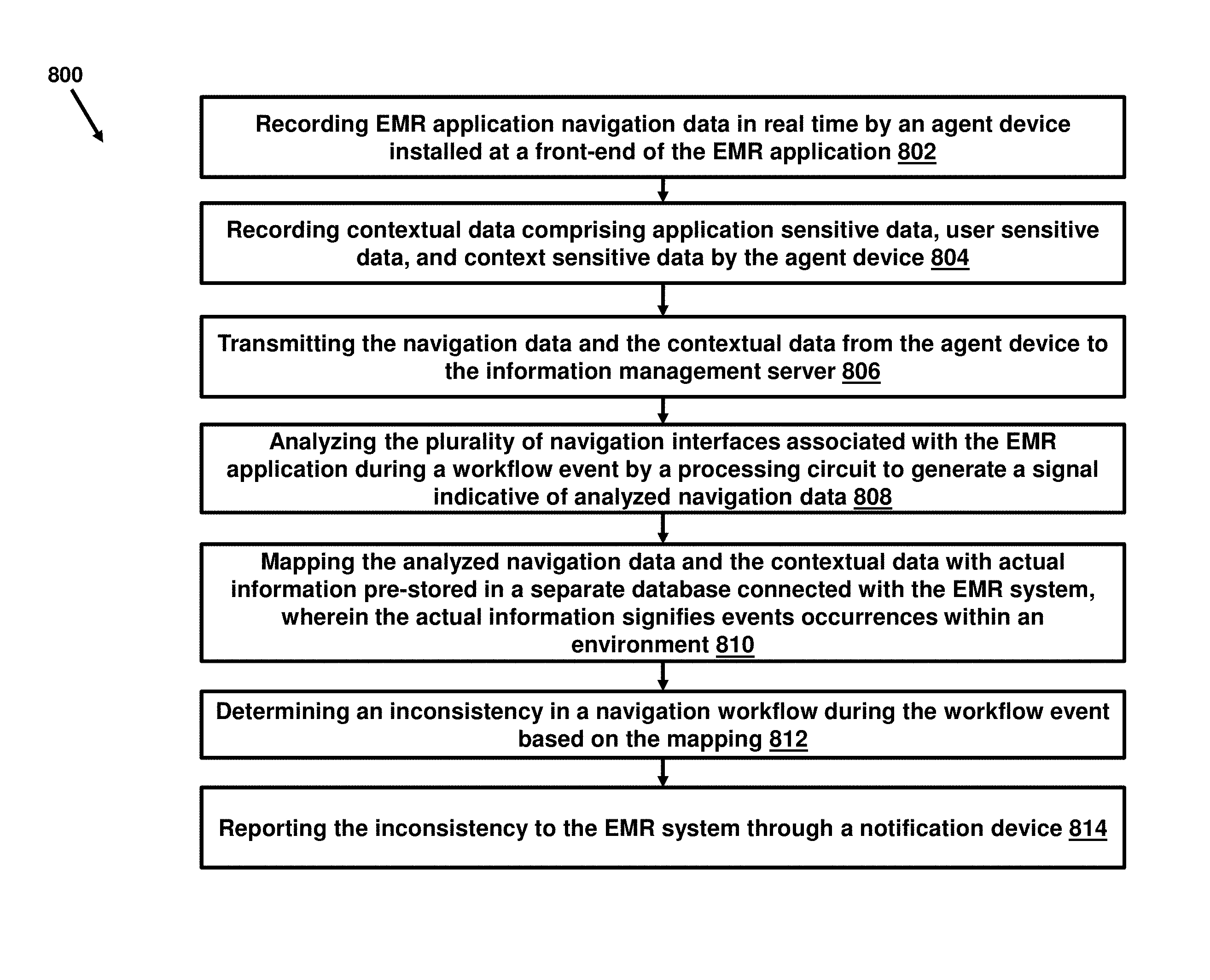

• FIG. 8 illustrates a flow chart for a computer-implemented surveillance method for monitoring and surveillance of EMR application navigation;

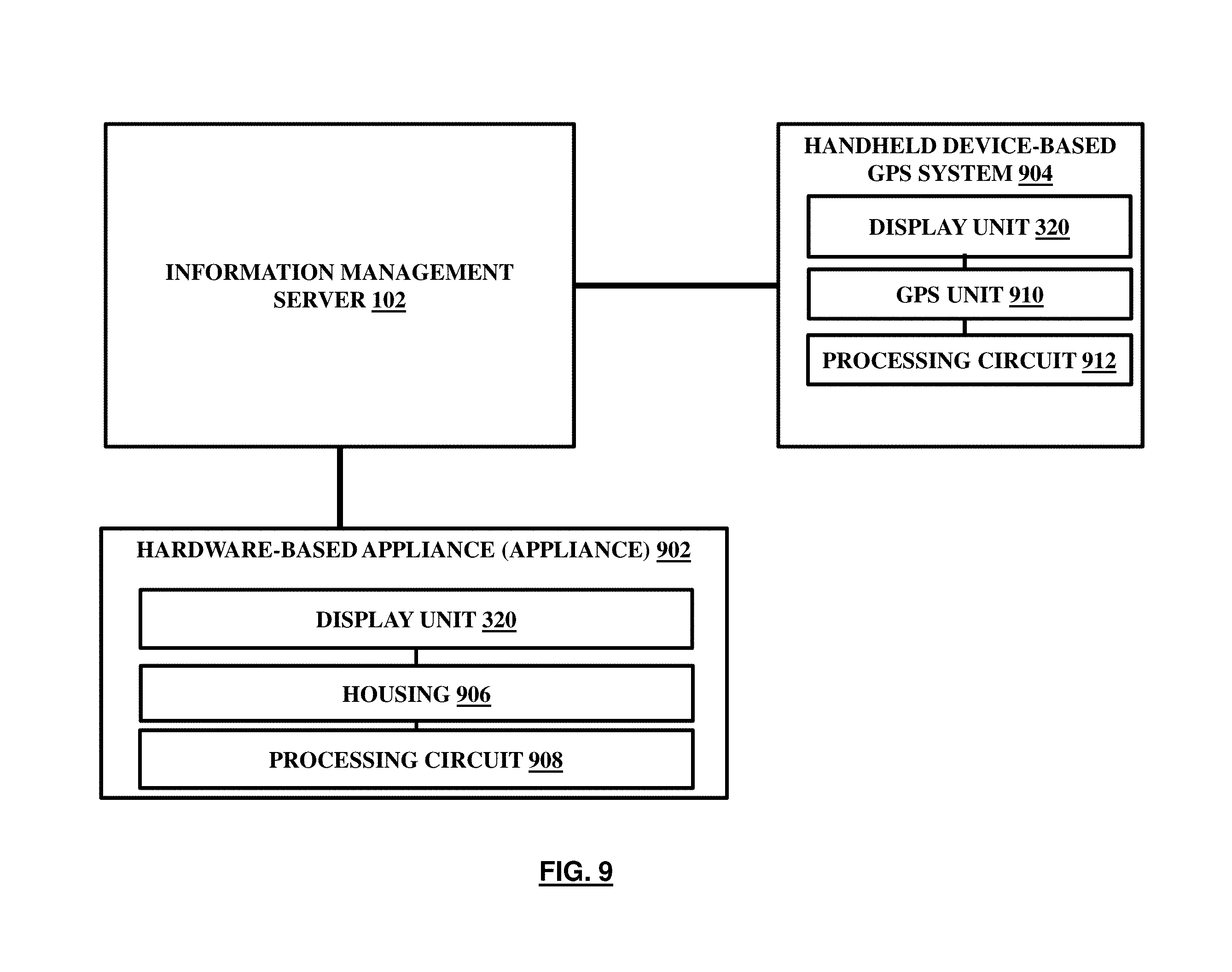

• FIG. 9 illustrates an information management server and other connected devices configured as a hardware-based appliance or a kiosk in accordance with an embodiment herein; and

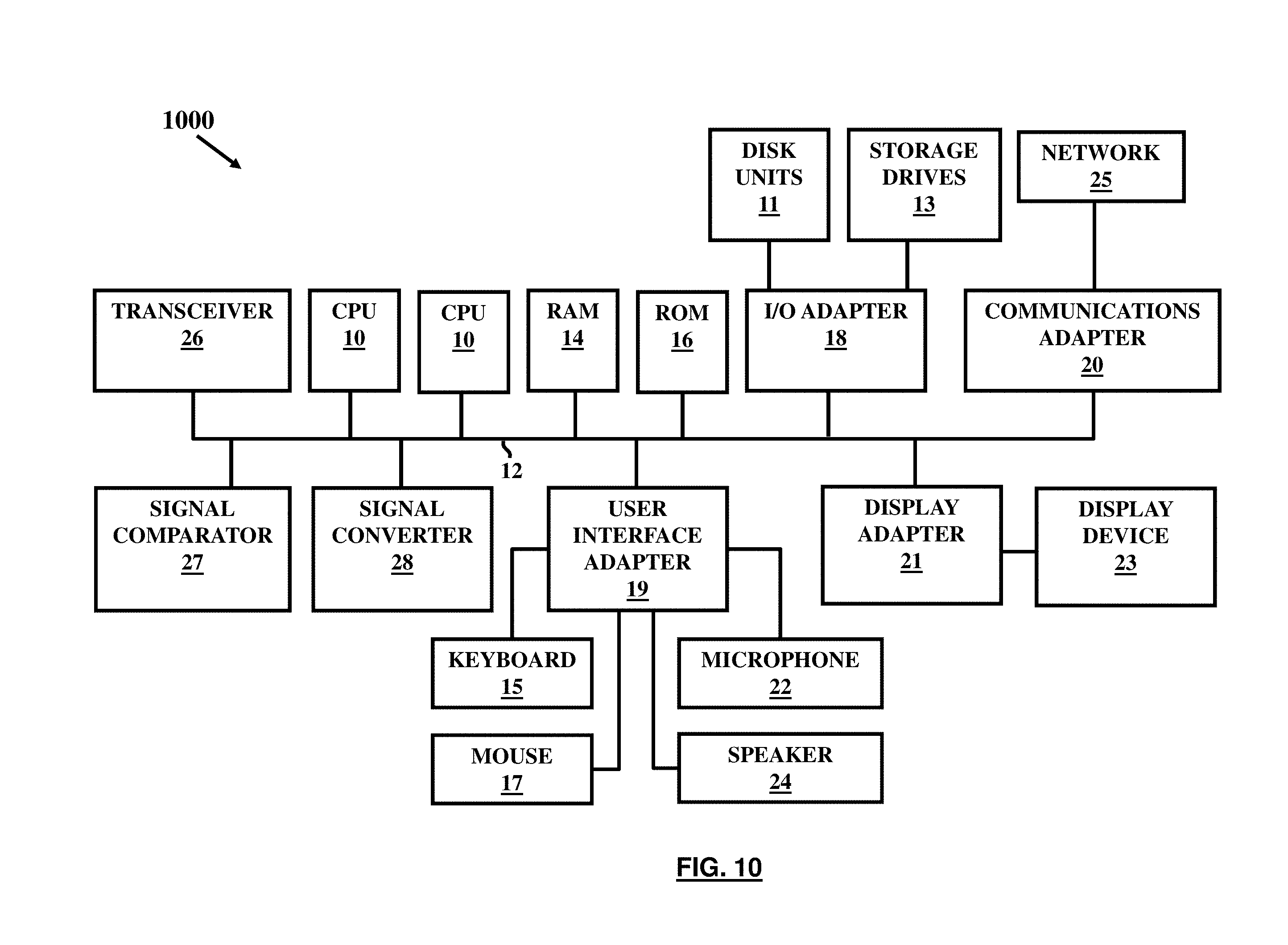

• FIG. 10 illustrates a computer system that may be used in accordance with the embodiments herein.

Abstract

A surveillance system for monitoring of Electronic Medical Record (EMR) application navigation through a plurality of navigation interfaces of an EMR application. The system includes an EMR system that includes the EMR application. The system includes a context-sensitive engine that includes an agent device to record EMR application navigation data in real time and contextual data comprising application sensitive, user sensitive and context sensitive data. The system includes an information management server to facilitate serving of information blocks to the EMR system from a plurality of distributed databases in real-time. The system includes a processing that analyzes the plurality of navigation interfaces associated with the EMR application during a workflow event, maps the analyzed navigation data and the contextual information with actual information pre-stored in a separate database connected with the EMR system, and determine an inconsistency in a navigation workflow during the workflow event based on the mapping.

The problem it addresses

Technical Field

The embodiments herein generally relate to data management, and more particularly to integration and tracking of medical data across electronic medical record systems for specific purposes.

Description of the Related Art

Electronic Medical Records (EMR) systems create and maintain all patient data electronically. The system captures patient data, such as patient complaints, lab orders, medications, diagnoses, and procedures, at its source at the time of entry using a graphical user interface. Authorized healthcare providers can access, analyze, update and electronically annotate patient data even while other providers are using the same patient record. The system also permits instant analysis of patient data to identify relationships among data elements. The system also includes a capability to access reference databases for medical consultation.

Summary of the invention

An embodiment herein provides a computer-implemented surveillance system for monitoring and surveillance of Electronic Medical Record (EMR) application navigation through a plurality of navigation interfaces of an EMR application. The system comprises an EMR system that includes the EMR application. The EMR system is configured to execute computer executable instructions to manage medical records electronically. The system further includes a context-sensitive engine operatively deployed at a front-end of the EMR system. The context-sensitive engine includes an agent device to record EMR application navigation data in real time and contextual data comprising application sensitive, user sensitive and context sensitive data. The agent device is operatively and communicatively connected with the EMR system. The context-sensitive engine further includes an installable computer-executable agent file to allow configuration and setup of the agent device. The system further includes an information management server communicatively connected with the EMR system to facilitate serving of information blocks to the EMR system from a plurality of distributed databases in real-time, wherein each of the plurality of distributed databases are communicatively connected with the EMR system through the information management server. The delivery of the information blocks is based on the contextual information. The system further includes a transceiver to transmit the navigation data and the contextual data from the agent device to the information management server. The system further includes a processing circuit included within or communicatively coupled with the information management server. The processing circuit analyzes the plurality of navigation interfaces associated with the EMR application during a workflow event to generate a signal indicative of analyzed navigation data, maps the analyzed navigation data and the contextual information with actual information pre-stored in a separate database connected with the EMR system, and determine an inconsistency in a navigation workflow during the workflow event based on the mapping. The actual information may signify events occurrences within an environment. The system further includes a notification device to report the inconsistency to the EMR system. The notification device generates an electric signal comprising a computer executable file signifying the inconsistency in the navigation workflow during the workflow event, transmits the electric signal, in a network comprising a plurality of communicatively linked data communication devices, converts the electric signal into a plurality of pixels, and displays the plurality of pixels on a display unit to indicate the navigation data and the inconsistency therein.

An embodiment herein provides a computer-implemented surveillance method for monitoring and surveillance of EMR application navigation through a plurality of navigation interfaces of an EMR application. The method includes recording EMR application navigation data in real time by an agent device installed at a front-end of the EMR application and recording contextual data comprising application sensitive data, user sensitive data, and context sensitive data by the agent device. The agent device is operatively and communicatively connected with the EMR system. The method further includes transmitting the navigation data and the contextual data from the agent device to the information management server, analyzing the plurality of navigation interfaces associated with the EMR application during a workflow event by a processing circuit to generate a signal indicative of analyzed navigation data, and mapping the analyzed navigation data and the contextual data with actual information pre-stored in a separate database connected with the EMR system. The actual information signifies events occurrences within an environment. The method may further include determining an inconsistency in a navigation workflow during the workflow event based on the mapping, reporting the inconsistency to the EMR system through a notification device. The reporting includes generating an electric signal comprising a computer executable file signifying the inconsistency in the navigation workflow during the workflow event, transmitting the electric signal, in a network comprising a plurality of communicatively linked data communication devices, converting the electric signal into a plurality of pixels, and displaying the plurality of pixels on a display unit to indicate the navigation data and the inconsistency therein.
