US10638999B2: System For Controlling Medical Devices

In plain language

Controlling Medical Devices for Patient Care and Data Management

Discover how efficiency and patient care converge with real-time health monitoring and advanced medical device management.

Drawings

Front page figure at full size — Front page figure

Sheet 1 of 13 at full size — Sheet 1 of 13

Sheet 2 of 13 at full size — Sheet 2 of 13

Sheet 3 of 13 at full size — Sheet 3 of 13

Sheet 4 of 13 at full size — Sheet 4 of 13

Sheet 5 of 13 at full size — Sheet 5 of 13

Sheet 6 of 13 at full size — Sheet 6 of 13

Sheet 7 of 13 at full size — Sheet 7 of 13

Sheet 8 of 13 at full size — Sheet 8 of 13

Sheet 9 of 13 at full size — Sheet 9 of 13

Sheet 10 of 13 at full size — Sheet 10 of 13

Sheet 11 of 13 at full size — Sheet 11 of 13

Sheet 12 of 13 at full size — Sheet 12 of 13

Sheet 13 of 13 at full size — Sheet 13 of 13

14 sheets as filed; open one to see it at full size. A figure drawn across its sheet is turned to read upright.

What the drawings show

The features of the disclosed embodiments may become apparent from the following detailed description taken in conjunction with the accompanying drawings showing illustrative embodiments herein, in which:

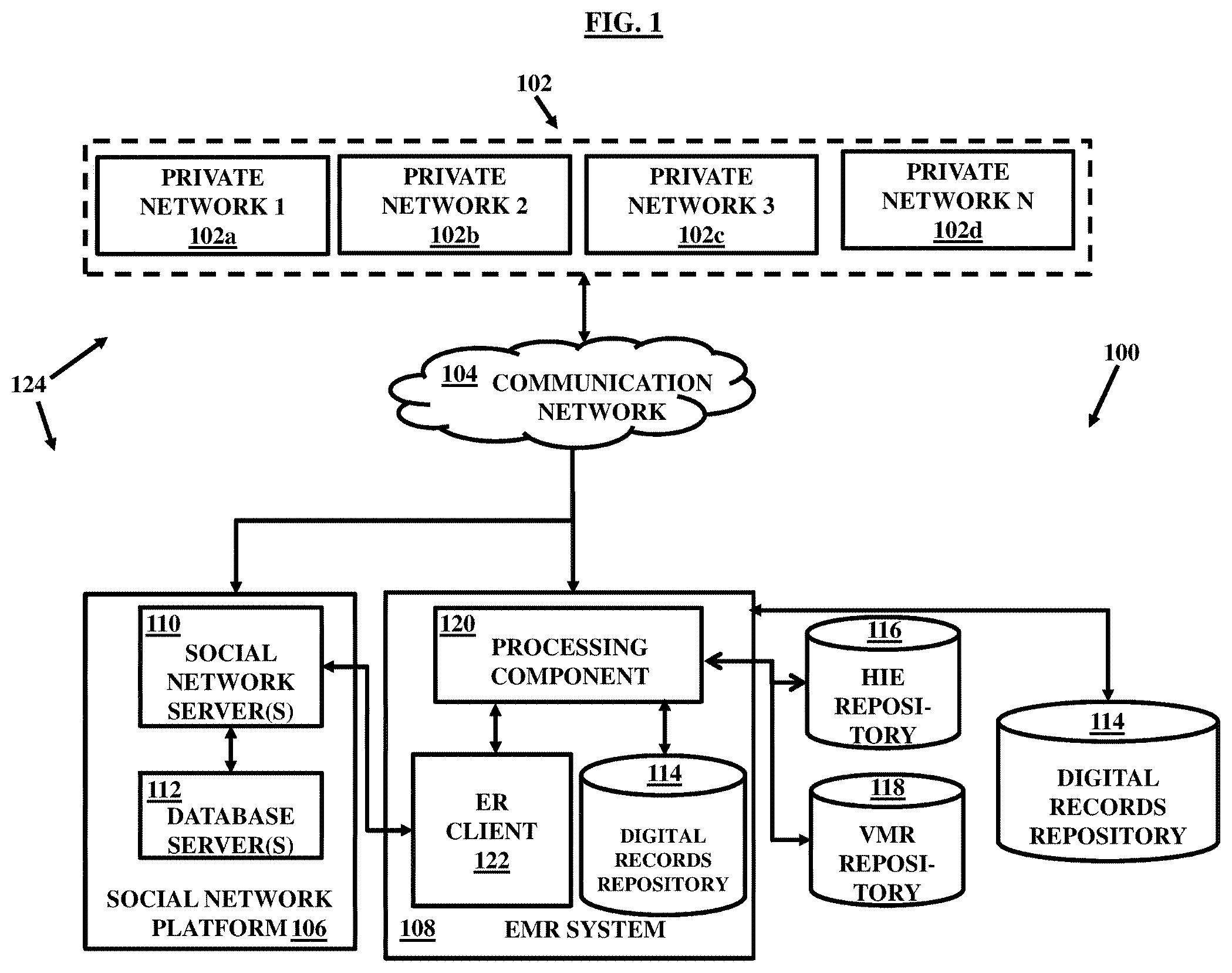

FIG. 1 illustrates generally, but not by the way of limitation, among other things, an example of an operating environment in which an embodiment may operate;

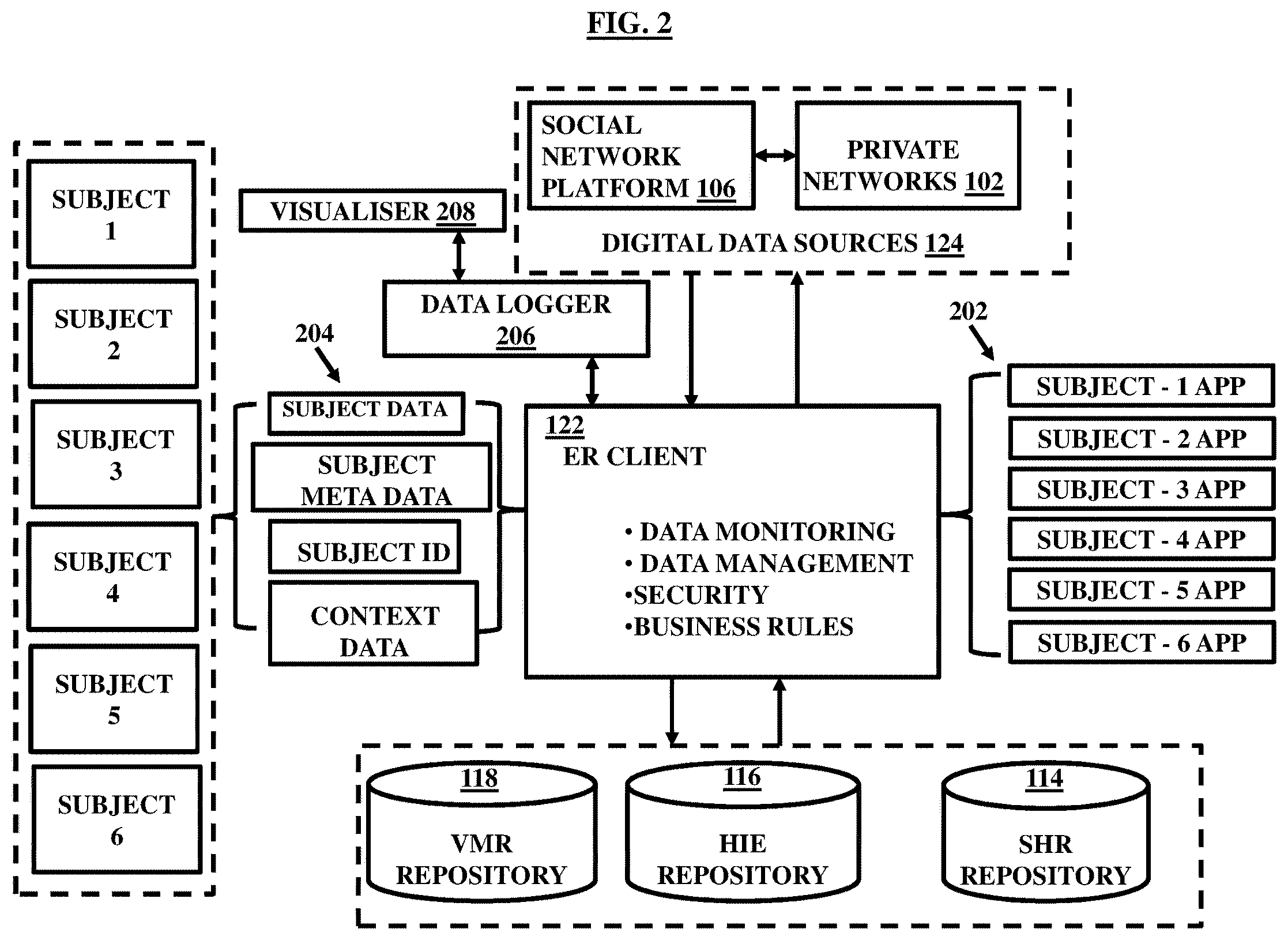

FIG. 2 illustrates generally, but not by the way of limitation, among other things, an ER client such as described in FIG. 1 , in accordance with an embodiment;

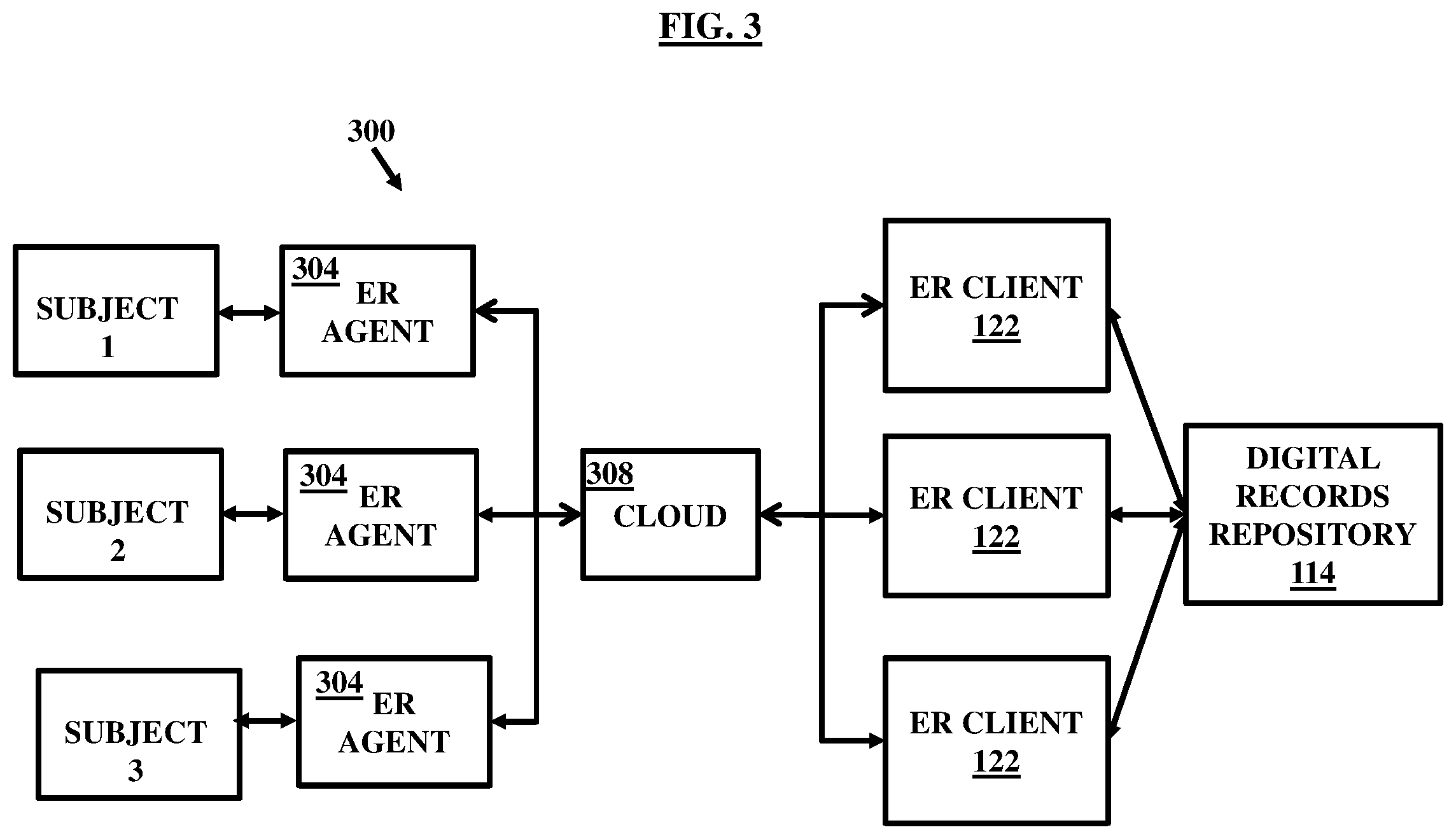

FIG. 3 is a schematic diagram that illustrates generally, but not by the way of limitation, an exemplary cloud computing architecture, in accordance with an exemplary embodiment;

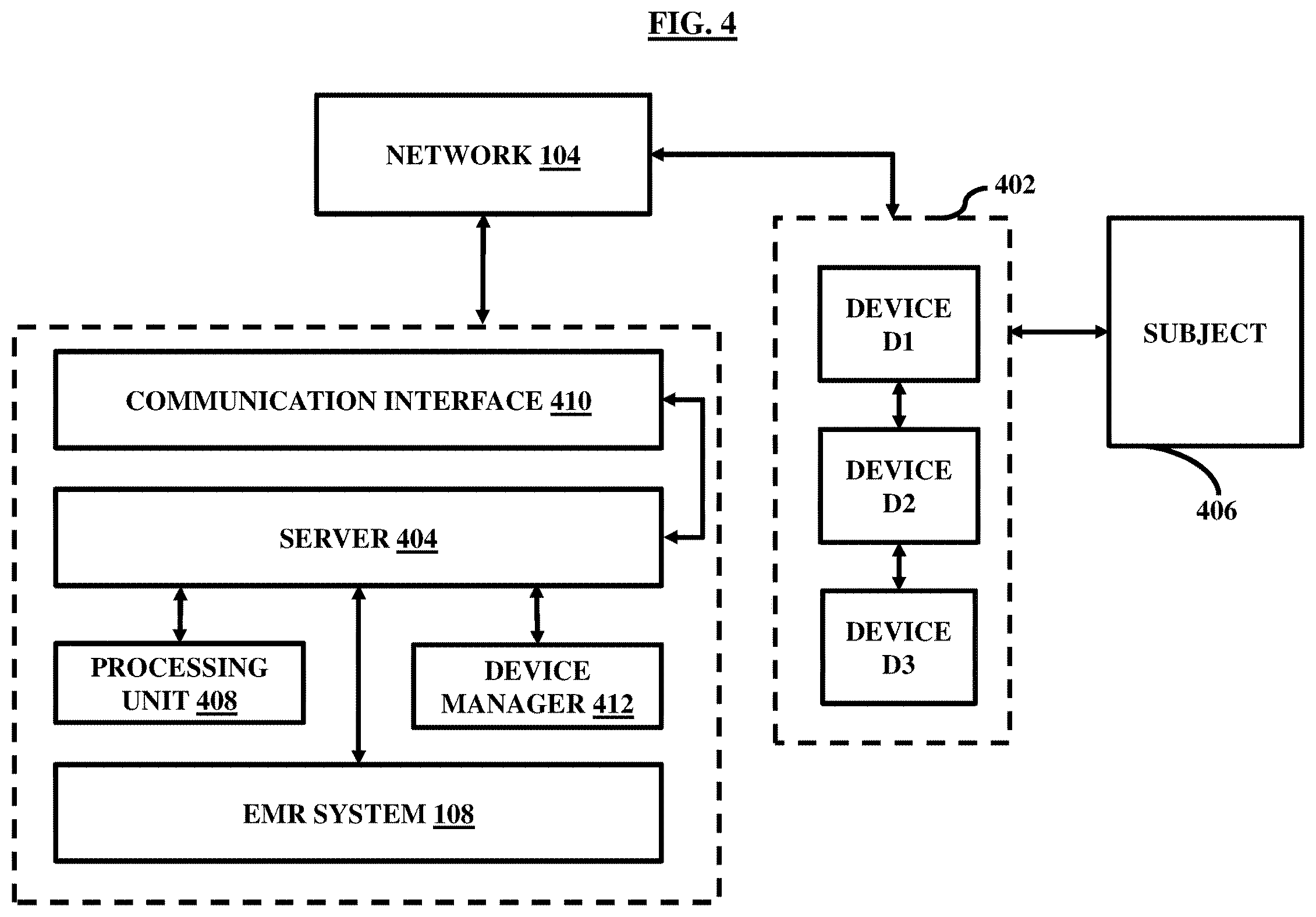

FIG. 4 illustrates generally, but not by the way of limitation, a plurality of medical devices connected with an EMR system, in accordance with an embodiment;

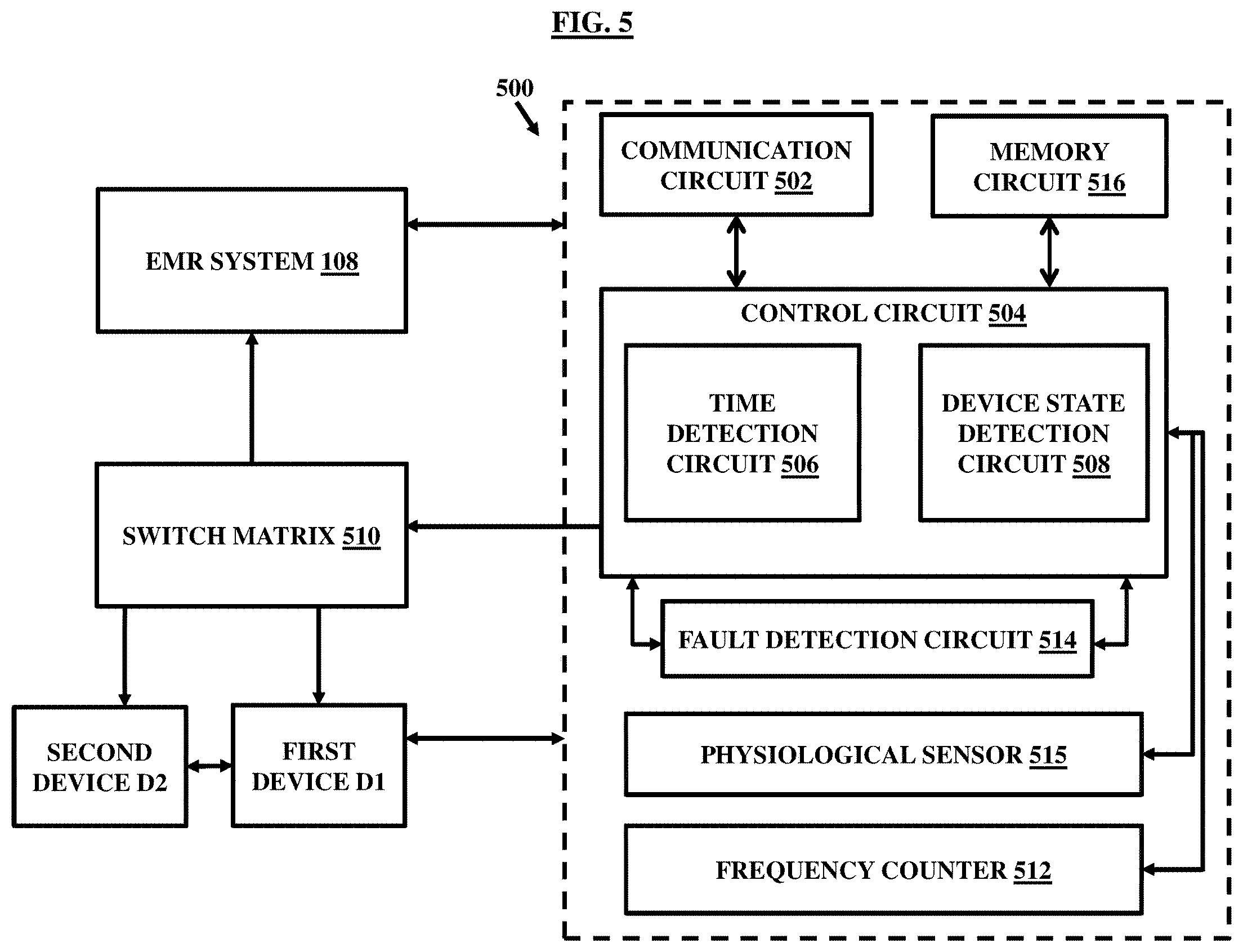

FIG. 5 illustrates, generally but not by the way of limitation, a system for facilitating coordination and control among a plurality of medical devices, in accordance with an embodiment;

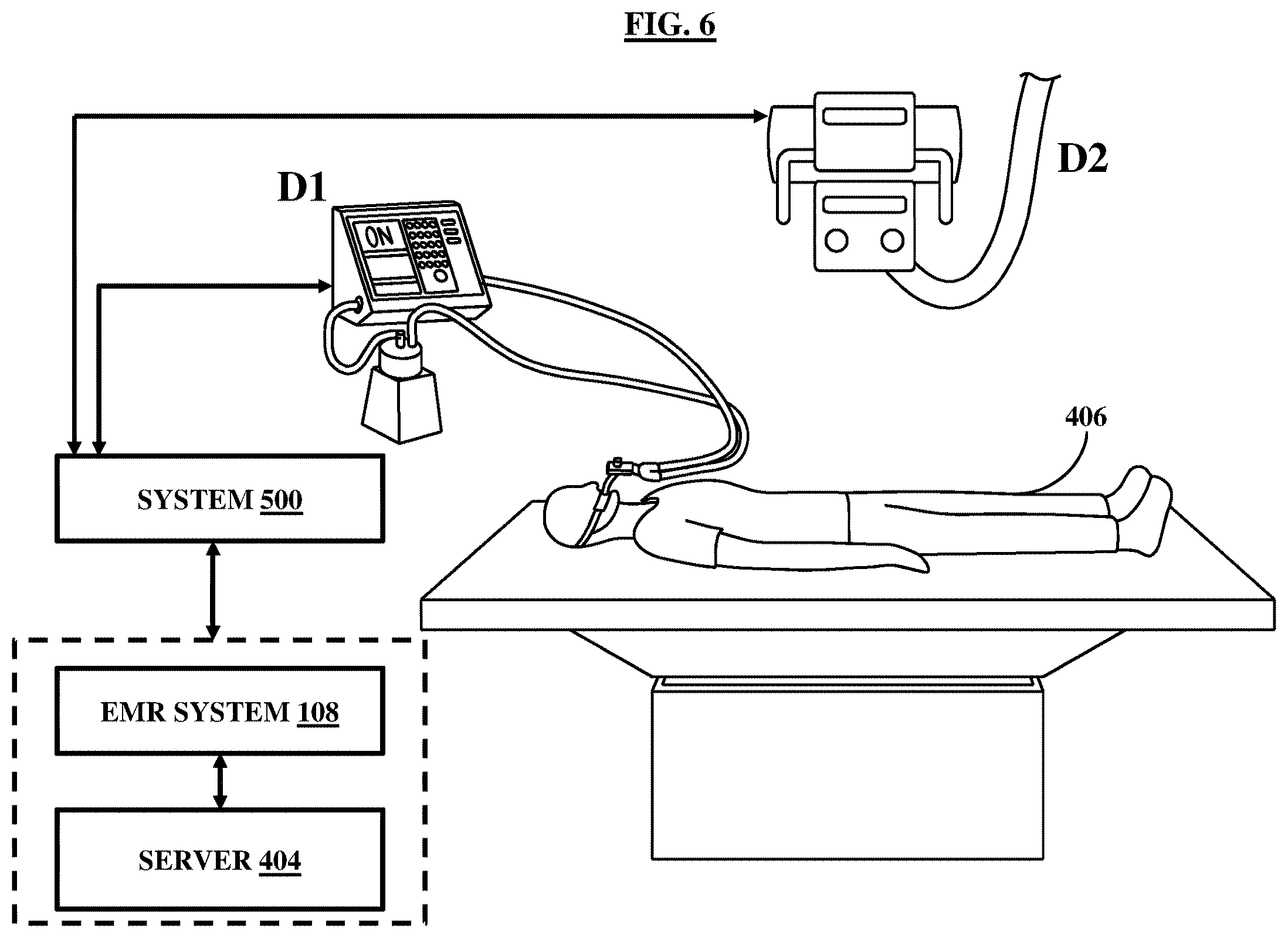

FIG. 6 illustrates, generally but not by the way of limitation, an example of a first medical device and a second medical device coordinating in a network before switching their operating states, in an embodiment;

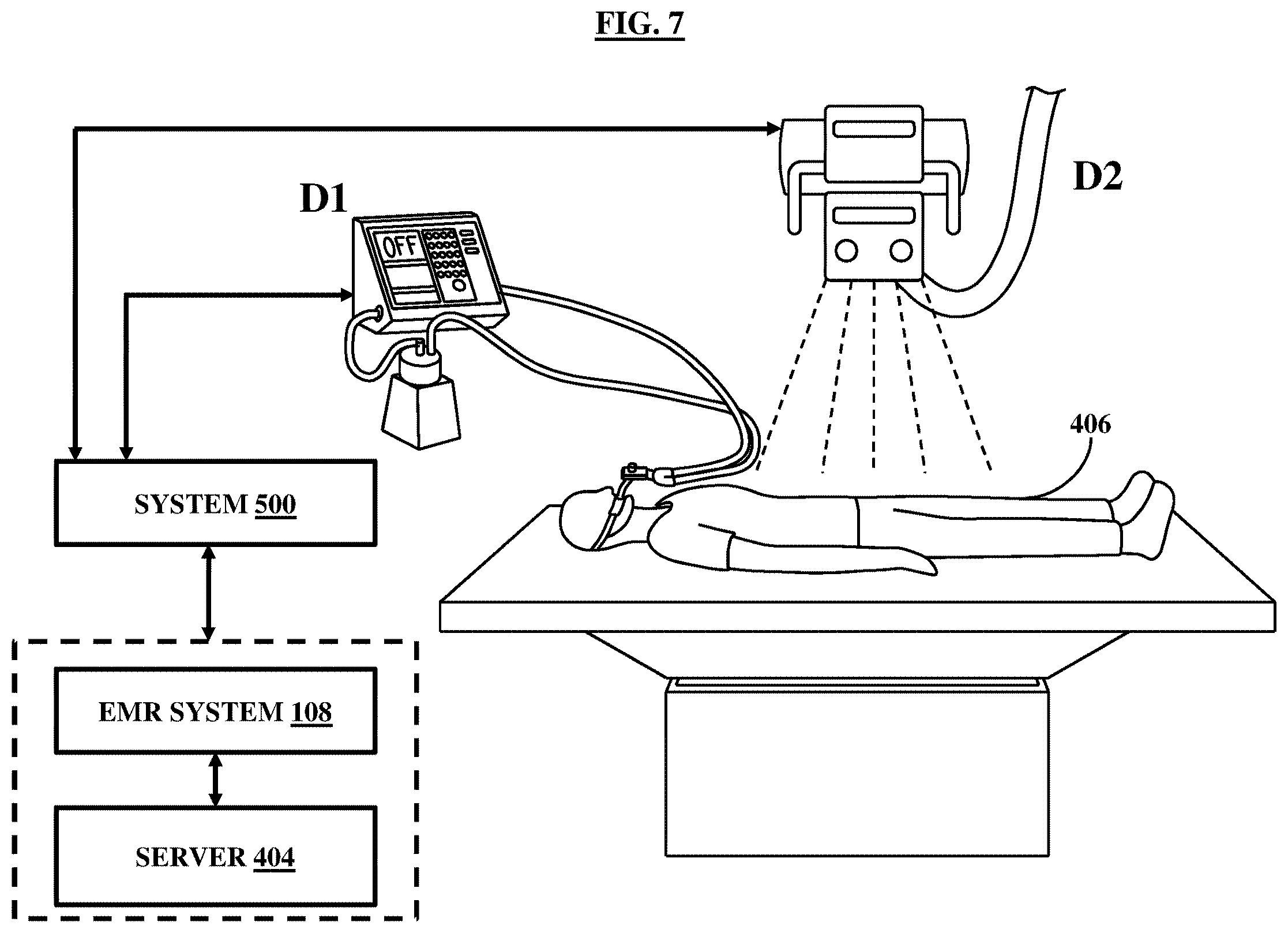

FIG. 7 illustrates, generally but not by the way of limitation, an example of the first medical device and the second medical device coordinating in the network after switching their operating states, in accordance with an embodiment;

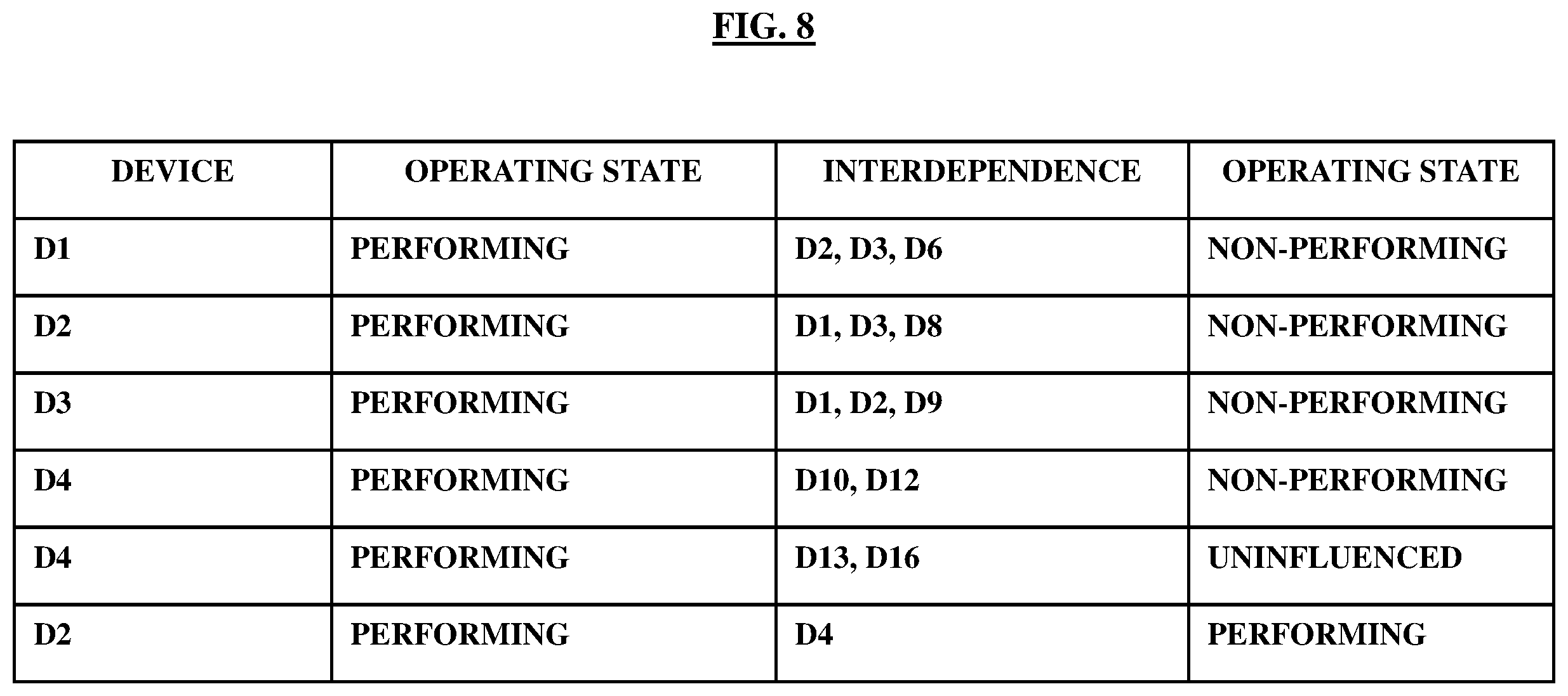

FIG. 8 illustrates an exemplary lookup table depicting interdependence among a plurality of medical devices, in accordance with an embodiment;

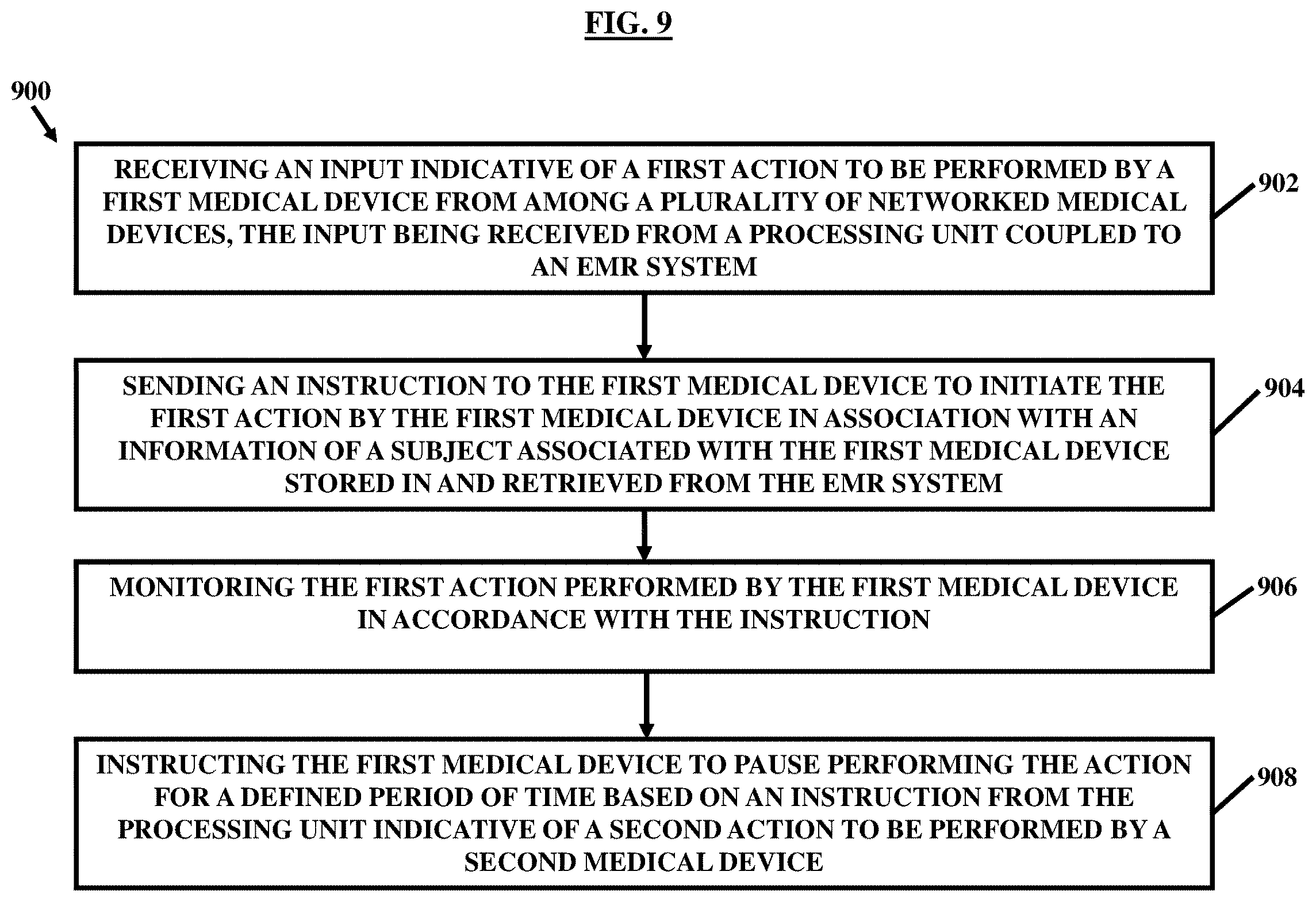

FIG. 9 illustrates a method for facilitating coordinated functioning of a plurality of medical devices, in accordance with an embodiment;

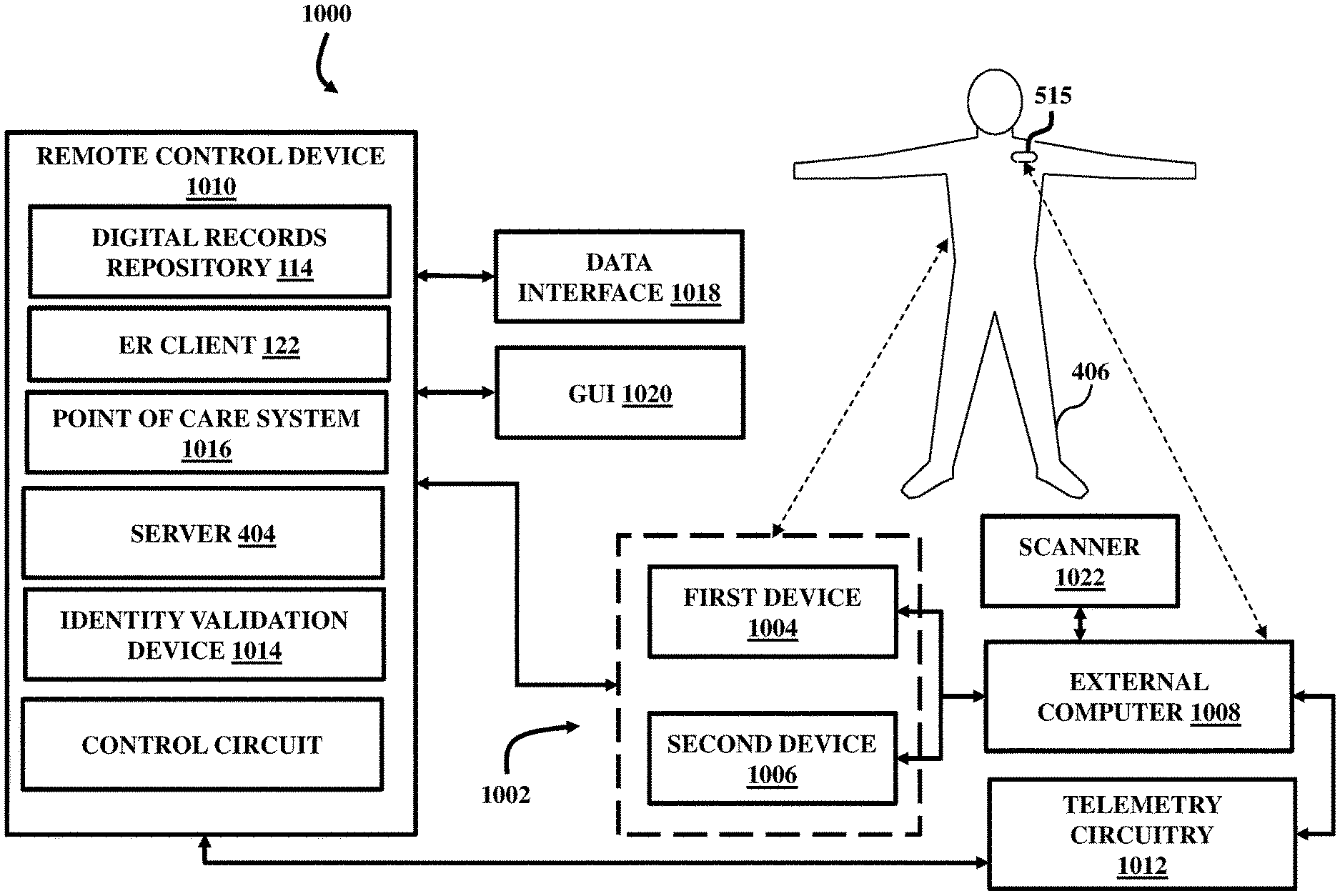

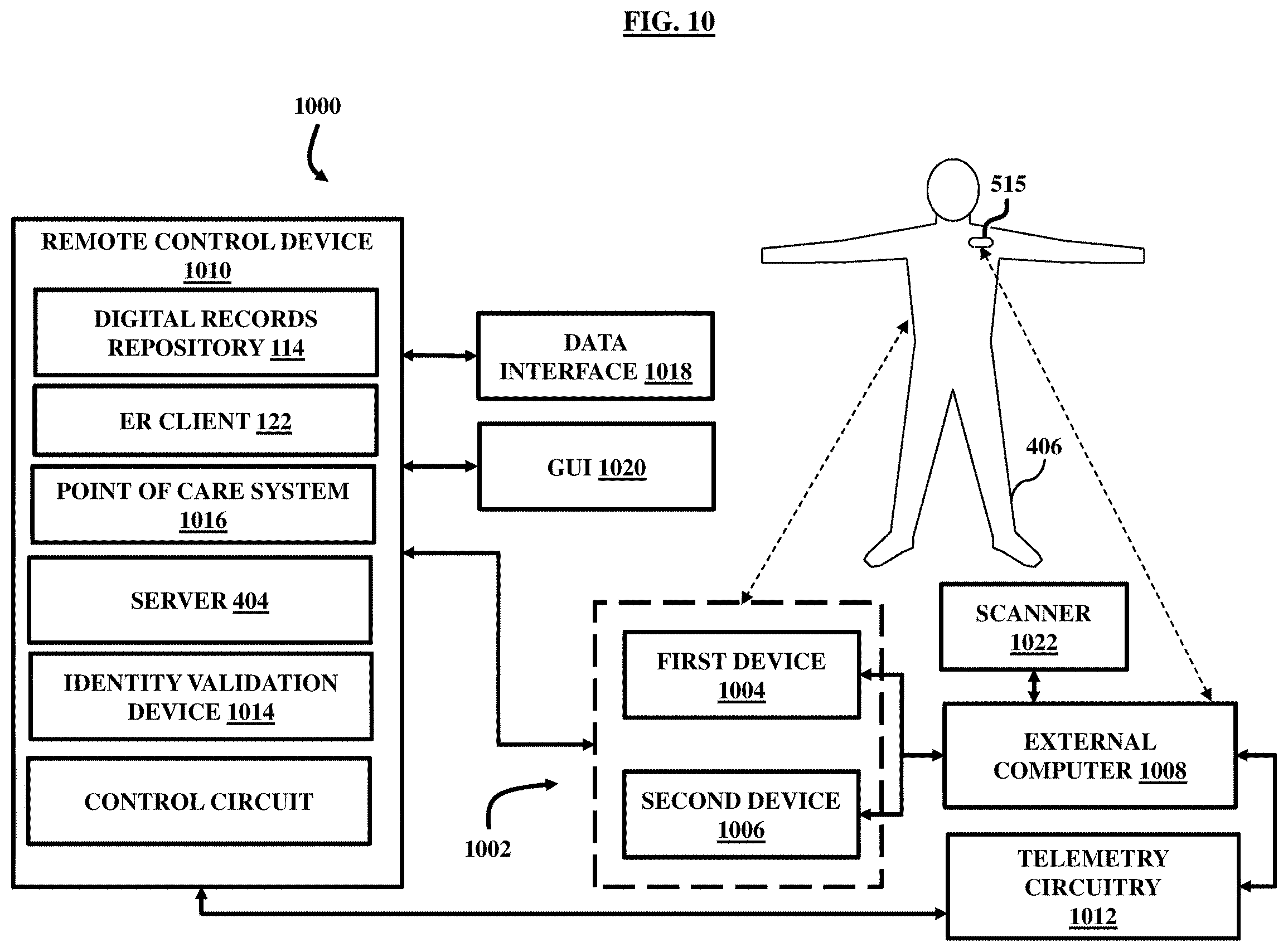

FIG. 10 illustrates an exemplary remote-control device in association with a multi-device module, in accordance with an embodiment;

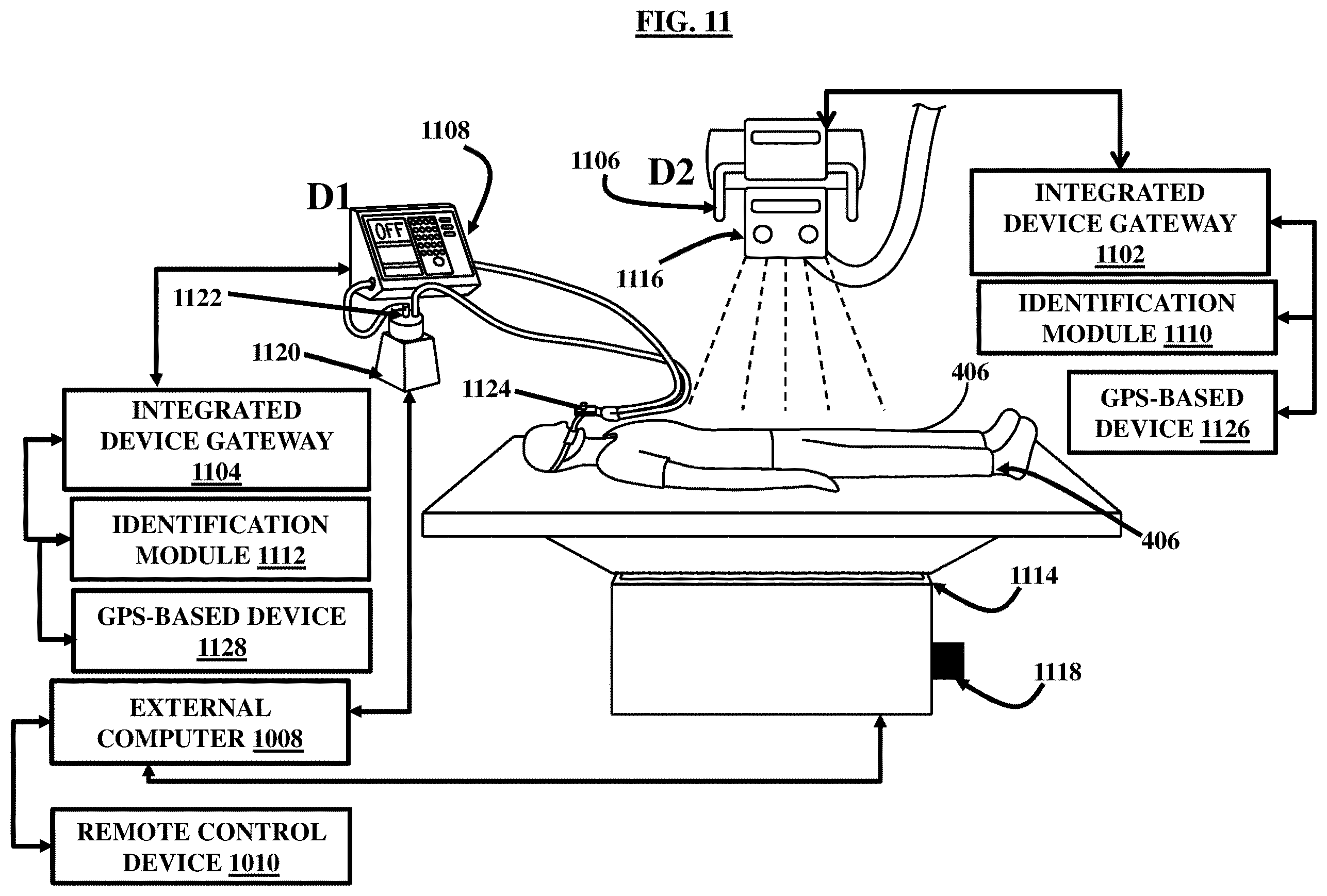

FIG. 11 illustrates an exemplary multi-device module, in accordance with an embodiment;

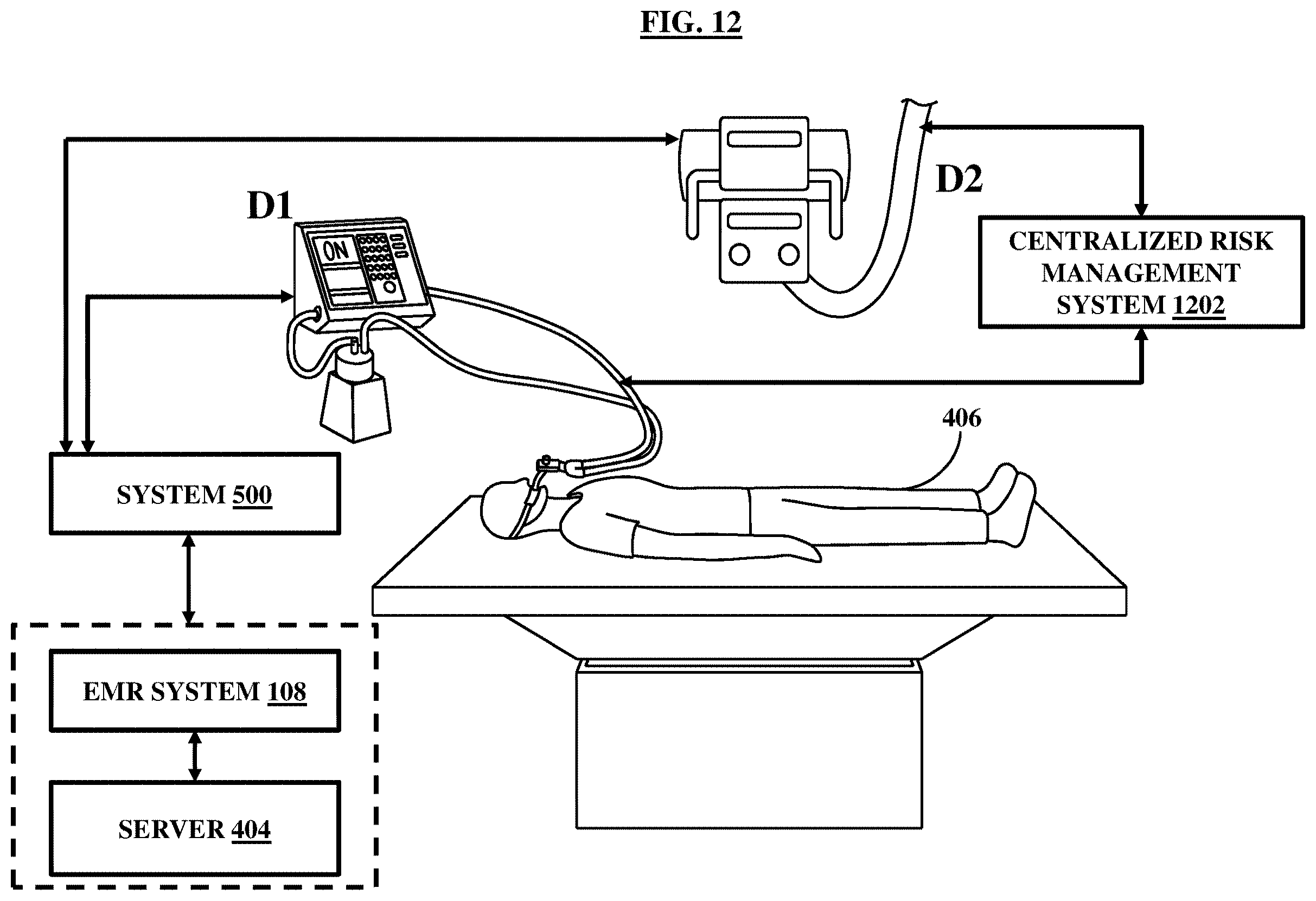

FIG. 12 illustrates an exemplary centralized system linked with medical devices, in accordance with an embodiment; and

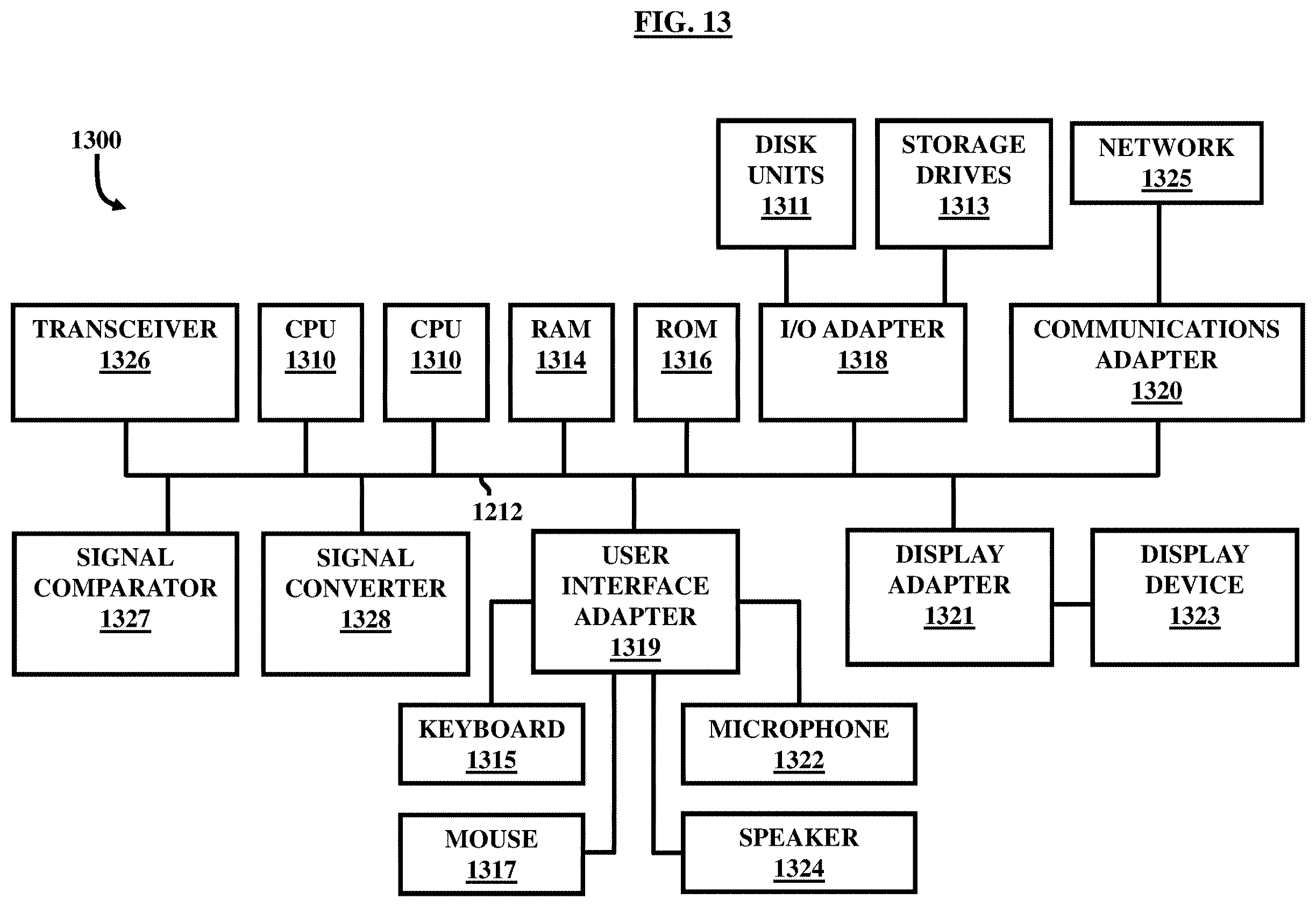

FIG. 13 illustrates generally, but not by the way of limitation, a computer system that may be used in accordance with the embodiments herein.

Abstract

Controlling a multi-device module includes a physiological sensor configured to sense physiological characteristics of a subject and generate a signal indicative of an instantaneous physiological state. A first device is configured to generate a first signal indicative of an operating state of the first device. A second device is configured to generate a second signal indicative of an operating state of the second device. A remote-control device includes a repository for storing computer executable files aggregated from a plurality of changing private networks. The remote-control device includes an electronic record (ER) client to make a wireless connection with each of the private networks and to query ER database associated with the private networks for electronic records residing within the private networks.

The problem it addresses

Technical Field

The embodiments herein generally relate to medical devices, and more particularly, to systems for controlling medical devices.

Description of the Related Art

Hospitals, caretakers, nursing centers or homes, medical offices, medical centers, or other sources of medical care and entities generally keep medical and demographic or other such records of their patients. These records may include a variety of information such as demographic information of their patients, medical history, diagnostic and pathology reports of their patients, medical reports or prescriptions, or other such information. This information can be used for a variety of purposes by these sources of medical care. A few examples of them are, without limitations, tracking of the patients and their records, billing, historical assessments, integrating with medical devices, remote care, future care taking, telemedicine, proper ongoing medical or health assessment or treatment, or any other purpose.

The rest of the background

One way to collate and store the medical data is with the use of an electronic health record data bank (EHRDB). These records from various entities can be electronically maintained such as by the electronic health record data bank (EHRDB) in a central system accessible by the entities. The EHRDB may store medical data of the entities and devices and retrieve the data of the respective entities as and when requested by them.

Summary of the invention

An embodiment herein provides a system for controlling multiple devices, the system comprising a physiological sensor associated with a body of a subject and configured to sense one or more physiological characteristics of the subject and generate a digital physiological signal indicative of an instantaneous physiological state of the subject; a first device configured for bi-directional wireless communication positioned proximate to the subject and comprising a first memory circuit and a first processor, wherein the first device is configured to generate a first signal indicative of an operating state of the first device, and wherein the operating state comprising one of a performing state and a non-performing state of the first device; a second device configured for bi-directional wireless communication positioned proximate to the subject and comprising a second memory circuit and a second processor, wherein the second device is configured to generate a second signal indicative of an operating state of the second device, wherein the operating state comprising one of a performing state and a non-performing state of the second device, and wherein the first device and the second device are configured to perform one of a therapeutic, diagnostic, and a medication delivery task on the subject in accordance with computer-enabled instructions; a computer with telemetry circuitry for communicating with the physiological sensor, the first device, and the second device; and a remote-control device positioned apart from the physiological sensor, the first device, and the second device.

The remote-control device comprises a digital records repository comprising a memory circuit and a processing unit for storing dynamically updating computer executable files aggregated from a plurality of changing private networks wherein the computer executable files contain dynamically updating digitally recorded information indicative of a set of changing subject attributes and respective changing reference values associated with the subject; an electronic record (ER) client configured to make a wireless connection with each of the private networks and configured to query an ER database associated with each of the private networks for electronic records residing within the private networks; a server machine configured for communicating with the physiological sensor, the first device, and the second device either directly or through the computer, wherein the server machine is configured for receiving the digital physiological signal indicative of the instantaneous physiological state of the subject and sending programmable operational parameters to the first device and the second device in response to a request for service from the computer and based on the instantaneous physiological state such that the operating parameters decides operating characteristics of the first device and operating characteristics of the second device and the operating characteristics of the first device and the operating characteristics of the second device are interdependent through a priority and interdependence relationship, wherein at least one of the physiological sensor, the first device, the second device, and the computer transforms the received operating parameters into a digital data structure readable by a scanner; and an identity validation device to verify an identity of the first device and the second device and associate a subject identifier uniquely representing the subject with the first device and the second device based on information contained within the physiological signal such that the operating parameters are calculated based on one or more of the reference values associated with the subject having the unique subject identifier as identified based on the physiological signal.

The physiological sensor may be implanted within the body of the subject subcutaneously. The physiological sensor may be associated with the subject as an external device. The physiological sensor may be configured for the subject such that the digital physiological signal contains the subject identifier along with an information indicative of the instantaneous physiological state of the subject. The remote-control device may be configured to associate the subject identifier with the computer executable files stored in the digital records repository to retrieve the reference values associated with the subject and generate an output indicative of the operational parameters of the first device and the second device based on the physiological signal and the retrieved reference values associated with the subject. The operational parameters may comprise any of changing an operating state of the first device only for a first period of time; changing an operating state of the second device only for a second period of time; changing an operating state of both the first device and the second device for a third period of time; and connecting a third device different from the first device and the second device by associating an operating state with the third device in association with the subject for a fourth period of time, wherein each of the first device, the second device, and the third device are uniquely identified by device identifiers such that the digital records repository stores the digital identifiers in a device manager in association with the subject identifier.

The full summary

Any of the server machine and the computer may further comprise a switch matrix configured to cause switching of the operating state of the one or more of the first device, second device, and the third device upon receipt of the operational parameters from the remote-control device in accordance with the priority and interdependence relationships. The remote-control device may further comprise a time detection circuit configured to monitor the first period of time, second period of time, third period of time, and the fourth period of time. The system may further comprise a device state detection circuit coupled to the time detection circuit and configured to identify an operating state of the first device, second device, and the third device after completion of the first period of time, the second period of time, the third period of time, and the fourth period of time. The system may further comprise a fault detection circuit configured to generate a signal indicative of a fault when the device state detection circuit does not detect a change in operating states of either of the first device, second device, or the third device in accordance with the operational parameters transmitted by the remote-control device. The first device may comprise a ventilator and the second device may comprise an X-ray machine such that the remote-control device causes the ventilator to perform a first action upon receipt and the X-ray machine to perform a second action upon receipt of the operational parameters.

The remote-control device may comprise an electronic medical record (EMR) system configured to house a plurality of digital records associated with a plurality of subjects including the subject in the form of a plurality of digital files including the computer executable files associated with the subject, wherein the EMR system comprising the digital records repository; the electronic record (ER) client; a mobile point of care system to capture subject-associated digital data at a point of care wherein the point of care system is communicatively connected with the electronic record (ER) client so as to transmit the electronic records captured by the mobile point of care system from the private networks to the server machine; a data interface, in communication with the mobile point of care system, to facilitate transmission of the electronic records to the server machine; and a web-based interactive graphical user interface for allowing the subject to enter the digital records manually from a distant location. The digital data structure may comprise a QR (quick response) code.

Another embodiment provides a multi-device system comprising a first medical device configured for bi-directional wireless communication positioned proximate to a subject and comprising a first memory circuit and a first processor, wherein the first medical device is configured to generate a first signal indicative of an operating state of the first medical device, and wherein the operating state comprising one of a performing state and a non-performing state of the first medical device; and a second medical device configured for bi-directional wireless communication positioned proximate to the subject and comprising a second memory circuit and a second processor, wherein the second medical device is configured to generate a second signal indicative of an operating state of the second medical device, and wherein the operating state comprising one of a performing state and a non-performing state of the second medical device.

Each of the first medical device and the second medical device comprise an integrated gateway device configured to have a multiple interface unit comprising data interface units configured to send medical operation measurements in conformity with one or more operational parameters received via any of a wired and wireless communication network; a medical device housing to contain device accessories and circuitry; one or more of a therapeutic delivery device, a medication delivery device, and a diagnosis device physically contained within the medical device housing and configured to perform one of a therapeutic, diagnostic, and a medication delivery task; an identification module to contain digitally stored information indicative of device identifier and configured to be transmitted to other devices upon request for device identification; and a computer with telemetry circuitry for communicating with a physiological sensor, the first device, and the second device, wherein the computer is configured to receive a physiological signal from the associated physiological sensor configured for a subject; transmit a subject identifier, a first medical device identifier associated with the first medical device, and a second medical device identifier associated with the second medical device along with a service request to a remote-control device positioned apart from the physiological sensor, and wherein the remote-control device is configured to fulfill the service request based on information contained in a plurality of dynamically updating computer executable files from a plurality of digital data sources and stored in an EMR system configured within the remote-control device; and receive the one or more operational parameters from the remote-control device in response to a service request from the computer and based on an instantaneous physiological state as identified from the physiological signal such that the one or more operating parameters decides operating characteristics of the first medical device and operating characteristics of the second medical device, wherein the operating characteristics of the first medical device and the operating characteristics of the second medical device are interdependent through a priority and interdependence relationship.

The first medical device may comprise a medical imaging machine for imaging of a target including a tissue or a bone structure within a body of a subject, the medical imaging machine comprising a rotatable drive shaft; an imaging device supported on the rotatable drive shaft, the imaging device adapted to transmit energy toward the target; a position adjustment mechanism coupling with the rotatable shaft to allow adjustment of the rotatable drive shaft in order to focus transmission of the energy at the target; the integrated gateway device; and the identification module. The energy may comprise X-rays and the imaging machine may comprise an X-Ray machine.

The second medical device may comprise a life support system comprising an oxygen source that includes a tank of pressurized gas; one or more control valves disposed over a channel connecting the oxygen source and the subject to allow the oxygen to flow from the tank to a laryngeal mask in a first state and to allow gas expelled from the subject to flow from the laryngeal mask to the atmosphere in a second state while preventing the oxygen from flowing from the oxygen source in a second state; the laryngeal mask disposed downstream from the inspiration control valve, the laryngeal mask configured to form an air seal with the subject's respiratory tract such that the oxygen flows from the oxygen source to the lungs of the subject; a timer for synchronizing actuation of the one or more control valves based on the operational parameters received from the remote-control device containing the EMR system; the integrated gateway device; and the identification module. The life support system may comprise a ventilator. Each of the first medical device and the second medical device may comprise a respective (Global Positioning System) GPS-based device such that the GPS-based device is configured to detect geo-locations of the respective first medical device and the second medical device, wherein the remote-control device receives the detected geo-locations of the first medical device and the second medical device, and the remote-control device automatically correlates the subject identifier for the subject associated with the first medical device and the second medical device and initiates functioning in context of the subject as and when the EMR system is proximate to the subject associated with the first medical device and the second medical device. The computer may be configured to transform the operating parameters received from the remote-control device into a digital data structure, the system further comprising a scanner communicatively coupled to the computer such that the digital data structure is readable by the scanner.

Independent claims

Claim 1

A system for controlling multiple devices, said system comprising: a physiological sensor associated with a body of a subject and configured to sense one or more physiological characteristics of said subject and generate a digital physiological signal indicative of an instantaneous physiological state of said subject; a first device configured for bi-directional wireless communication positioned proximate to said subject and comprising a first memory circuit and a first processor, wherein said first device is configured to generate a first signal indicative of an operating state of said first device, and wherein said operating state comprising one of a performing state and a non-performing state of said first device; a second device configured for bi-directional wireless communication positioned proximate to said subject and comprising a second memory circuit and a second processor, wherein said second device is configured to generate a second signal indicative of an operating state of said second device, wherein said operating state comprising one of a performing state and a non-performing state of said second device, and wherein said first device and said second device are configured to perform one of a therapeutic, diagnostic, and a medication delivery task on said subject in accordance with computer-enabled instructions; a computer with telemetry circuitry for communicating with said physiological sensor, said first device, and said second device; and a remote-control device positioned apart from said physiological sensor, said first device, and said second device, wherein said remote-control device comprising: a digital records repository comprising a memory circuit and a processing unit for storing dynamically updating computer executable files aggregated from a plurality of changing private networks wherein said computer executable files contain dynamically updating digitally recorded information indicative of a set of changing subject attributes and respective changing reference values associated with said subject; an electronic record (ER) client configured to make a wireless connection with each of said private networks and configured to query an ER database associated with each of said private networks for electronic records residing within said private networks; a server machine configured for communicating with said physiological sensor, said first device, and said second device either directly or through said computer, wherein said server machine is configured for receiving said digital physiological signal indicative of said instantaneous physiological state of said subject and sending programmable operational parameters to said first device and said second device in response to a request for service from said computer and based on said instantaneous physiological state such that said operating parameters decides operating characteristics of said first device and operating characteristics of said second device and said operating characteristics of said first device and said operating characteristics of said second device are interdependent through a priority and interdependence relationship, wherein at least one of said physiological sensor, said first device, said second device, and said computer transforms said received operating parameters into a digital data structure readable by a scanner; and an identity validation device to verify an identity of said first device and said second device and associate a subject identifier uniquely representing said subject with said first device and said second device based on information contained within said physiological signal such that said operating parameters are calculated based on one or more of said reference values associated with said subject having said unique subject identifier as identified based on said physiological signal.

Claim 14

A multi-device system comprising: a first medical device configured for bi-directional wireless communication positioned proximate to a subject and comprising a first memory circuit and a first processor, wherein said first medical device is configured to generate a first signal indicative of an operating state of said first medical device, and wherein said operating state comprising one of a performing state and a non-performing state of said first medical device; and a second medical device configured for bi-directional wireless communication positioned proximate to said subject and comprising a second memory circuit and a second processor, wherein said second medical device is configured to generate a second signal indicative of an operating state of said second medical device, and wherein said operating state comprising one of a performing state and a non-performing state of said second medical device, wherein each of said first medical device and said second medical device comprising: an integrated gateway device configured to have a multiple interface unit comprising data interface units configured to send medical operation measurements in conformity with one or more operational parameters received via any of a wired and wireless communication network; a medical device housing to contain device accessories and circuitry; one or more of a therapeutic delivery device, a medication delivery device, and a diagnosis device physically contained within said medical device housing and configured to perform one of a therapeutic, diagnostic, and a medication delivery task; an identification module to contain digitally stored information indicative of device identifier and configured to be transmitted to other devices upon request for device identification; and a computer with telemetry circuitry for communicating with a physiological sensor, said first device, and said second device, wherein said computer configured to: receive a physiological signal from said associated physiological sensor configured for a subject; transmit a subject identifier, a first medical device identifier associated with said first medical device, and a second medical device identifier associated with said second medical device along with a service request to a remote-control device positioned apart from said physiological sensor, and wherein said remote-control device is configured to fulfill said service request based on information contained in a plurality of dynamically updating computer executable files from a plurality of digital data sources and stored in an EMR system configured within said remote-control device; and receive said one or more operational parameters from said remote-control device in response to a service request from said computer and based on an instantaneous physiological state as identified from said physiological signal such that said one or more operating parameters decides operating characteristics of said first medical device and operating characteristics of said second medical device, wherein said operating characteristics of said first medical device and said operating characteristics of said second medical device are interdependent through a priority and interdependence relationship.

All 20 claims

A system for controlling multiple devices, said system comprising: a physiological sensor associated with a body of a subject and configured to sense one or more physiological characteristics of said subject and generate a digital physiological signal indicative of an instantaneous physiological state of said subject; a first device configured for bi-directional wireless communication positioned proximate to said subject and comprising a first memory circuit and a first processor, wherein said first device is configured to generate a first signal indicative of an operating state of said first device, and wherein said operating state comprising one of a performing state and a non-performing state of said first device; a second device configured for bi-directional wireless communication positioned proximate to said subject and comprising a second memory circuit and a second processor, wherein said second device is configured to generate a second signal indicative of an operating state of said second device, wherein said operating state comprising one of a performing state and a non-performing state of said second device, and wherein said first device and said second device are configured to perform one of a therapeutic, diagnostic, and a medication delivery task on said subject in accordance with computer-enabled instructions; a computer with telemetry circuitry for communicating with said physiological sensor, said first device, and said second device; and a remote-control device positioned apart from said physiological sensor, said first device, and said second device, wherein said remote-control device comprising: a digital records repository comprising a memory circuit and a processing unit for storing dynamically updating computer executable files aggregated from a plurality of changing private networks wherein said computer executable files contain dynamically updating digitally recorded information indicative of a set of changing subject attributes and respective changing reference values associated with said subject; an electronic record (ER) client configured to make a wireless connection with each of said private networks and configured to query an ER database associated with each of said private networks for electronic records residing within said private networks; a server machine configured for communicating with said physiological sensor, said first device, and said second device either directly or through said computer, wherein said server machine is configured for receiving said digital physiological signal indicative of said instantaneous physiological state of said subject and sending programmable operational parameters to said first device and said second device in response to a request for service from said computer and based on said instantaneous physiological state such that said operating parameters decides operating characteristics of said first device and operating characteristics of said second device and said operating characteristics of said first device and said operating characteristics of said second device are interdependent through a priority and interdependence relationship, wherein at least one of said physiological sensor, said first device, said second device, and said computer transforms said received operating parameters into a digital data structure readable by a scanner; and an identity validation device to verify an identity of said first device and said second device and associate a subject identifier uniquely representing said subject with said first device and said second device based on information contained within said physiological signal such that said operating parameters are calculated based on one or more of said reference values associated with said subject having said unique subject identifier as identified based on said physiological signal.
The system of claim 1 , wherein said physiological sensor is implanted within said body of said subject subcutaneously.
The system of claim 1 , wherein said physiological sensor is associated with said subject as an external device.
The system of claim 1 , wherein said physiological sensor is configured for said subject such that said digital physiological signal contains said subject identifier along with an information indicative of said instantaneous physiological state of said subject.
The system of claim 4 , wherein said remote-control device is configured to associate said subject identifier with said computer executable files stored in said digital records repository to retrieve said reference values associated with said subject and generate an output indicative of said operational parameters of said first device and said second device based on said physiological signal and said retrieved reference values associated with said subject.
The system of claim 5 , wherein said operational parameters comprise any of: changing an operating state of said first device only for a first period of time; changing an operating state of said second device only for a second period of time; changing an operating state of both said first device and said second device for a third period of time; and connecting a third device different from said first device and said second device by associating an operating state with said third device in association with said subject for a fourth period of time, wherein each of said first device, said second device, and said third device are uniquely identified by device identifiers such that said digital records repository stores said digital identifiers in a device manager in association with said subject identifier.
The system of claim 6 , wherein any of said server machine and said computer further comprise a switch matrix configured to cause switching of said operating state of said one or more of said first device, second device, and said third device upon receipt of said operational parameters from said remote-control device in accordance with said priority and interdependence relationships.
The system of claim 7 , wherein said remote-control device further comprises a time detection circuit configured to monitor said first period of time, second period of time, third period of time, and said fourth period of time.
The system of claim 8 , further comprising a device state detection circuit coupled to said time detection circuit and configured to identify an operating state of said first device, second device, and said third device after completion of said first period of time, said second period of time, said third period of time, and said fourth period of time.
The system of claim 9 , further comprising a fault detection circuit configured to generate a signal indicative of a fault when said device state detection circuit does not detect a change in operating states of either of said first device, second device, or said third device in accordance with said operational parameters transmitted by said remote-control device.
The system of claim 1 , wherein said first device comprises a ventilator and said second device comprises an X-ray machine such that said remote-control device causes said ventilator to perform a first action upon receipt and said X-ray machine to perform a second action upon receipt of said operational parameters.
The system of claim 1 , wherein said remote-control device comprises an electronic medical record (EMR) system configured to house a plurality of digital records associated with a plurality of subjects including said subject in the form of a plurality of digital files including said computer executable files associated with said subject, wherein said EMR system comprising: said digital records repository; said electronic record (ER) client; a mobile point of care system to capture subject-associated digital data at a point of care wherein said point of care system is communicatively connected with said electronic record (ER) client so as to transmit said electronic records captured by said mobile point of care system from said private networks to said server machine; a data interface, in communication with said mobile point of care system, to facilitate transmission of said electronic records to said server machine; and a web-based interactive graphical user interface for allowing said subject to enter said digital records manually from a distant location.
The system of claim 1 , wherein said digital data structure comprises a QR (quick response) code.
A multi-device system comprising: a first medical device configured for bi-directional wireless communication positioned proximate to a subject and comprising a first memory circuit and a first processor, wherein said first medical device is configured to generate a first signal indicative of an operating state of said first medical device, and wherein said operating state comprising one of a performing state and a non-performing state of said first medical device; and a second medical device configured for bi-directional wireless communication positioned proximate to said subject and comprising a second memory circuit and a second processor, wherein said second medical device is configured to generate a second signal indicative of an operating state of said second medical device, and wherein said operating state comprising one of a performing state and a non-performing state of said second medical device, wherein each of said first medical device and said second medical device comprising: an integrated gateway device configured to have a multiple interface unit comprising data interface units configured to send medical operation measurements in conformity with one or more operational parameters received via any of a wired and wireless communication network; a medical device housing to contain device accessories and circuitry; one or more of a therapeutic delivery device, a medication delivery device, and a diagnosis device physically contained within said medical device housing and configured to perform one of a therapeutic, diagnostic, and a medication delivery task; an identification module to contain digitally stored information indicative of device identifier and configured to be transmitted to other devices upon request for device identification; and a computer with telemetry circuitry for communicating with a physiological sensor, said first device, and said second device, wherein said computer configured to: receive a physiological signal from said associated physiological sensor configured for a subject; transmit a subject identifier, a first medical device identifier associated with said first medical device, and a second medical device identifier associated with said second medical device along with a service request to a remote-control device positioned apart from said physiological sensor, and wherein said remote-control device is configured to fulfill said service request based on information contained in a plurality of dynamically updating computer executable files from a plurality of digital data sources and stored in an EMR system configured within said remote-control device; and receive said one or more operational parameters from said remote-control device in response to a service request from said computer and based on an instantaneous physiological state as identified from said physiological signal such that said one or more operating parameters decides operating characteristics of said first medical device and operating characteristics of said second medical device, wherein said operating characteristics of said first medical device and said operating characteristics of said second medical device are interdependent through a priority and interdependence relationship.
The system of claim 14 , wherein said first medical device comprises a medical imaging machine for imaging of a target including a tissue or a bone structure within a body of a subject, said medical imaging machine comprising: a rotatable drive shaft; an imaging device supported on said rotatable drive shaft, said imaging device adapted to transmit energy toward said target; a position adjustment mechanism coupling with said rotatable shaft to allow adjustment of said rotatable drive shaft in order to focus transmission of said energy at said target; said integrated gateway device; and said identification module.
The system of claim 15 , wherein said energy comprises X-rays and said imaging machine comprises an X-Ray machine.
The system of claim 14 , wherein said second medical device comprises a life support system comprising: an oxygen source that includes a tank of pressurized gas; one or more control valves disposed over a channel connecting said oxygen source and said subject to allow said oxygen to flow from said tank to a laryngeal mask in a first state and to allow gas expelled from said subject to flow from said laryngeal mask to said atmosphere in a second state while preventing said oxygen from flowing from said oxygen source in a second state; said laryngeal mask disposed downstream from said inspiration control valve, said laryngeal mask configured to form an air seal with said subject's respiratory tract such that said oxygen flows from said oxygen source to said lungs of said subject; a timer for synchronizing actuation of said one or more control valves based on said operational parameters received from said remote-control device containing said EMR system; said integrated gateway device; and said identification module.
The system of claim 17 , wherein said life support system comprises a ventilator.
The system of claim 14 , wherein each of said first medical device and said second medical device comprising a respective (Global Positioning System) GPS-based device such that said GPS-based device is configured to detect geo-locations of said respective first medical device and said second medical device, wherein said remote-control device receives said detected geo-locations of said first medical device and said second medical device, and said remote-control device automatically correlates said subject identifier for said subject associated with said first medical device and said second medical device and initiates functioning in context of said subject as and when said EMR system is proximate to said subject associated with said first medical device and said second medical device.
The system of claim 14 , wherein said computer is configured to transform said operating parameters received from said remote-control device into a digital data structure, said system further comprising a scanner communicatively coupled to said computer such that said digital data structure is readable by said scanner.

Related patents

Continuation-in-part of US20130204145A1 System And Method For Managing Devices And Data In A Medical Environment
Continued by US11006920B2 System For Controlling Medical Devices

Every patent of the System For Controlling Medical Devices family: US20130204145A1, US11006920B2.

Explained in plain language and in context

Patent summaries

Controlling Medical Devices for Patient Care and Data Management
Discover how efficiency and patient care converge with real-time health monitoring and advanced medical device management.

Licence or acquire US10638999B2

Available for an exclusive or non-exclusive licence, field-of-use licences included, or for acquisition. Terms on inquiry. Ask about the whole family or any one of its patents.

Ask about a licence Ask about acquiring it

Or write to hello+ip@intellectualfrontiers.com. A person answers.

Questions

Is US10638999B2 available for licensing?

Yes. Intellectual Frontiers offers US10638999B2, with the rest of the System For Controlling Medical Devices family, for an exclusive or non-exclusive licence, field-of-use licences included. Terms are agreed on inquiry: write to hello+ip@intellectualfrontiers.com.

Can US10638999B2 be bought?

Yes. US10638999B2 is available for acquisition, alone or with its family. Terms are agreed on inquiry: write to hello+ip@intellectualfrontiers.com.

What is the status of US10638999B2?

Patented Case as of 15 April 2020, according to the USPTO record read 27 September 2026.

When does US10638999B2 expire?

25 December 2034. An estimate from Google Patents, read 9 October 2026. Fees, terminal disclaimers and later events can change it, and it is not legal advice.

What does US10638999B2 cover?

Which patents are related to US10638999B2?

It is part of the System For Controlling Medical Devices family, with US20130204145A1, US11006920B2.

Who invented US10638999B2 and who holds it?

Shahid N. Shah is the inventor. Intellectual Frontiers LLC holds the rights.
